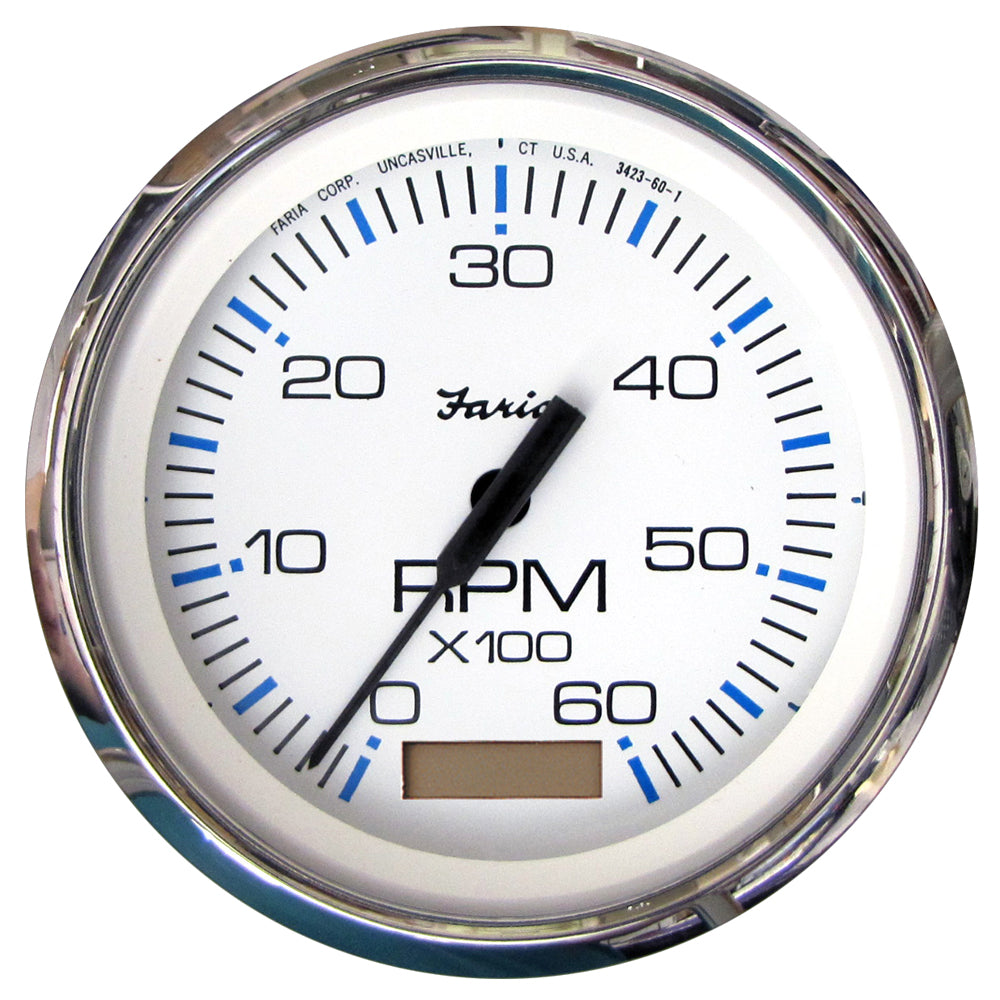

Faria Beede Instruments Chesapeake White SS 4-Inch Tachometer with Hourmeter for Inboard Gas Engines - 6000 RPM

Chesapeake White SS 4" Tachometer with Hourmeter - 6000 RPM (Gas) (Inboard)

Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.

Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.

By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.

4" - Hole size: 3.375" (85mm)

Specifications:

• Anti-scratch glass lens
• Perimeter lighted back light
• 12 VDC negative ground
• Can be adapted for 24 VDC systems

Technical Specifications:

• 7 character LCD display
• 0-999999.9 Hours
• Updates in .1 increments

Factory P/N TC9128

*Sold as an Individual

**Gauge Cover not Included

The Faria Beede Instruments Chesapeake White SS 4-inch tachometer is designed for inboard gasoline engines, combining style and precision for marine and industrial applications. Its perimeter-lighted white dial features stylish blue and white graphics, complemented by a polished stainless steel bezel that enhances durability and aesthetic appeal. The domed glass lens provides protection against scratches and environmental elements, ensuring long-lasting clarity and performance. This tachometer operates by counting pulses generated by the ignition system, alternator, or magnetic pickup sender, making it compatible with a variety of engine setups. Connecting to +12VDC, Ground, and the appropriate signal source, it is easily adaptable by selecting the correct pulse setting via the switch on the back. The 4-inch diameter housing requires a 3.375-inch mounting hole, making installation straightforward. The device includes an anti-scratch glass lens, perimeter backlighting for visibility in low-light conditions, and supports 12 VDC negative ground systems, with options for adaptation to 24 VDC. The tachometer features a 7-character LCD display, capable of showing engine hours from 0 to 999,999.9, with updates in 0.1-hour increments for precise monitoring. Its specifications make it suitable for demanding environments where durability and accuracy are essential. This model, factory part number TC9128, is sold individually; the gauge cover is not included. Please note that this product may not be returned to the original point of purchase, and users should contact the manufacturer directly for any issues or concerns. Whether for marine applications, industrial equipment, or custom engine setups, the Chesapeake White SS tachometer offers reliable performance with a sleek design, ensuring your engine monitoring needs are met with precision and style.

Features:

• Perimeter-lighted white dial with blue and white graphics for clear visibility

• Polished stainless steel bezel enhances durability and style

• Domed glass lens provides scratch resistance and clarity

• Electronic pulse counting for accurate RPM measurement

• Compatible with +12VDC systems with optional 24VDC adaptation

• Includes a 7-character LCD display for engine hours tracking

• Supports 0-999,999.9 hours with 0.1-hour update increments

• Requires 3.375-inch mounting hole for installation

• Anti-scratch glass lens for long-term durability

• Backlit display improves visibility in low-light conditions
