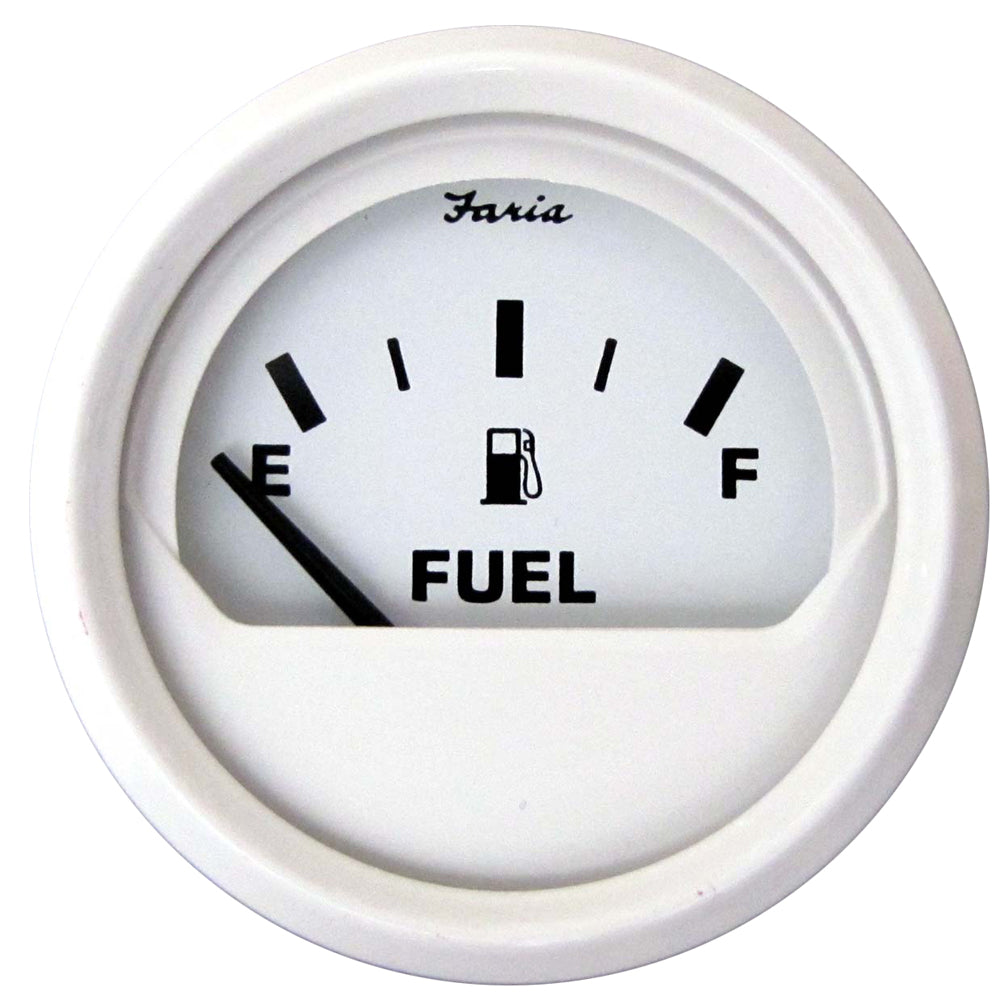

Faria Beede Instruments Dress White 2-Inch Fuel Level Gauge (E-1/2-F)

Dress White 2" Fuel Level Gauge (E-1/2-F)

Perimeter-lighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens.

Fuel Level gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...

As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.

2" - Hole Size: 2.0625" (53mm)

Specifications:

• 240 to 33 OHM
• Anti-scratch glass lens
• 12 VDC negative ground
• Can be adapted for 24 VDC systems

Factory P/N GP9389

*Sold as an Individual

**Gauge Cover not Included

The Faria Beede Instruments Dress White 2-Inch Fuel Level Gauge offers precise fuel monitoring with a clear and stylish design. Featuring a perimeter-lighted white dial with bold black graphics, this gauge ensures easy readability even in low-light conditions. The white aluminum bezel and flat glass lens enhance durability and aesthetic appeal, making it suitable for a variety of marine and automotive applications. The black contoured pointer provides accurate indication of fuel levels, allowing operators to monitor their fuel consumption effectively. This gauge operates by sending a low amperage current through its meter to ground via a variable resistance sending unit, which adjusts based on pressure, temperature, or other factors, providing a reliable measurement of fuel quantity. The gauge is designed with a 2.0625-inch (53mm) hole size for easy installation. It supports 12 VDC negative ground systems and can be adapted for 24 VDC systems, providing versatility across different vehicle and vessel electrical setups. The specifications include a resistance range from 240 to 33 ohms, ensuring compatibility with various sending units and system configurations. The anti-scratch glass lens preserves clarity and durability over time, maintaining a professional appearance. Please note that the gauge cover is sold separately. This product is sold individually and may not be returned to the original point of purchase; direct contact with the manufacturer is recommended for any issues or concerns. The Faria Dress White Fuel Level Gauge combines functionality, durability, and style, making it a dependable choice for monitoring fuel levels in demanding environments.

Features:

• Perimeter-lighted white dial with bold black graphics for clear visibility

• White aluminum bezel and flat glass lens for durability and style

• Contoured black pointer for accurate fuel level indication

• Operates via low amperage current through variable resistance sending units

• Supports 12 VDC negative ground systems, adaptable for 24 VDC

• Resistance range from 240 to 33 ohms for compatibility with various systems

• Anti-scratch glass lens maintains clarity over time

• Designed for easy installation with a 2.0625-inch (53mm) hole size
