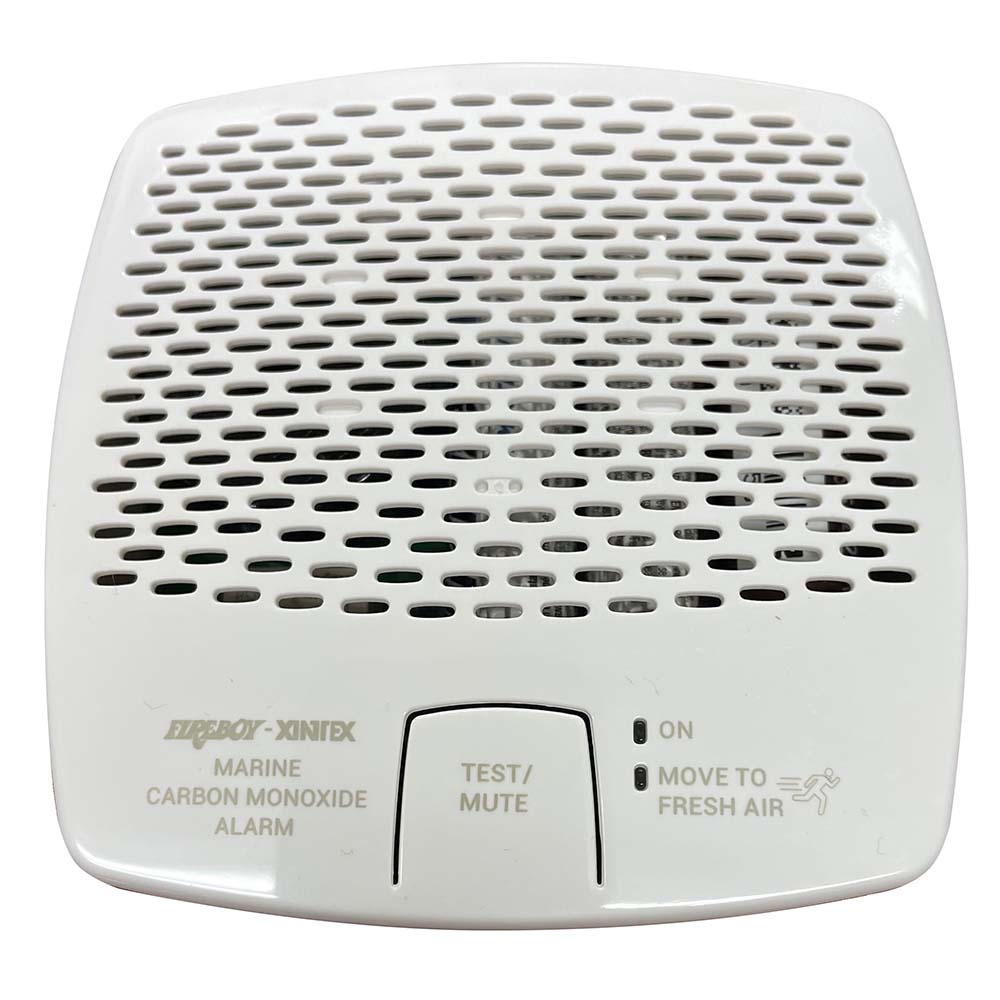

Fireboy-Xintex CMD6-MD-R Carbon Monoxide Alarm for 12/24V DC Systems

CO Alarm 12/24V DC - White

A Carbon Monoxide (CO) detector should be installed in each accommodation space. Small crafts or RV's with an open design may require only one (1) detector for adequate protection. If two (2) or more sleeping areas or spaces are partitioned, then one (1) detector should be installed in each of the spaces.

The Fireboy-Xintex CMD6-M Series CO alarm uses a sensor operating with a microprocessor to measure Carbon Monoxide (CO) levels. Using a Time Weighted Average (TWA) process, it monitors CO concentration, temperature and time to calculate levels of Carboxyhemoglobin (COHb). COHb is the degree to which the oxygen carrying capacity of the blood is impeded by the union of carbon monoxide to the hemoglobin and as expressed as a percentage. The human body absorbs CO easier than oxygen and COHb is the ratio absorbed carbon monoxide to oxygen in bloodstream.

The CMD6-M alarm calculates the COHb as function of time and determines the appropriate alarm response.

*Long sensor life approximately 7 year end-of-life (EOL)

Features:

• Microprocessor controlled
• Compact design for inconspicuous protection
• Time-weighted average CO measurement process constantly monitors all CO levels
• Highly resistant to most chemicals, solvents cleaners
• CMD6-MD 12/24V DC model uses boat power and has permanent internal backup Lithium-metal batteries

Technical Specifications:

• Power Usage - 4 mA
• Alarm Point - 10% COHb
• Alarm Horn - 85 dBA
• Dimensions - .5" x 3.5" x 1.21" (8.9 x 8.9 x 3.1 cm)
• Interconnect Functionality - No

*Sold as an Individual

The Fireboy-Xintex CMD6-MD-R Carbon Monoxide (CO) alarm is designed for reliable detection of CO levels in various onboard environments. Ideal for boats, RVs, and other mobile applications, this compact alarm features a microprocessor-controlled sensor that continuously monitors carbon monoxide concentrations using a time-weighted average process. This technology ensures accurate detection by calculating COHb levels, which reflect the blood's oxygen-carrying capacity impairment caused by CO exposure. The alarm also measures temperature and time, providing comprehensive safety monitoring in a small, unobtrusive package.

Built to last, the CMD6-MD-R has a sensor lifespan of approximately 7 years, end-of-life. Its compact design allows for easy installation in confined spaces without sacrificing protection. The device is highly resistant to chemicals, solvents, and cleaners, making it suitable for the challenging environments often found on boats and recreational vehicles. The alarm features a loud 85 dBA horn to alert occupants promptly in case of elevated CO levels, with a typical power consumption of just 4 milliamps, ensuring minimal drain on the power supply.

Designed for 12V or 24V DC systems, the CMD6-MD-R model includes internal lithium-metal batteries for permanent backup, providing continuous protection even during power fluctuations or outages. The alarm's simple interconnection functionality makes it suitable for multiple-unit setups if needed, although it is sold as a standalone device. The unit's dimensions are compact, measuring approximately 0.5 inches by 3.5 inches by 1.21 inches, making it easy to fit in tight spaces while maintaining effective coverage. An included manual provides detailed installation and maintenance instructions, supporting safe and reliable operation over its lifespan.

Features:

• Microprocessor-controlled sensor for accurate CO detection

• Compact and inconspicuous design for easy installation

• Utilizes time-weighted average process to monitor all CO levels

• Highly resistant to chemicals, solvents, and cleaners

• Built-in permanent lithium-metal batteries for backup power

• Long sensor life of approximately 7 years

• Alarm horn emits at 85 dBA for clear warning

• Suitable for 12V and 24V DC power systems
