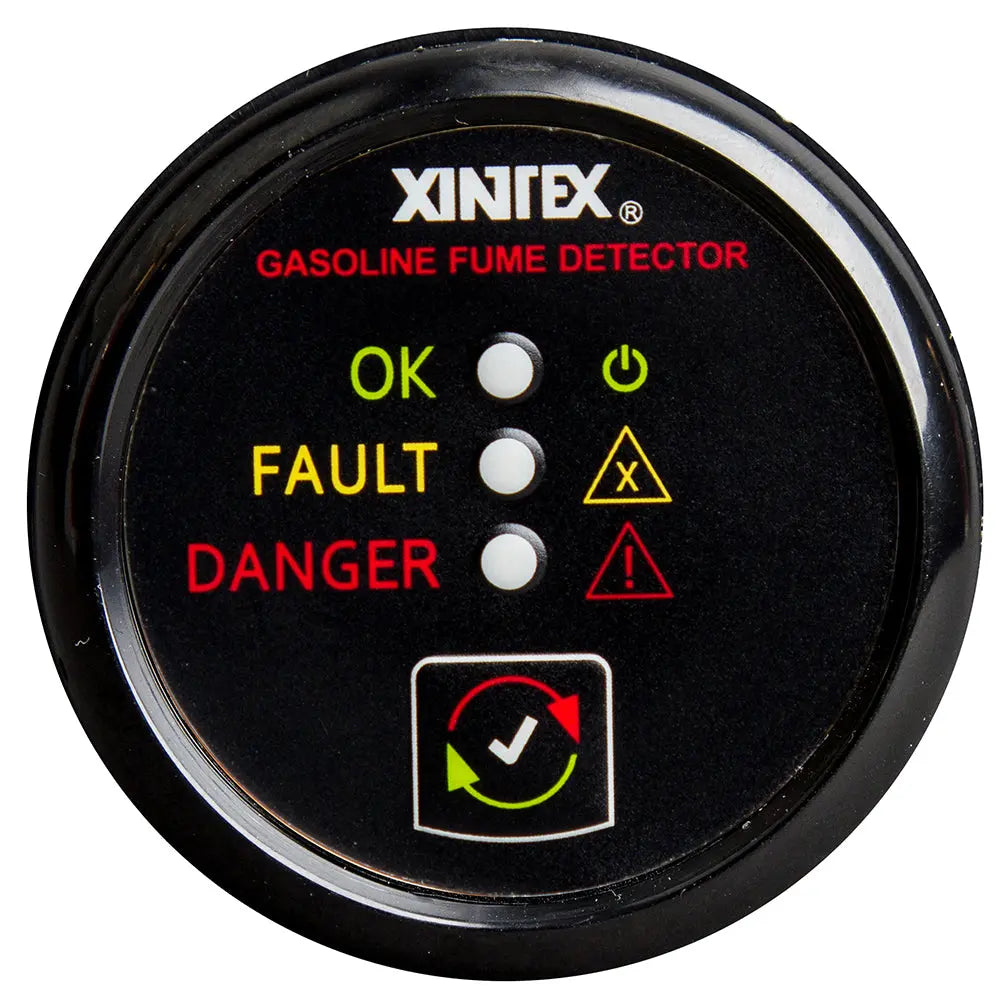

Fireboy-Xintex G-1B-R Gasoline Fume Detector with Black Bezel for 12/24V Systems

Gasoline Fume Detector - Black Bezel - 12/24V

The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.

Features:

• Simple Installation
• Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
• Monitors one (1) single area

Technical Specifications:

• Operating Temperature: -40 to 185F (-40 to 85C)
• Current Draw Nominal - 55mA
• Current Draw Maximum - 95mA
• Operating Voltage - 9 to 30V DC
• Alarm Horn - 68 dB
• Display Style - Round with Black Bezel
• Display Dimensions - 2-3/16" (5.6 cm) round
• Cutout Dimension - 2-1/16" (5.2 cm) round hole

In the Box:

• Fume Detector
• Fuel sensors x one (1)
• 20' Extension Cable x one (1)
• Instruction manual

*Sold as an Individual

The Fireboy-Xintex G-1B-R Gasoline Fume Detector is designed to provide reliable monitoring of gasoline vapors in engine compartments, fuel storage areas, or other locations where gasoline fumes may pose a hazard. Featuring a compact round display with a black bezel, this detector is easy to install and operate, making it suitable for various vehicle and industrial applications. Its simple installation process ensures quick setup, while the integrated audible alarm (68 dB) and visual indicator promptly alert operators to the presence of gasoline fumes at or above the Lower Explosive Level (LEL). This ensures safety by enabling immediate action to prevent potential fires or explosions. The detector monitors a single area, making it ideal for targeted vapor detection. It operates within a temperature range from -40°F to 185°F (-40°C to 85°C), ensuring dependable performance in harsh environments. The device consumes a nominal current of 55mA, with a maximum of 95mA, and is compatible with a DC voltage supply of 9 to 30V, making it versatile for various power sources. The round display measures approximately 2-3/16 inches in diameter, fitting neatly into standard cutouts of 2-1/16 inches. The package includes the main fume detector, one fuel sensor, a 20-foot extension cable for flexible placement, and an instruction manual to facilitate installation and setup. Ideal for use in automotive, industrial, and commercial settings, this detector provides essential safety monitoring for gasoline vapors, helping to mitigate risks associated with flammable fumes. For detailed installation and operation guidance, the included manual can be accessed online at the provided URL.

Features:

• Simple installation process for quick setup

• Audible alarm with 68 dB volume to alert of gasoline fumes

• Visual indicator with round black bezel display

• Monitors a single area for gasoline vapor presence

• Operates in a wide temperature range from -40°F to 185°F

• Compatible with 9 to 30V DC power sources

• Includes one fuel sensor and 20-foot extension cable

• Compact round design with standard cutout dimensions

• Reliable performance in harsh environments
