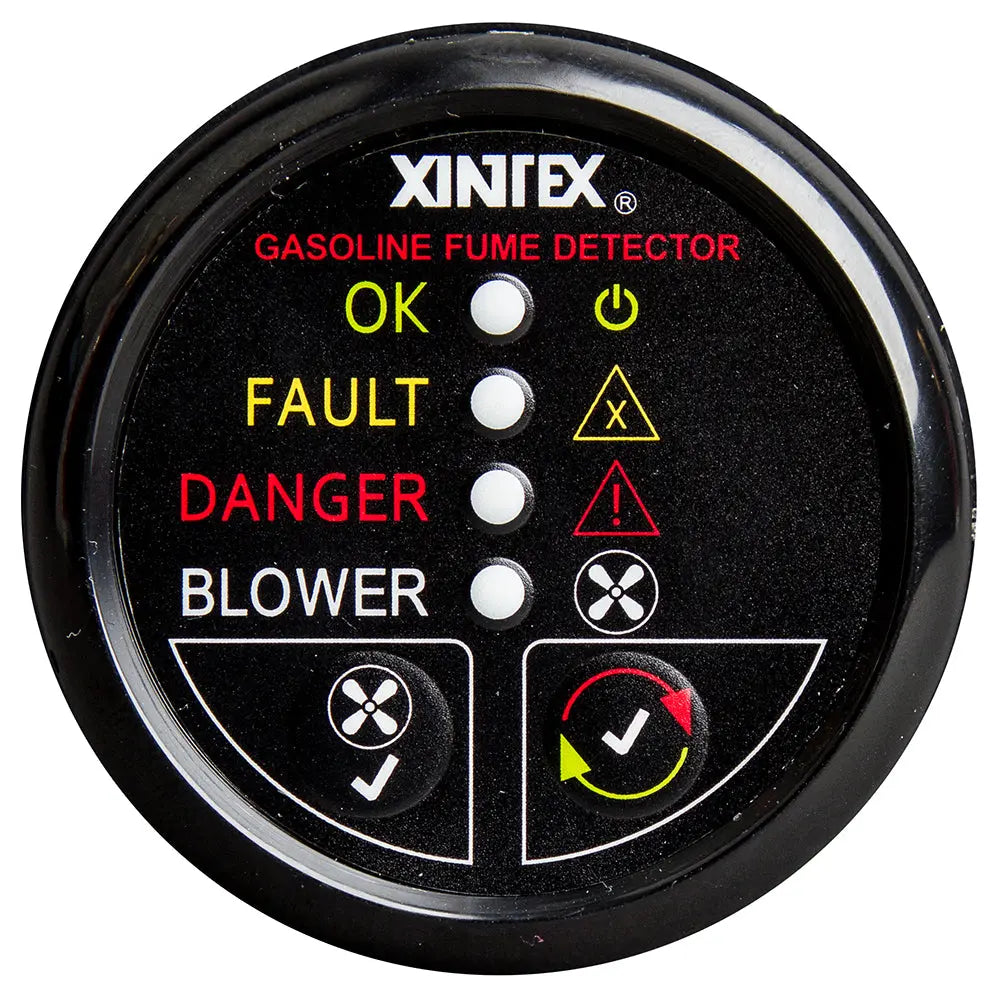

Fireboy-Xintex G-1BB-R Gasoline Fume Detector with Blower Control, 12V, Black Bezel

Gasoline Fume Detector w/Blower Control - Black Bezel - 12V

The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.

Complete system includes Blower Control Relay, easy installation and precise monitoring.

Features:

• Simple Installation
• Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
• Monitors one (1) single area
• Automatically activates bilge blower

Technical Specifications:

• Operating Temperature: -40 to 185F (-40 to 85C)
• Current Draw Nominal - 55mA
• Current Draw Maximum - 95mA
• Operating Voltage - 9 to 30V DC
• Alarm Horn - 68 dB
• Display Style - Round with Chrome Bezel
• Display Dimensions - 2-3/16" (5.6 cm) round
• Cutout Dimension - 2-1/16" (5.2 cm) round hole

In the Box:

• Fume Detector
• Fuel sensors x one (1)
• 20' Extension Cable x one (1)
• Blower Relay x one (1)
• Instruction manual

*Sold as an Individual

The Fireboy-Xintex G-1BB-R Gasoline Fume Detector is a reliable safety device designed to monitor gasoline fumes in engine compartments, fuel tank storage areas, and other enclosed spaces where gasoline vapors may accumulate. Its single-channel system provides precise detection of gasoline fumes, helping prevent potential hazards by alerting operators to dangerous vapor levels. The detector features a round, chrome bezel housing that seamlessly integrates into various vehicle or equipment dashboards, offering both functionality and aesthetic appeal. The complete system includes a blower control relay, a 20-foot extension cable, and fuel sensors, making installation straightforward and efficient for professional or do-it-yourself setups.

Equipped with audible and visual alarms, the G-1BB-R detects when the lower explosive level (LEL) of gasoline fumes is reached, prompting immediate action. The alarm horn emits at 68 decibels, ensuring clear notification without being overly intrusive. The system automatically activates a bilge blower to vent fumes, maintaining a safe environment and reducing the risk of fire or explosion. Designed to operate reliably across a wide temperature range from -40°F to 185°F, it is suitable for various harsh conditions typically found in automotive or industrial settings.

The detector operates on a DC voltage range of 9 to 30 volts, with a nominal current draw of only 55mA and a maximum of 95mA, making it energy-efficient and compatible with most power sources. The compact 2-3/16-inch round display allows easy integration into existing panels, with a cutout dimension of just over 2 inches. The system's components are durable and built to withstand demanding environments, ensuring long-lasting performance. For detailed installation instructions, troubleshooting, or maintenance, refer to the included owner's manual available online.

Overall, the Fireboy-Xintex G-1BB-R Gasoline Fume Detector provides critical safety monitoring for gasoline vapors, incorporating reliable detection technology, automatic ventilation activation, and user-friendly features to safeguard personnel and property effectively.

Features:

• Simple installation process for quick setup

• Audible alarm at 68 dB to alert of gasoline vapor presence

• Visual indicator for immediate status recognition

• Monitors one specific area for gasoline fumes

• Automatically activates bilge blower to vent fumes
