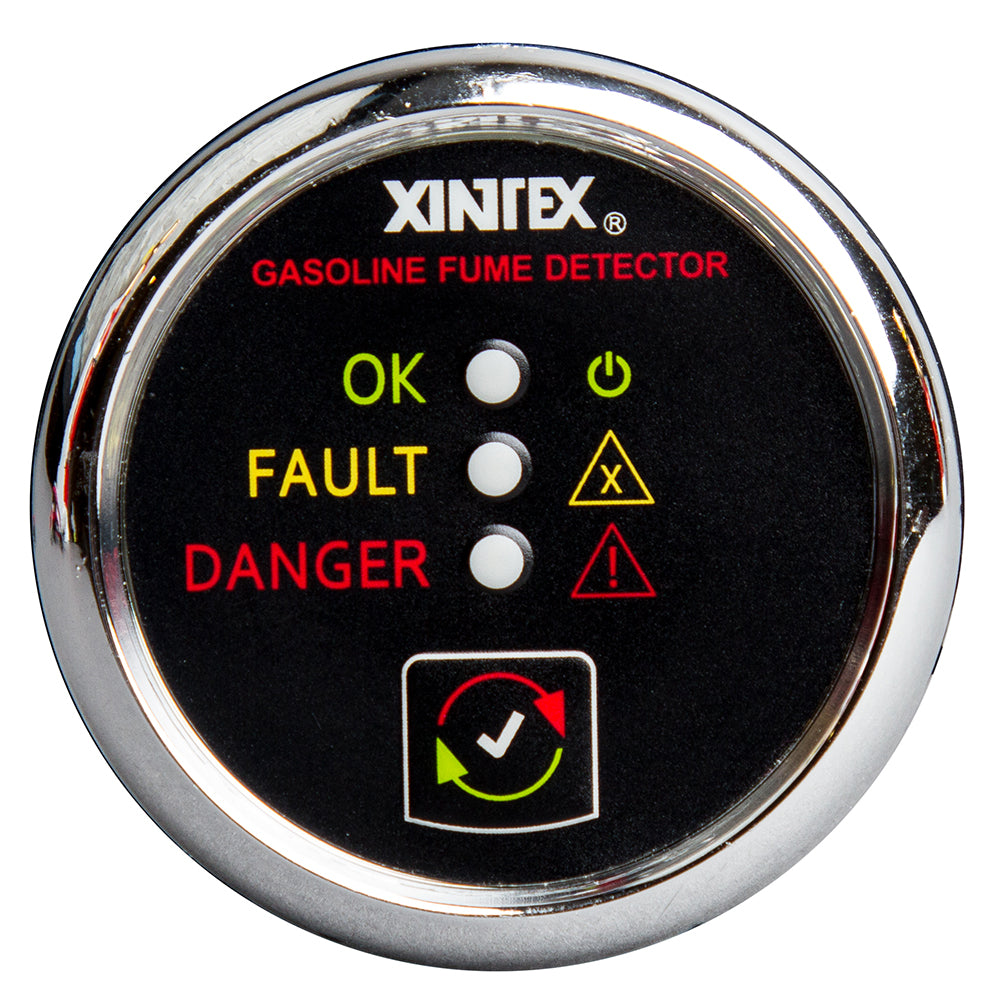

Fireboy-Xintex G-1C-R Gasoline Fume Detector with Chrome Bezel – 12V/24V DC Monitoring

Gasoline Fume Detector - Chrome Bezel - 12/24V

The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.

Features:

• Simple Installation
• Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
• Monitors one (1) single area

Technical Specifications:

• Operating Temperature: -40 to 185F (-40 to 85C)
• Current Draw Nominal - 55mA
• Current Draw Maximum - 95mA
• Operating Voltage - 9 to 30V DC
• Alarm Horn - 68 dB
• Display Style - Round with Chrome Bezel
• Display Dimensions - 2-3/16" (5.6 cm) round
• Cutout Dimension - 2-1/16" (5.2 cm) round hole

In the Box:

• Fume Detector
• Fuel sensors x one (1)
• 20' Extension Cable x one (1)
• Instruction manual

*Sold as an Individual

The Fireboy-Xintex G-1C-R Gasoline Fume Detector is an essential safety device designed to monitor gasoline fumes in various areas such as engine compartments and fuel storage zones. Featuring a sleek round design with a durable chrome bezel, this detector provides reliable detection of gasoline vapors, helping prevent potential fire hazards. Equipped with both audible and visual alarms, it alerts users promptly when the lower explosive level (LEL) is detected, ensuring safety measures can be enacted quickly. Its straightforward installation process makes it suitable for a variety of vehicle and equipment applications, especially where space is limited. The device operates efficiently within a wide temperature range, from -40°F to 185°F, and supports a voltage input of 9 to 30 volts DC, making it versatile for different electrical systems.

Features:

• Simple installation process for quick setup

• Audible alarm with 68 dB horn to alert presence of gasoline fumes

• Visual indicator integrated into the round display with chrome bezel

• Monitors a single area for gasoline vapor buildup

• Operates reliably across a broad temperature spectrum from -40°F to 185°F

• Low current draw of 55mA nominal, with a maximum of 95mA
