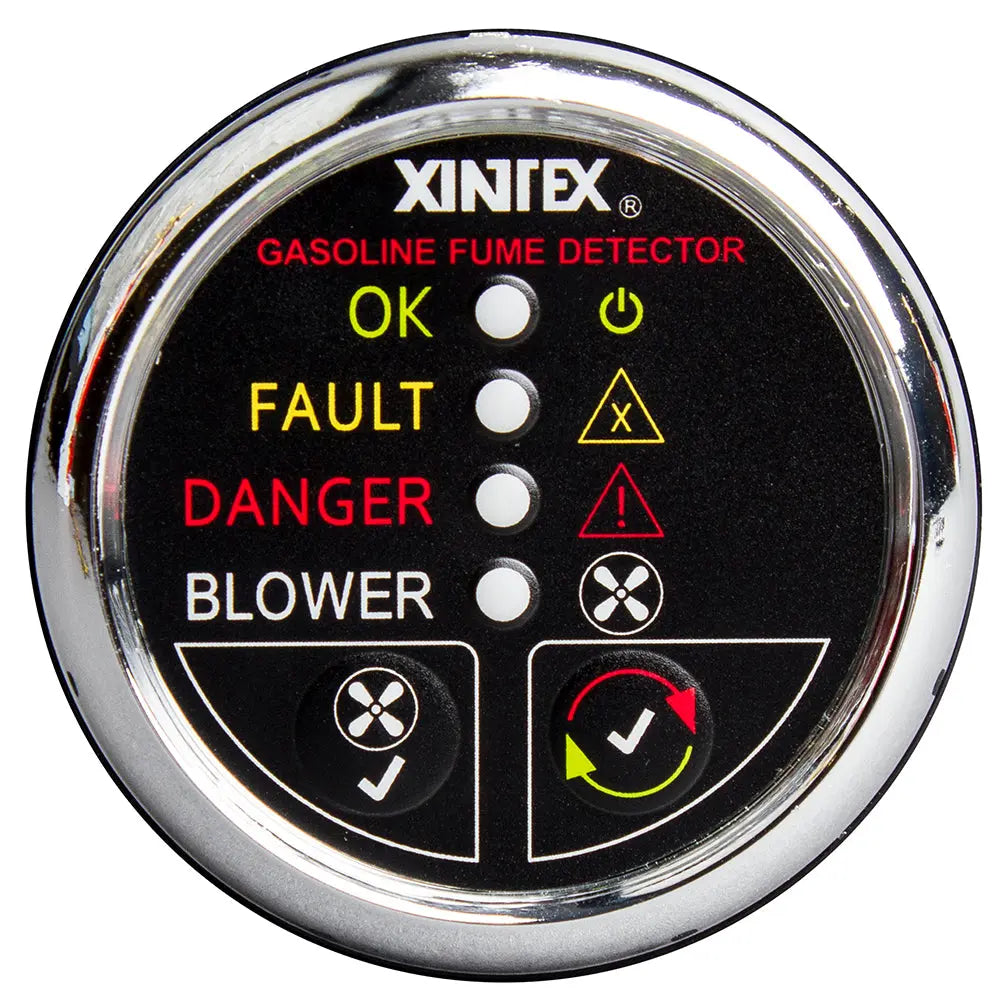

Fireboy-Xintex G-1CB-R Gasoline Fume Detector with Blower Control and Chrome Bezel, 12V DC

Gasoline Fume Detector w/Blower Control - Chrome Bezel - 12V

The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.

Complete system includes Blower Control Relay, easy installation and precise monitoring.

Features:

• Simple Installation
• Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
• Monitors one (1) single area
• Automatically activates bilge blower

Technical Specifications:

• Operating Temperature: -40 to 185F (-40 to 85C)
• Current Draw Nominal - 55mA
• Current Draw Maximum - 95mA
• Operating Voltage - 9 to 30V DC
• Alarm Horn - 68 dB
• Display Style - Round with Chrome Bezel
• Display Dimensions - 2-3/16" (5.6 cm) round
• Cutout Dimension - 2-1/16" (5.2 cm) round hole

In the Box:

• Fume Detector
• Fuel sensors x one (1)
• 20' Extension Cable x one (1)
• Blower Relay x one (1)
• Instruction manual

*Sold as an Individual

The Fireboy-Xintex G-1CB-R Gasoline Fume Detector is an advanced safety device designed to monitor gasoline fumes in engine compartments, fuel tank storage areas, and other zones where gasoline vapors may pose a risk. Its single-channel system provides precise detection of gasoline fumes, helping prevent dangerous conditions by alerting operators to the presence of explosive levels of fumes. The detector includes a reliable blower control relay that automatically activates a bilge blower to ventilate the area when fumes are detected, ensuring a safer environment in your vehicle or vessel. Easy to install, compact, and durable, this system is suitable for a wide range of applications and operating conditions, maintaining performance from -40°F to 185°F, and capable of operating on voltages from 9 to 30 volts DC. Its round display features a polished chrome bezel that offers a professional look, with a diameter of approximately 2-3/16 inches, fitting into a standard 2-1/16-inch cutout. The device emits a clear 68 dB alarm horn and provides both audible and visual alerts to indicate when the lower explosive level (LEL) threshold is reached or exceeded. The complete package includes the gasoline fume detector, a fuel sensor, a 20-foot extension cable, a blower relay, and an instruction manual for straightforward installation. Designed to monitor a single area, this detector is an essential safety component for marine, industrial, and automotive environments where gasoline fumes require diligent monitoring and control. Its robust construction and easy integration make it an excellent choice for safeguarding personnel and equipment from potential gasoline vapor hazards.

Features:

• Simple installation with included components and instructions

• Audible alarm: 68 dB to alert of gasoline fumes presence

• Visual indicator with round chrome bezel for clear status display

• Monitors a single area for gasoline vapor accumulation

• Automatically activates bilge or ventilation blower when fumes are detected

• Operates reliably within a wide temperature range from -40°F to 185°F

• Low power consumption with a maximum current draw of 95mA

• Suitable for 12V DC systems with easy wiring and setup
