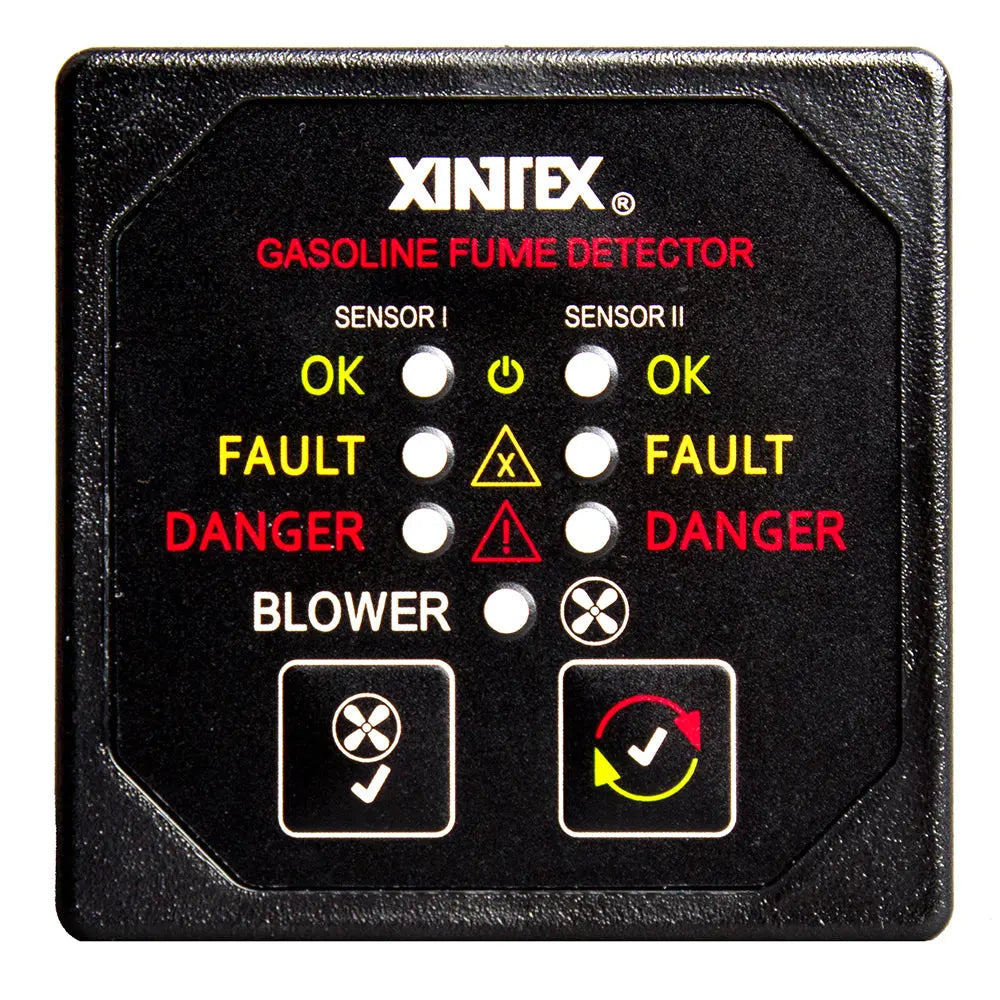

Fireboy-Xintex G-2BB-R Gasoline Fume Detector with Dual Channel and Blower Control – 12/24V

Gasoline Fume Detector with Dual Channel and Blower Control - 12/24V

The Dual Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.

Complete system includes Blower Control Relay, easy installation and precise monitoring.

Features:

• Simple Installation
• Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
• Monitors two (2) separate areas simultaneously
• Automatically activates bilge blower

Technical Specifications:

• Operating Temperature: -40 to 185F (-40 to 85C)
• Current Draw Nominal - 55mA
• Current Draw Maximum - 150mA
• Operating Voltage - 9 to 30V DC
• Alarm Horn - 68 dB
• Display Style - Square with Black Bezel
• Display Dimensions - 2-5/8" x 2-5/8" (6.7 x 6.7 cm)
• Cutout Dimension - 2-1/8" (5.4 cm) round hole

In the Box:

• Fume Detector
• Fuel sensors x two (2)
• 20' Extension Cable x two (2)
• Blower Relay x one (1)
• Instruction manual

*Sold as an Individual

The Fireboy-Xintex G-2BB-R gasoline fume detector is a reliable monitoring solution designed for engine compartments, fuel tank storage areas, and other spaces where gasoline fumes may pose a risk. Its dual-channel capability allows for simultaneous monitoring of two separate areas, providing comprehensive safety coverage. The system features an easy installation process, making it suitable for various applications, and includes a blower control relay that automatically activates a bilge blower when gasoline fumes are detected, helping to maintain a safe environment. The detector's audible alarm emits at 68 dB, accompanied by visual indicators, alerting personnel to the presence of hazardous fumes before they reach dangerous levels.

Features:

• Simple installation process for quick setup

• Audible and visual alarm indicators for immediate warning of explosive levels

• Monitors two separate zones simultaneously for comprehensive coverage

• Automatically activates bilge blower to ventilate fumes
