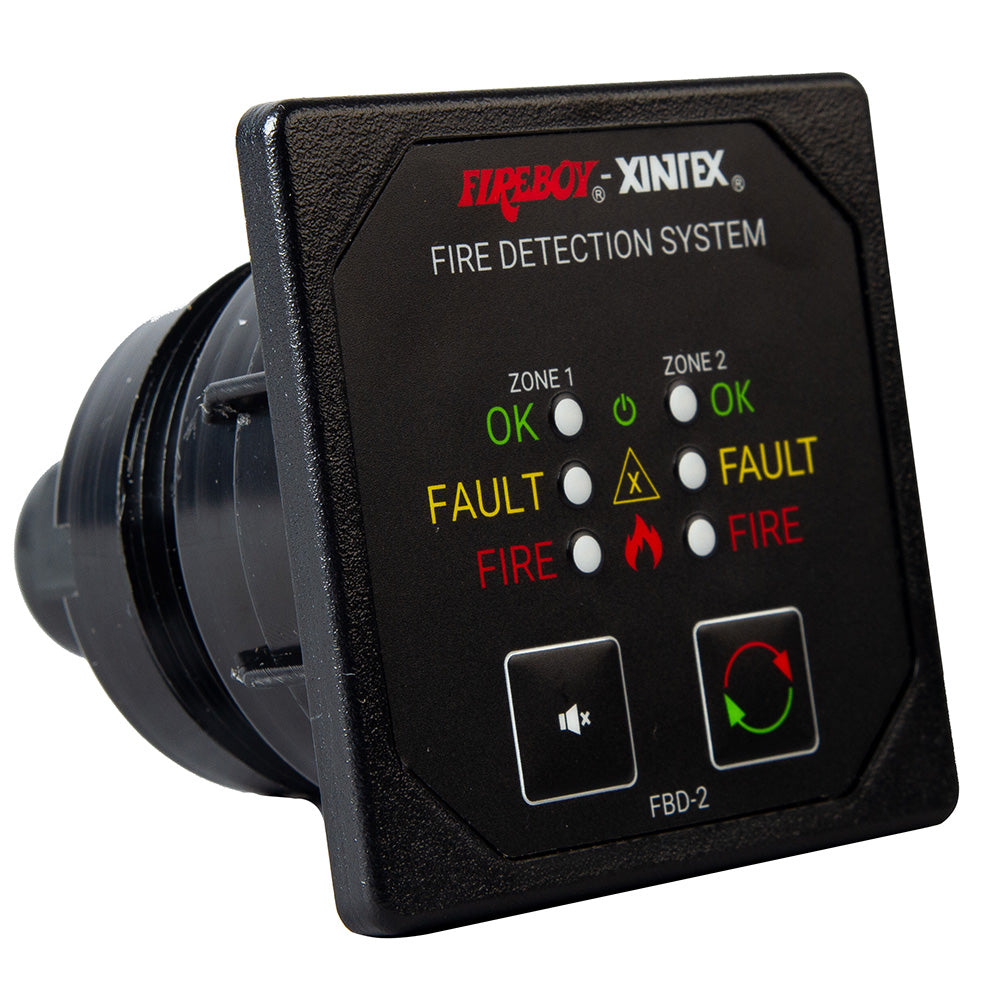

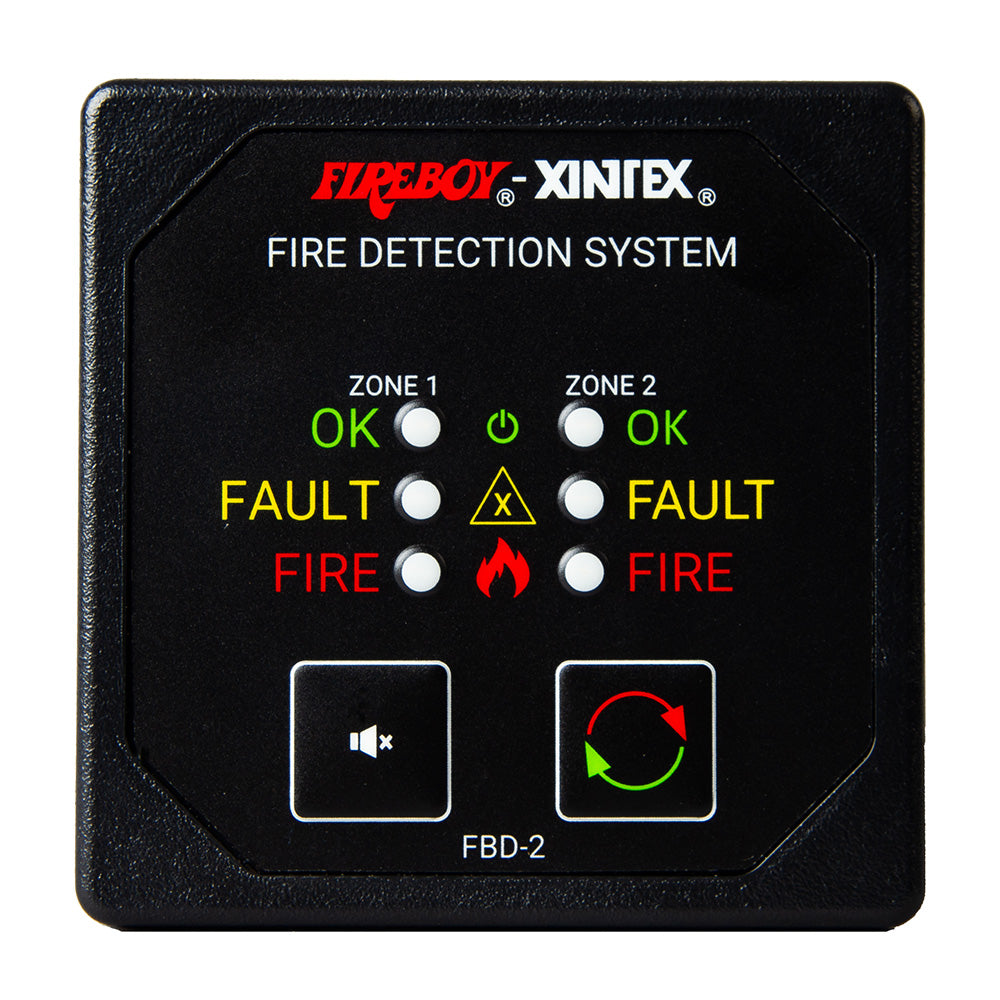

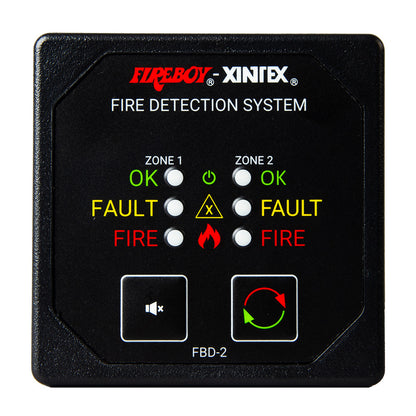

Fireboy-Xintex Two Zone Detection & Alarm Panel with 2-5/8" Display - 12/24V DC

Two Zone Detection Alarm Panel - 2-5/8" Display - 12/24V DC

Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)

Features:

• Visual and audible indications of a fire or fault
• Water resistant display
• Voltage and EMI protected
• Reverse polarity protected

Specifications:

• Supply Voltage: 9-32V DC
• Zone Loop Voltage: 24V DC (regardless of input voltage)
• Minimum Alarm Current: 15mA
• Maximum Current Per Zone: 400mA
• Maximum Sensors Per Zone: 8
• EOL Resistor: 5.6k
• Potential Free Transistor Output (Fault, Alarm): 50V max
• Relay Output (Buzzer): 2A

The Fireboy-Xintex FBD-2-R is a reliable two zone detection and alarm panel designed for comprehensive fire monitoring. Featuring a 2-5/8-inch display, this system provides clear visual and audible indications of fire or fault conditions, ensuring prompt response in emergency situations. Suitable for various applications, the panel supports connection of up to 14 smoke or heat detectors per zone, enabling extensive coverage with flexible configuration options. The system’s water-resistant display enhances durability in challenging environments, while its protection against voltage fluctuations and electromagnetic interference ensures stable operation. Built with reverse polarity protection, the Fireboy-Xintex alarm panel offers dependable performance and ease of installation for both commercial and residential fire safety setups.

Features:

• Visual and audible indications of a fire or fault

• Water-resistant display for durability in harsh environments

• Voltage and EMI protected for stable operation

• Reverse polarity protected to prevent damage
