FLIR M332 Single Payload Thermal Camera with 320 x 256 Detector and 24° x 18° HFoV

FLIR M332 Single Payload 30 Hz Thermal Camera No JCU 320 x 256 24D HFoV

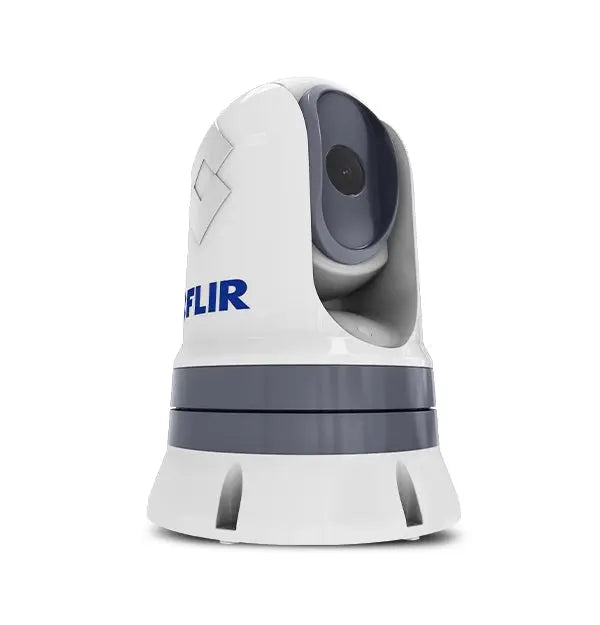

The FLIR M332 thermal camera combines rugged durability with advanced imaging technology, making it suitable for law enforcement, commercial, and recreational applications. Its all-weather design ensures reliable performance in challenging environments, while the high-performance VOx microbolometer detector provides clear thermal imagery in complete darkness, fog, or glare. Perfect for navigation or obstacle detection, the M332 offers exceptional situational awareness in diverse operational conditions. Its integrated gyro-stabilization system minimizes pitch, yaw, and heave effects, delivering stable, high-quality images even in rough seas or unstable platforms. Connectivity options include HD-SDI and network video outputs, facilitating seamless integration with various navigation and security systems. The camera's pan-and-tilt capabilities feature a full 360-degree continuous pan and 90-degree tilt, allowing comprehensive scene coverage. Designed with environmental resilience, it withstands heavy seas, high winds up to 115 MPH, and exposure to dust and salt mist, complying with IEC60945 and MIL-STD-810E standards. The thermal imaging module supports 8x continuous zoom, with a focal length of 9.1mm, providing detailed thermal views at 30 Hz refresh rate. Its fixed focus at 12 feet to infinity simplifies operation, ensuring consistent image clarity. The package includes a robust mounting base, cables, and fixings, enabling straightforward installation in demanding settings. Whether for maritime navigation, surveillance, or search and rescue, the FLIR M332 offers reliable, high-quality thermal imaging tailored for professional use.

Features:

• High-resolution 320 x 256 VOx microbolometer detector enables detailed thermal imaging

• 24° x 18° field of view provides broad scene coverage

• Advanced digital detail enhancement improves image clarity

• HD-SDI lossless video output for high-quality live feed

• Single H.264 network video stream for easy integration

• Full 360° pan and 90° tilt adjustment for comprehensive scene monitoring

• Mechanical stabilization minimizes pitch, yaw, and heave effects

• Environmental resilience with IPX6 water ingress protection and operating temperature range from -13°F to +131°F

• Supports continuous 8x zoom with a thermal focal length of 9.1mm

• Compatible with multiple connection types including BNC and RJ45 for versatile setup
