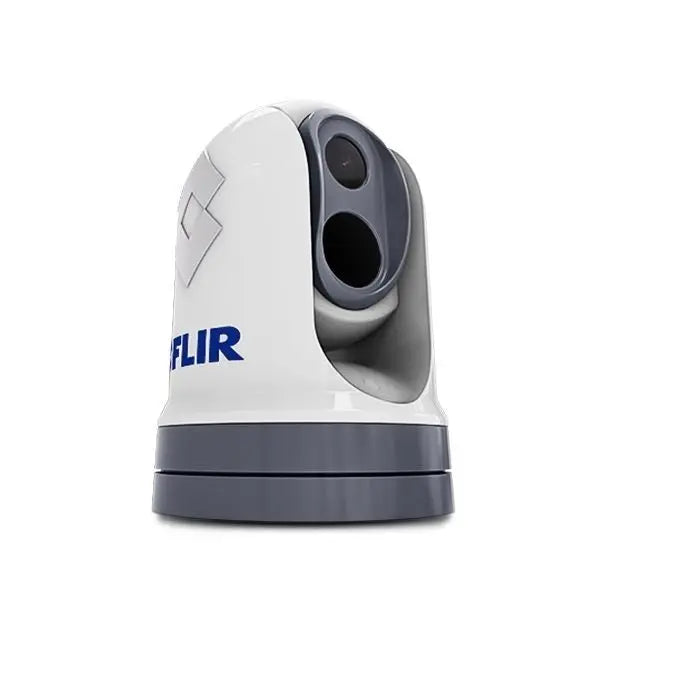

FLIR M364C LR Dual Payload Thermal and HD Visible Camera for Marine Navigation

FLIR M364C LR Dual Payload Thermal Camera No JCU 640 x 512 18D HFoV

The FLIR M364C LR is a dual payload camera system designed for advanced marine navigation and surveillance. Featuring a high-definition low light visible camera with 30x optical zoom and a thermal imaging core with 640 x 512 resolution, this system provides exceptional situational awareness for law enforcement, commercial mariners, and serious recreational boaters. The thermal camera utilizes multispectral imaging and FLIR Color Thermal VisionTM technology to overlay thermal images with visible details, enabling positive identification of navigation aids and vessels even in challenging conditions. Its integrated MSX® technology enhances image clarity by combining thermal and visible data, making it easier to distinguish objects within complex scenes.

Features:

• Thermal imaging with 640 x 512 resolution VOx microbolometer for clear thermal scene analysis

• Color Thermal VisionTM technology overlays thermal images with visible camera details for enhanced identification

• High-definition low light camera with 30x optical zoom and 12x digital zoom for detailed target recognition

• Two-axis mechanical stabilization minimizes effects of pitch, heave, and yaw for steady imaging

• Pan & tilt capability with 360° continuous pan and +/- 90° tilt for comprehensive scene coverage

• Multiple output options including HD-SDI lossless video and H.264 network streaming for versatile integration

• Environmental robustness with IPX6 water ingress protection, shock, vibration, and lightning resistance

• Operational in harsh marine environments with temperature ranges from -13°F to +131°F and salt mist resistance

• Focus fixed at 12 feet to infinity for consistent imaging performance across distances

• Focal length of 18mm for thermal imaging and adjustable daylight focal length from 129mm to 4.3mm for optical clarity
