FLIR MD324 Thermal Night Vision System with 320x240 Resolution and Joystick Control

FLIR MD324 Bundle With JCU 320X240 Resolution 30Hz

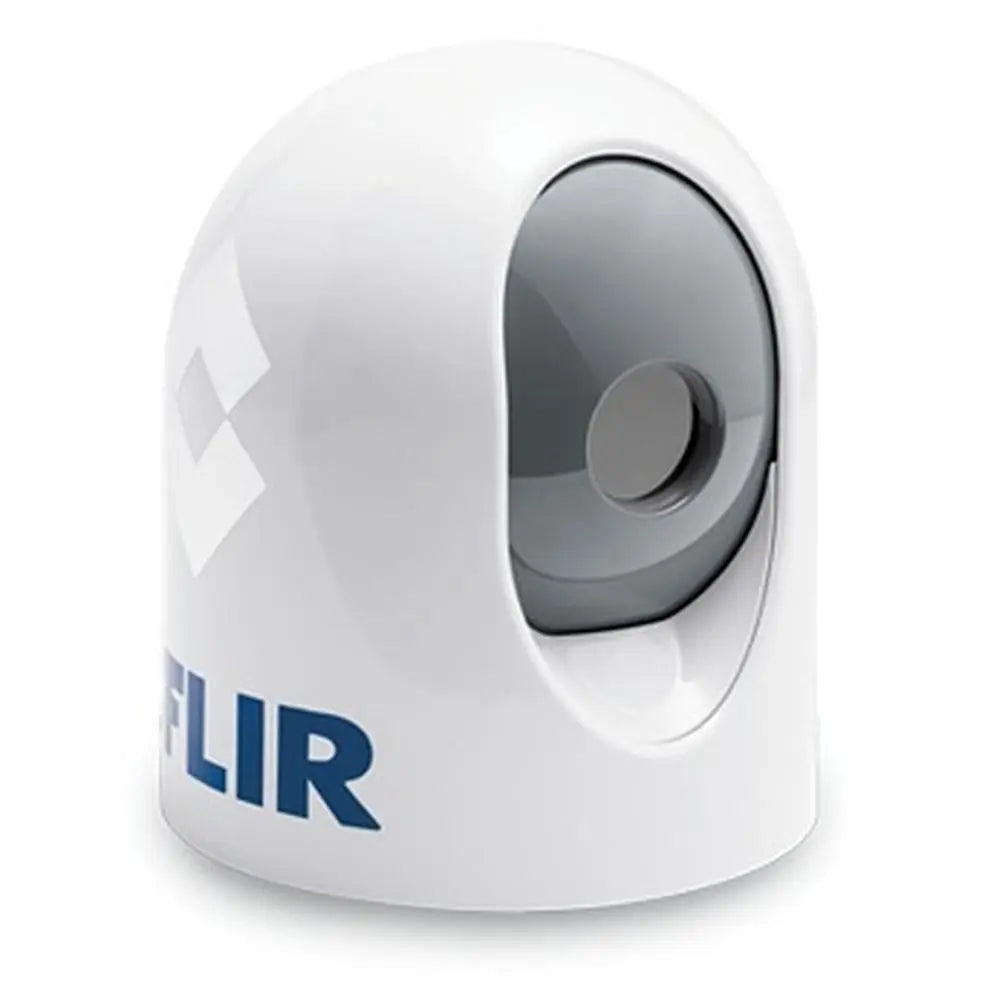

The FLIR MD324 thermal night vision system offers a reliable and cost-effective solution for obstacle avoidance, collision prevention, and water rescues during nighttime operations. Designed for easy installation and seamless integration into existing electronics, this fixed-mount system provides clear thermal imaging with a compact profile that fits unobtrusively on your vessel or vehicle. Its versatile mounting options allow you to position the display on your dashboard or integrate the feed into an existing display to maximize space efficiency. The system features a 320 x 240 VOx microbolometer detector, providing a field of view of 24 x 18 degrees (NTSC), and includes a 19 mm focal length lens for sharp thermal imaging. It offers standard 2x digital zoom, with an optional 4x zoom available on the MD-625 model, and employs FLIR's proprietary Digital Detail Enhancement for enhanced image clarity. With an Ethernet-enabled design, the MD324 supports straightforward integration into your current electronics setup and requires PoE power, simplifying installation. Its slim, lightweight construction, weighing approximately 6.7 ounces, ensures unobtrusive mounting, while its environmental specifications guarantee operation within temperatures from -25°C to +55°C, making it suitable for various marine and outdoor environments. The system complies with MIL-STD-810E and IPx6 standards, ensuring durability against dust, water ingress, shocks, and vibrations. Included in the package are the camera head, analog video and Ethernet cables, weatherproof Ethernet coupler, PoE injector, mounting hardware, and an operator’s manual on CD. For enhanced control, the system can be operated via a joystick control unit or through FLIR's free app on iOS devices, enabling intuitive gesture-based control, camera browsing, and thermal/TV signal switching. This comprehensive package is backed by a 2-year warranty, making the FLIR MD324 an ideal choice for professional night-time surveillance and water rescue applications.

Features:

• Resolution: 320 x 240 VOx microbolometer for clear thermal imaging

• Field of View: 24 x 18 degrees (NTSC)

• Focal Length: 19 mm lens for sharp image detail

• Zoom: Standard 2x digital zoom, optional 4x on MD-625 model

• Connectivity: Ethernet-enabled for simple integration with existing systems

• Power: PoE (Power over Ethernet) support for easy installation

• Design: Slim profile weighing approximately 6.7 ounces for unobtrusive mounting

• Environmental Resistance: IPx6 water ingress protection, MIL-STD-810E durability

• Operating Temperature: -25°C to +55°C for versatile outdoor use

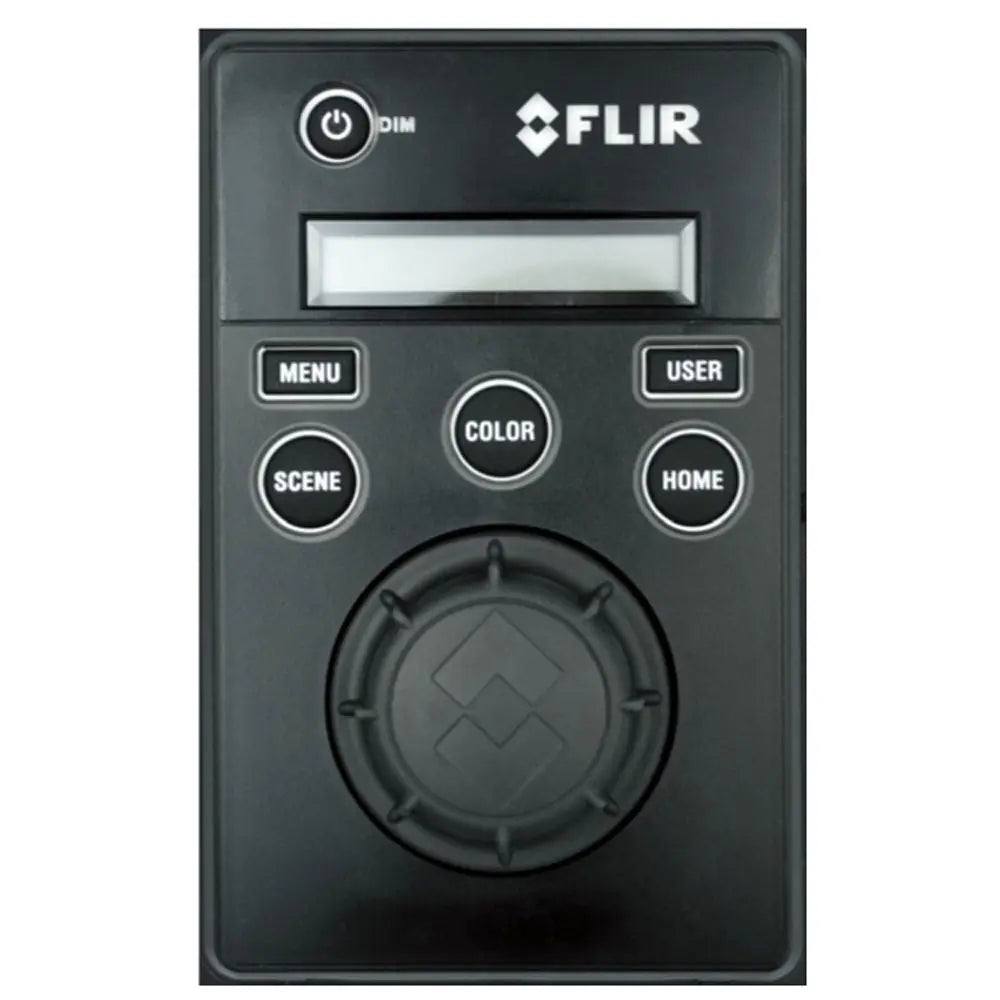

• Control Options: Joystick control unit and iOS app for intuitive operation

• Included Accessories: Video and Ethernet cables, weatherproof Ethernet coupler, mounting hardware, operator manual
