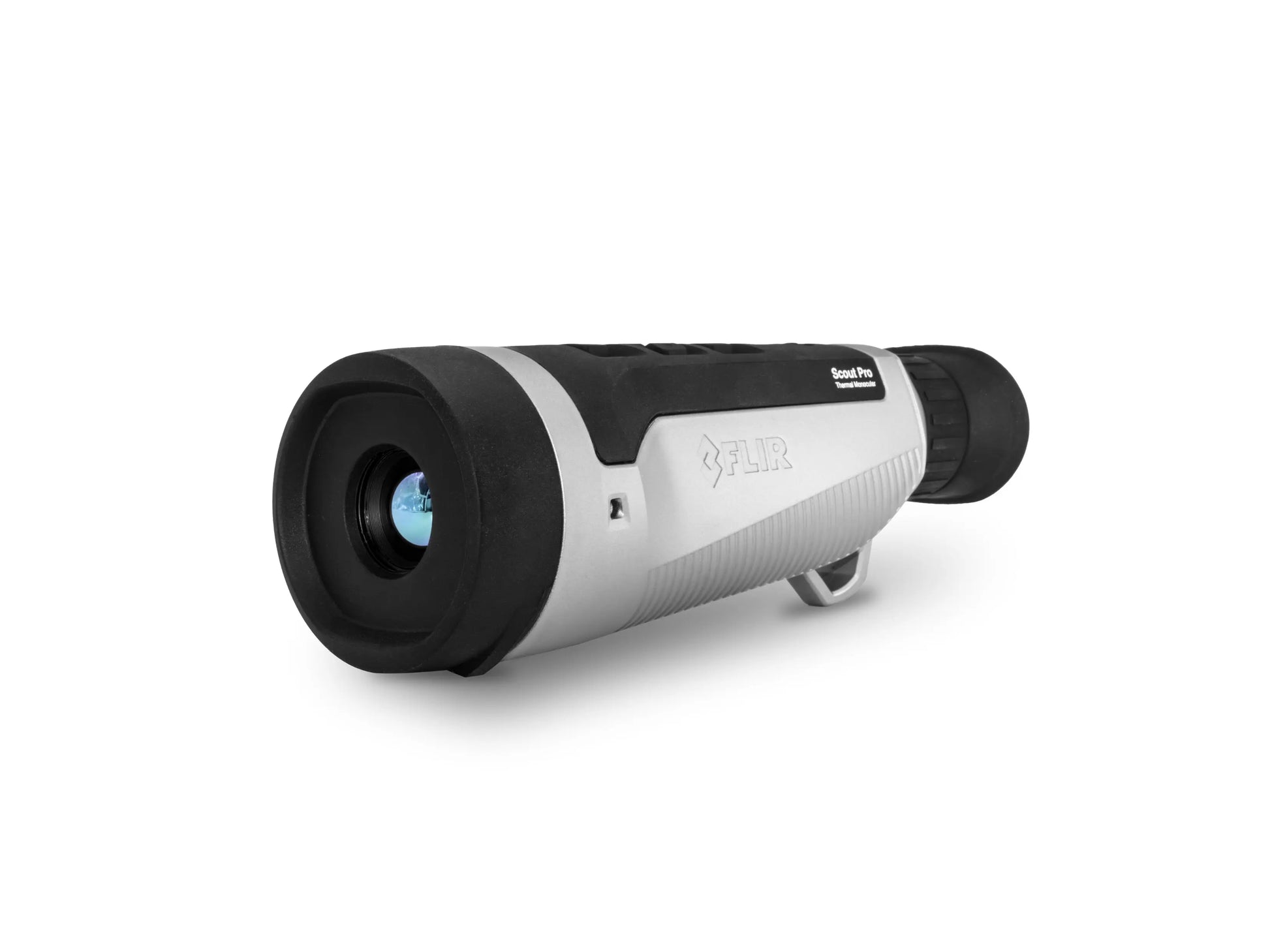

FLIR Ocean Scout Pro Marine Thermal Monocular

FLIR Ocean Scout Pro Marine Thermal Monocular

FLIR Ocean Pro Marine Thermal Monocular

Model: 15002-0202

• Up to 500 m visibility, even in the dark


• Wide 32 deg field of view for maximum coverage and faster
  area sweeps


• Rugged and reliable with IP67 rating and 2 m drop protection


• Easy-to-use menu, requiring minimal training


• Wireless video streaming through Scout Pro App (iOS only)


• Navigate at night with confidence


• Avoid obstacles, floating debris and navigate safer


• Locate navigation aids


• Find people or pets in the water

FLIR Ocean Scout Pro provides exceptional imagery by day or night using a high-resolution 640 x 480 thermal sensor with a fast 30 Hz refresh rate and high-resolution viewfinder. Combined, these features give Ocean Scout Pro outstanding long-range performance with the ability to detect a human-sized target at 500-meters. A wide 32 deg field of view enables rapid area scanning, locating people in the water, or spotting navigation aids and hazards.

The Ocean Scout Pro includes a tactical storage pouch compatible with MOLLE webbing, USB-C
charge/interface cable, wrist lanyard, two rubber eyecups, and a quick start guide. An internal lithium-ion battery provides up to 6 hours of runtime. The USB-C
cable provides charging and enables file transfer to a connected PC.

Specifications
Field of View (FOV)32 deg

Focal length
19 mm

F-number
f/ 1.0

Focus
Fixed focus

Human detection range
500 m (540 yards)

Minimum focus distance
4 m (13 ft)

Detector frame rate
30 Hz

Display frame rate
60 Hz

Thermal sensitivity, NETD
Less than 38 mK @ 30 degC (86 degF)

Detector Resolution
640 x 480, vox microbolometer

Image processing
FLIR proprietary Digital Detail EnhancementTM

Color (housing)
Silver

Drop rating
2 m (6 ft 7 in)

IP rating
IP67

User interface

Zoom
2x, 4x, 6x, 8x

Modes
White Hot, Black Hot, Sepia, and Heat

Disable radio and Wi-Fi
Physical On/Off switch

Image presentation

Built-in display
XGA 1024 x 768

Video
XGA 1024 x 768

Power

Batttery life
Up to 6 hours

Battery type
Internal Li-Ion cell

Charging time
2 h at 80%

Physical

Size (L x W x H)
19.2 cm x 6.4 cm x 6.4 cm (7.5 in x 2.5 in x 2.5 in)

Weight (incl. battery)
498 g (1 lb 2 oz)

Tripod mounting
UNC 1/4-20

Image storage

Media gallery
Scout Pro App (iOS only)

Storage media
Embedded flash

Image storage capacity
Greater than 1000

Image storage mode
IR

File formats
Standard JPEG

Video recording
Yes

Non-radiometric IR video recording
MPEG4 AVC (ITU-T H.264)

Storage capacity
16 GB

Video streaming
Yes

Non-radiometric IR video streaming
Wi-Fi/RTSP (MPEG4 AVC (ITU-T H.264))

USB streaming
UVC (YUV422 no overlay)

Wireless connectivity

Bluetooth
BLE

Streaming
Wi-Fi

Warranty and service

Warranty
support.flir.com/oceanscout-pro
