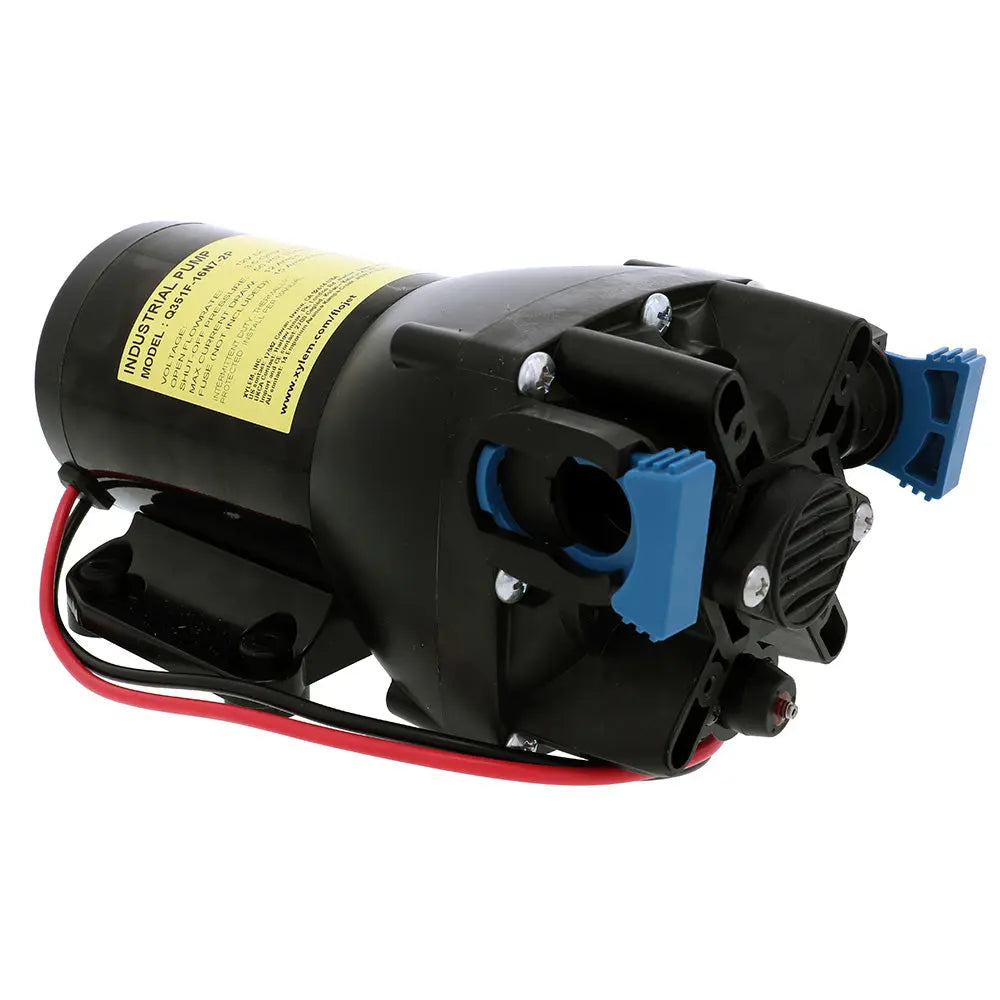

Flojet VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI

VersiJet Diaphragm Pump - 3.5 GPM, 12V, 50 PSI

Flojet VersiJet Series industrial diaphragm pump. It is engineered for durability and longevity. This Flojet pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing, and more! Glass-filled polypropylene hose is resistant to corrosion. Viton seals and a Santoprene diaphragm provide resistance to chemicals and corrosion. It has quick-connect ports and includes two 1/2 straight hose barbs.

Features:

• Heavy-duty, coated motor
• Long-life co-molded diaphragm
• Efficient, quiet operation
• Self-priming
• Runs dry without damage
• 4-chamber diaphragm
• Quick-connect ports
• TENV permanent magnet motor
• Noise-dampening baseplate
• Thermal motor protection (TCO)

Applications:

• Liquid Transfer
• Spraying
• Cooling
• Circulation
• Filtration
• Dispensing

Specifications:

• Product Number: Q351F-16N7-2P
• Port Fittings: 2 x 1/2 (13mm) straight hose barb
• Open Flow Rate: 3.5 GPM open flow (13.2 LPM)
• Pressure Switch Cut-Off: No switch
• Max Operating Pressure: 50 PSI (3.4 BAR)
• Max Inlet Pressure: 30 PSI (2.2 BAR)
• Internal Bypass: Yes
• Fluid Temperature Range: 32 F - 140 F (0 C - 60 C)
• Self-Priming Capability: Up to 8ft (2.4m) dry prime
• Run-Dry Capable: Yes
• Nominal Voltage: 12 VAC
• Voltage Range: 9 V- 13.6 V
• Max Current Draw: 9.5 Amps @ 50 PSI (3.4 BAR)
• Fuse Size: 15 Amps (not included)
• Duty Cycle: Intermittent
• Leads: 12 (305mm), 14 AWG (2.5mm^2)
• Wire Connection: Stripped wire
• Weight (pump only): 5.1 lbs.

Materials:

• Upper Housing: Glass-filled polypropylene
• Lower Housing: Cast aluminum
• Check Valve Retainer: Polypropylene
• Diaphragm: Santoprene
• Check Valves: Viton
• Switch diaphragm: Viton
• Bypass Diaphragm: Viton
• PH Seals: Viton
• PH Fasteners: Stainless steel
• Baseplate: Nylon with Rubber Feet
• Motor Casing: Cast aluminum; coated steel

The Flojet VersiJet series diaphragm pump is designed for reliable industrial liquid transfer and fluid management applications. With a flow rate of 3.5 gallons per minute and operating at 12 volts, this pump provides efficient performance in diverse environments. Its durable construction features a glass-filled polypropylene housing resistant to corrosion, combined with Viton seals and a Santoprene diaphragm to withstand harsh chemicals and prolonged use. The pump is equipped with quick-connect ports, including two 1/2-inch straight hose barbs, enabling easy installation and maintenance. Its robust motor is TENV permanent magnet type, ensuring consistent operation with thermal protection to prevent overheating. This self-priming pump can handle dry running conditions up to 8 feet, making it suitable for a variety of fluid handling tasks such as spraying, cooling, circulation, filtration, and dispensing. Its quiet operation and noise-dampening baseplate contribute to a user-friendly experience, ideal for both industrial and mobile applications. The pump’s internal bypass system maintains steady pressure, and the open flow rate is rated at 3.5 GPM, with a maximum operating pressure of 50 PSI. The unit is built with high-quality materials including cast aluminum and stainless steel fasteners, ensuring longevity and resistance to environmental factors. With a weight of approximately 5.1 pounds, the Flojet VersiJet diaphragm pump is a versatile solution for demanding fluid transfer needs, providing reliable performance with minimal maintenance.

Features:

• Heavy-duty, coated motor for durability

• Long-life co-molded diaphragm for extended service life

• Efficient, quiet operation suitable for noise-sensitive environments

• Self-priming capability up to 8 feet dry prime

• Runs dry without damage, ensuring operational safety

• Four-chamber diaphragm design for consistent performance

• Quick-connect ports for easy installation and maintenance

• TENV permanent magnet motor for reliable power

• Noise-dampening baseplate reduces operational noise

• Thermal motor protection (TCO) prevents overheating
