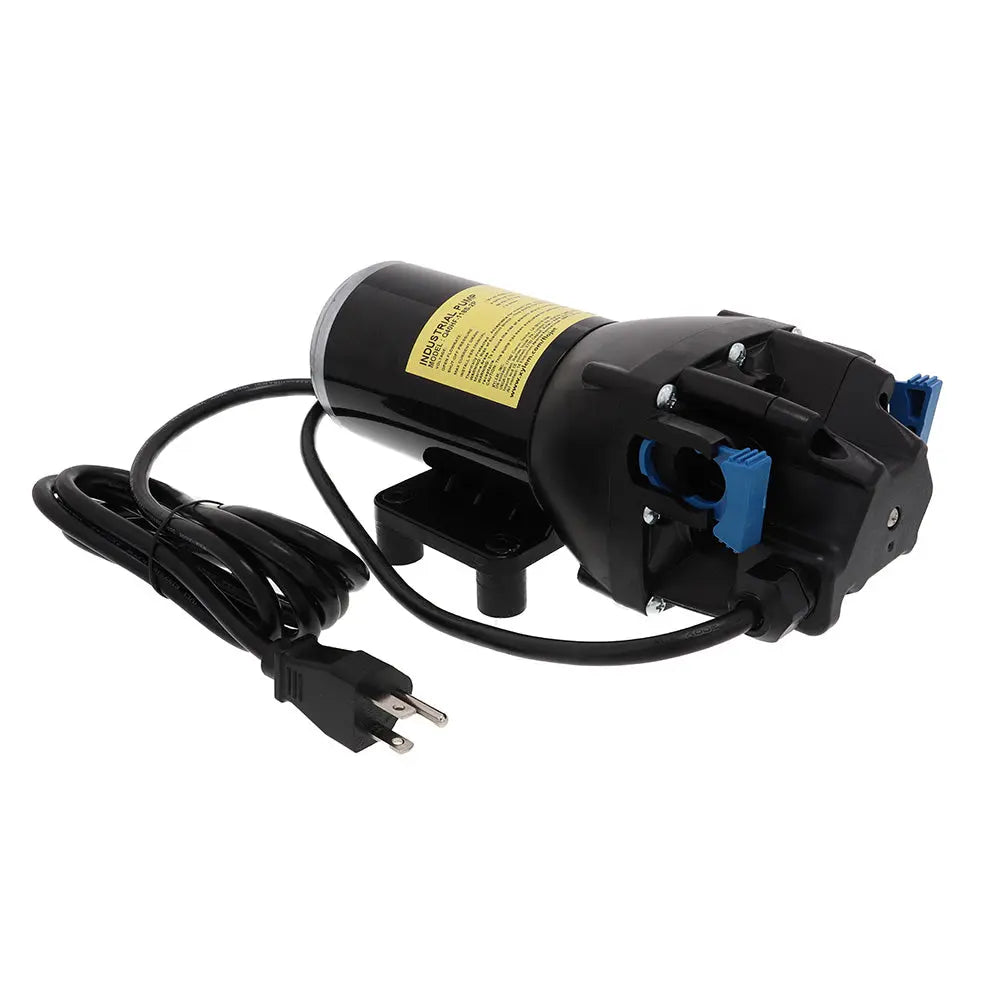

Flojet VersiJet Industrial Diaphragm Pump - 115V, 4 GPM, 60 PSI for Liquid Transfer and Spraying

VersiJet Industrial Diaphragm Pump - 115V, 4 GPM, 60 PSI

VersiJet Series pump is engineered for applications such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. Each pump is constructed with a glass-filled polypropylene upper housing, coated motor, co-molded Santoprene diaphragm, and EPDM check valves and seals to maximize durability and service life. The integrated pressure switch ensures automatic operation, while the self-priming design allows for up to 8 feet of dry lift. VersiJet pumps can run dry without damage, and their quiet, smooth performance minimizes disruptions in busy work areas. Quick-connect ports streamline installation and maintenance, so operators can attach or remove hoses and fittings quickly without tools for fast pump swaps or service. It delivers up to 4 GPM and handles a maximum pressure of 60 PSI. This pump is self-priming up to 8 feet, and it includes a built-in pressure switch that automatically shuts off the pump when system pressure reaches 60 PSI. Upgrade your pumping system today and keep your operation flowing without interruptions!

Benefits:

• Self-Priming: Draws liquid efficiently with up to 8 feet (2.4 meters) of dry prime, allowing the pump to pull fluid from the source without manual priming.
• Runs Dry Without Damage: Designed to operate safely even when the fluid supply is interrupted, meaning the pump will not suffer internal damage if left running without liquid, giving operators added protection from accidental dry runs and helping prevent costly downtime.
• Integrated Excessive Pressure Protection: A pressure switch shuts off the pump automatically when system pressure reaches 60 PSI. This feature helps prevent over-pressurization, protecting downstream equipment and extending pump life by minimizing unnecessary wear.
• Quiet, Efficient Operation: Reduces noise and energy usage through a four-chamber diaphragm design and noise-dampening baseplate.
• Reliable Performance: Designed for industrial fluid transfer and spraying in harsh environments.
• Long-Lasting Chemical-Resistant Construction:Features glass-filled polypropylene housing and EPDM seals for enhanced chemical resistance and durability.
• Easy Installation: Quick-connect fittings speed up maintenance and replacement.

Applications:

• Liquid Transfer
• Spraying
• Cooling,
• Circulation
• Filtration
• Dispensing

Specifications:

• Model: Q40FF-118S-2P
• Open Flow Rate: 4 GPM (15 LPM)
• Pressure Switch Cut Off: 60 PSI (4.1 BAR)
• Max Operating Pressure: 60 PSI (4.1 BAR)
• Max Inlet Pressure: 30 PSI (2.2 BAR)
• Self-Priming Capability: Up to 8 ft (2.4 m)
• Run-Dry Capable: Yes
• Nominal Voltage: 115 VAC
• Voltage Range: 104126 VAC
• Max Current Draw: 1.3 Amps @ 60 PSI
• Leads: 14 (355mm) 18 AWG
• Wire Connection: Stripped Wire
• Duty Cycle: Intermittent
• Port Fittings: 2 x 3/4 (19 mm) straight hosebarb
• Fluid Temperature Range: 32F 140F (0C 60C)
• Internal Bypass: Yes
• Self-Priming Capability: Up to 8ft (2.4m) Dry Prime
• Run-Dry Capable: Yes
• Upper Housing: Glass-Filled Polypropylene
• Lower Housing: Cast Aluminum
• Diaphragm: Santoprene
• Check Valve Retainer: Polypropylene
• Pump Head: Seals: EPDM, Fasteners: Stainless Steel
• Baseplate: Nylon Rubber Feet
• Dimensions: 11.25 x 5.47 x 5.07 in (286 x 139 x 129 mm)
• Weight: 5.2 lbs (2.4 kg)
• Mounting: Horizontal (preferred) or vertical with the pump head down
• Certifications: UR listed; IPX6 rated
• Replaces Flojet Models; 04300042A, 04300043A

The Flojet VersiJet Series diaphragm pump model Q40FF-118S-2P is engineered to handle demanding fluid transfer applications with efficiency and reliability. Constructed with a durable glass-filled polypropylene upper housing, coated motor, co-molded Santoprene diaphragm, and EPDM check valves and seals, this pump is designed for long-lasting performance in industrial environments.

Its self-priming capability allows it to draw liquids from up to 8 feet of dry lift, providing flexibility in various installation scenarios. The integrated pressure switch automatically shuts off the pump when system pressure reaches 60 PSI, preventing over-pressurization and protecting downstream equipment. This feature, combined with the pump’s ability to operate safely when dry, minimizes downtime and maintenance costs.

The Flojet VersiJet pump operates quietly and smoothly thanks to a four-chamber diaphragm design and noise-dampening baseplate, making it suitable for busy work environments. Quick-connect ports facilitate fast, tool-free installation and maintenance, allowing operators to quickly swap hoses or perform repairs without extensive downtime. Its chemical-resistant construction, including EPDM seals and a polypropylene check valve retainer, ensures durability when handling a variety of liquids, including aggressive chemicals.

Designed for versatility, this pump supports applications such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. Its compact dimensions and lightweight design make it easy to install in constrained spaces, whether mounted horizontally or vertically with the pump head down. Certified UR listed and rated IPX6 for water resistance, the Flojet VersiJet is built for demanding industrial tasks, providing dependable performance over its service life.

Features:

• Self-Priming: Draws liquids up to 8 feet dry lift, reducing setup time

• Run-Dry Capable: Operates safely without damage when dry, minimizing downtime

• Integrated Pressure Switch: Automatically shuts off at 60 PSI to prevent over-pressurization

• Quiet and Efficient: Four-chamber diaphragm design reduces noise and energy consumption

• Chemical-Resistant Construction: Glass-filled polypropylene housing and EPDM seals withstand harsh chemicals

• Easy Installation: Quick-connect fittings enable tool-free hose and fitting attachment

• Versatile Applications: Suitable for liquid transfer, spraying, cooling, circulation, filtration, and dispensing

• Compact and Lightweight: Measures approximately 11.25 x 5.47 x 5.07 inches and weighs 5.2 lbs

• Certified and Water-Resistant: UR listed and IPX6 rated for demanding environments
