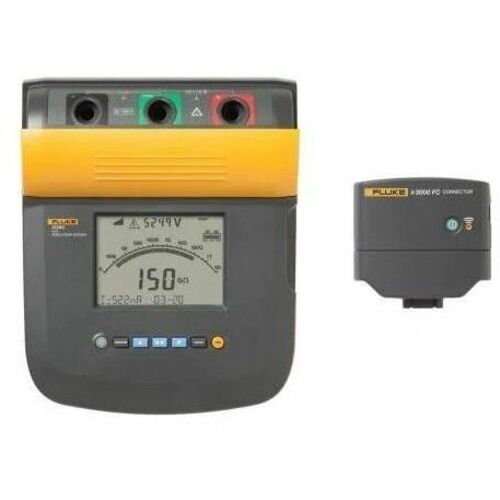

Fluke 1550C Insulation Tester Kit - 5 kV Digital Insulation Testing with Wireless Data Collection

The Fluke 1550C Insulation Tester Kit is designed for accurate, safe, and efficient insulation testing up to 5,000 volts. This comprehensive tool simplifies data collection through the Fluke Connect™ wireless app, allowing users to operate remotely and minimize exposure to potentially hazardous zones. The large digital/analog LCD display provides clear readings, while the automatic calculation of Dielectric Absorption Ratio (DAR) and Polarization Index (PI) streamlines testing procedures. With selectable test voltages ranging from 250 V to 10,000 V in 50 V and 100 V steps respectively, the 1550C offers flexible testing options suitable for a wide variety of electrical equipment. The guard system eliminates surface leakage current effects, ensuring high-resistance measurements are precise and reliable. Additionally, the safety rating of CAT III 1000 V and CAT IV 600 V enhances user safety during testing activities.

Features:

• Remote testing capability: Quickly configure, start, and stop tests remotely using Fluke Connect™ and a smartphone, keeping operators at a safe distance from energized equipment

• Real-time trending: Visual live graphs on your mobile device provide easy-to-understand data, helping identify trends and potential issues more effectively

• Report generation: Create detailed, customizable reports with company branding through Fluke Connect desktop software, saving time and improving data clarity

• Cloud data storage: Save test results to the cloud for further analysis and preventive maintenance planning

• Automatic calculations: Dielectric Absorption Ratio (DAR) and Polarization Index (PI) are calculated automatically, reducing setup time

• Surface leakage guard: Eliminates the effect of surface leakage currents, ensuring high-resistance measurement accuracy

• Multiple test voltages: Selectable in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V, for versatile testing

• Safety features: Warning function alerts users to line voltage presence, with voltage readings up to 600 V AC/DC for added safety

• Memory storage: Store up to 99 test results with user-defined labels for easy recall

• Long battery life: Over 750 tests per charge ensures continuous operation during extensive testing sessions

• Additional functions: Capacitance and leakage current measurement, resistance testing up to 2 teraohms, and a ramp function for breakdown testing
