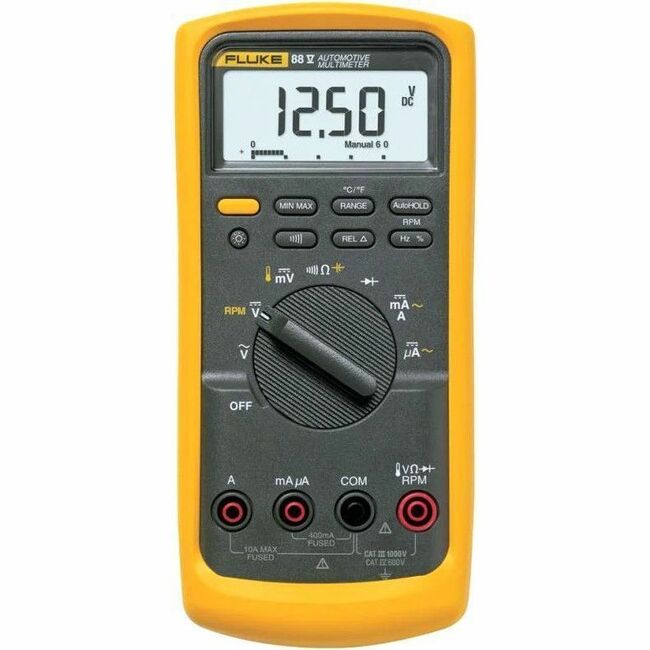

Fluke 88V Deluxe Automotive Multimeter, Part Number FLUKE-88-5

Fluke 88V Deluxe Automotive Multimeter, FLUKE-88-5

The Fluke 88V Deluxe Automotive Multimeter is designed for diagnosing conventional and hybrid vehicle electrical systems. This handheld meter combines standard multimeter functions with automotive-specific capabilities, helping technicians troubleshoot voltage, current, resistance, continuity, frequency, and diode performance. Its high input impedance helps protect sensitive computer circuits while supporting measurements up to 1,000 volts AC or DC and current measurements up to 10 amps, with short-duration testing up to 20 amps.

Automotive troubleshooting functions include millisecond-resolution pulse-width measurement for fuel injector testing, duty-cycle measurement, frequency measurement up to 200 kHz, and compatibility with an optional inductive pickup for RPM testing. The meter also supports temperature measurements when used with an optional temperature probe. Min/Max/Average recording, Min/Max Alert, and Peak Min/Max capture help identify changing signals, intermittent faults, and fast transients as short as 250 microseconds.

The Fluke 88V is built for practical garage and service-bay use. Large display digits improve readability, while the two-level bright white backlight provides added visibility in dim work areas. An analog bar graph helps track unstable or rapidly changing signals, and an optional magnetic hanger can position the meter on compatible steel surfaces for convenient hands-free viewing. The included high-impact protective leather sheath and test lead set help support everyday automotive diagnostics. The Fluke 88V Deluxe Automotive Multimeter is backed by a limited lifetime warranty and meets RoHS environmental compliance requirements.

Features:

• Pulse-width, duty-cycle, and Min/Max/Average recording functions support detailed automotive diagnostics.
• High 10 megohm input impedance helps protect vehicle computer circuits during testing.
• Measures AC and DC voltage up to 1,000 volts and current up to 10 amps, with short-duration testing up to 20 amps.
• Frequency measurement up to 200 kHz and optional inductive pickup compatibility support RPM and signal analysis.
• Peak Min/Max recording captures fast electrical transients as short as 250 microseconds.
• Large display digits, bright two-level backlight, and analog bar graph improve visibility and signal tracking.
• Includes a high-impact protective leather sheath and test lead set.
• Backed by a limited lifetime warranty and compliant with RoHS requirements.
