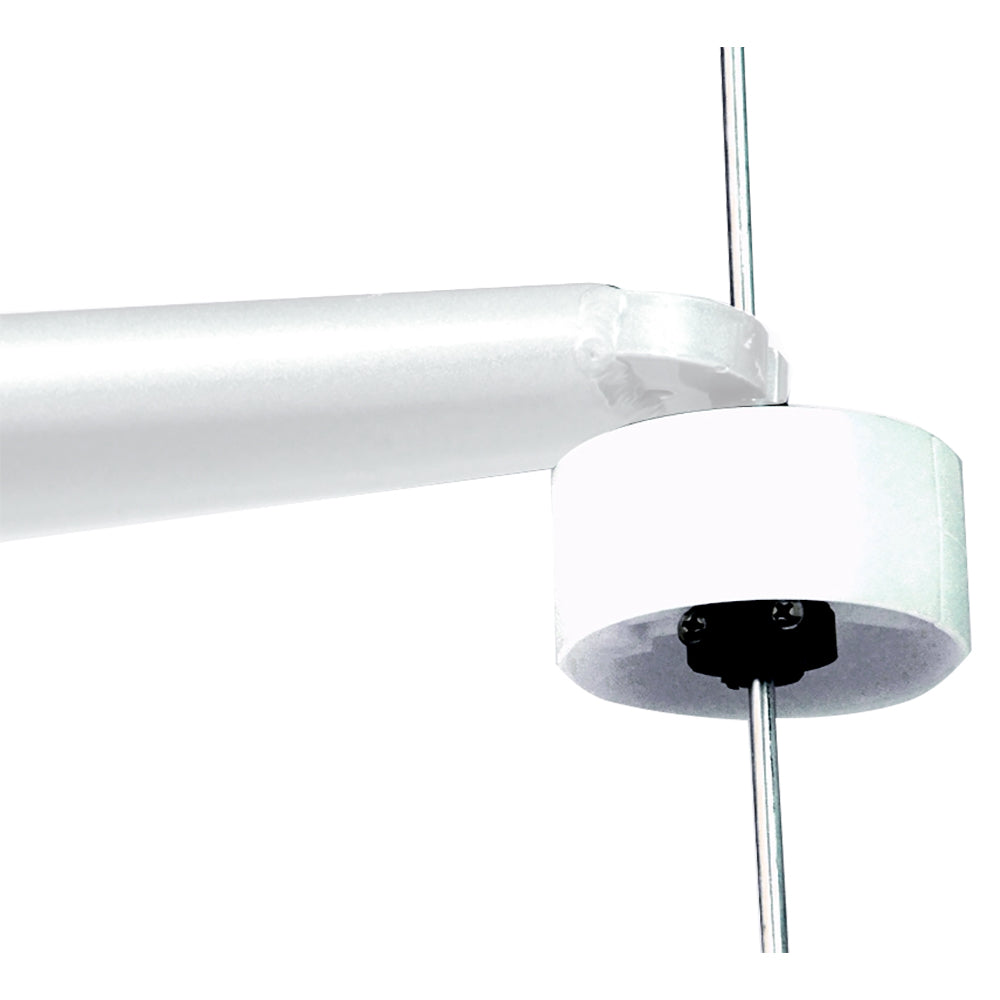

Forespar Performance Products SR-2 Jib Roller for Shrouds 3/16 to 3/8 Inch Wire Diameter

SR-2 Jib Roller

The Forespar SR-2 Jib Roller with fit shrouds from 3/16 thru 3/8 wire diameter.

Use the proper size pair of insert liners according to the table below:

• 3/8 wire use no insert
• 5/16 wire use #1 inserts
• 9/32 wire use #2 inserts
• wire use #3 inserts
• 7/32 wire use #4 inserts
• 3/16 wire use #5 inserts

The Jib Rollers may be placed just above or below the spreader tips; however, installation will be easier if located below the spreaders. In this instance, you can pre-assemble the parts while on deck and reduce the possibility of losing parts while hanging in a boatswains chair. Have a 3 inch piece of masking tape within handy reach (stick it to the shroud).

Select the proper inserts, place them into the two halves of a hub and fit them around the shroud. Use the tape to loosely hold these parts together. Note that the hubs have two clearance screw holes at one end. Match these with the smaller holes at the other end of the other half. It is important that the mating faces of the inserts are parallel with the faces of the hub halves. Install the four screws supplied, tightening only to the extent that you can still slide the hub assembly up the wire shroud. Now remove the tape.

Next, install the rollers. Note that one half of each roller has clearance holes for the two screws. Mate these halves that dont have clearance holes. Run these screws tight. Now slide the Jib Roller to the desired position on the shroud and finish tightening the four hub screws until the hub interfaces are fully closed.

The Forespar SR-2 Jib Roller is designed to enhance the efficiency and safety of your sailboat's jib rigging system. Compatible with shrouds from 3/16 inch to 3/8 inch wire diameter, this high-quality roller ensures smooth operation and secure positioning. Its versatile fit makes it suitable for a wide range of sailing setups, providing reliable performance whether installed above or below the spreader tips. For optimal ease of installation, placing the roller below the spreaders is recommended, and pre-assembling the components on deck can help prevent parts loss during setup. The SR-2 Jib Roller features insert liners that accommodate different wire sizes, with specific instructions for selecting the correct inserts based on your wire diameter to ensure a snug fit and secure hold. The design includes hubs with clearance screw holes that align precisely with mating faces, allowing for straightforward assembly and adjustment. Each hub assembly can slide along the shroud to the desired position before fully tightening, providing flexibility in tensioning and positioning. The roller halves are engineered to fit seamlessly together, with one half featuring clearance holes for screws and the other without, facilitating easy assembly and secure fastening. Constructed to withstand marine conditions, this jib roller delivers durability and smooth operation even under demanding sailing conditions. Whether you're upgrading your existing rig or installing a new one, the Forespar SR-2 Jib Roller offers a dependable solution for managing jib sheet tension and improving sail control. Its robust design and straightforward installation process make it an essential component for serious sailors seeking performance and reliability in their rigging setup.

Features:

• Compatible with shrouds from 3/16 inch to 3/8 inch wire diameter

• Includes insert liners for various wire sizes, ensuring proper fit

• Easily installed above or below spreader tips with pre-assembly options

• Hub design allows for flexible positioning along the shroud

• Constructed with durable materials suitable for marine environments
