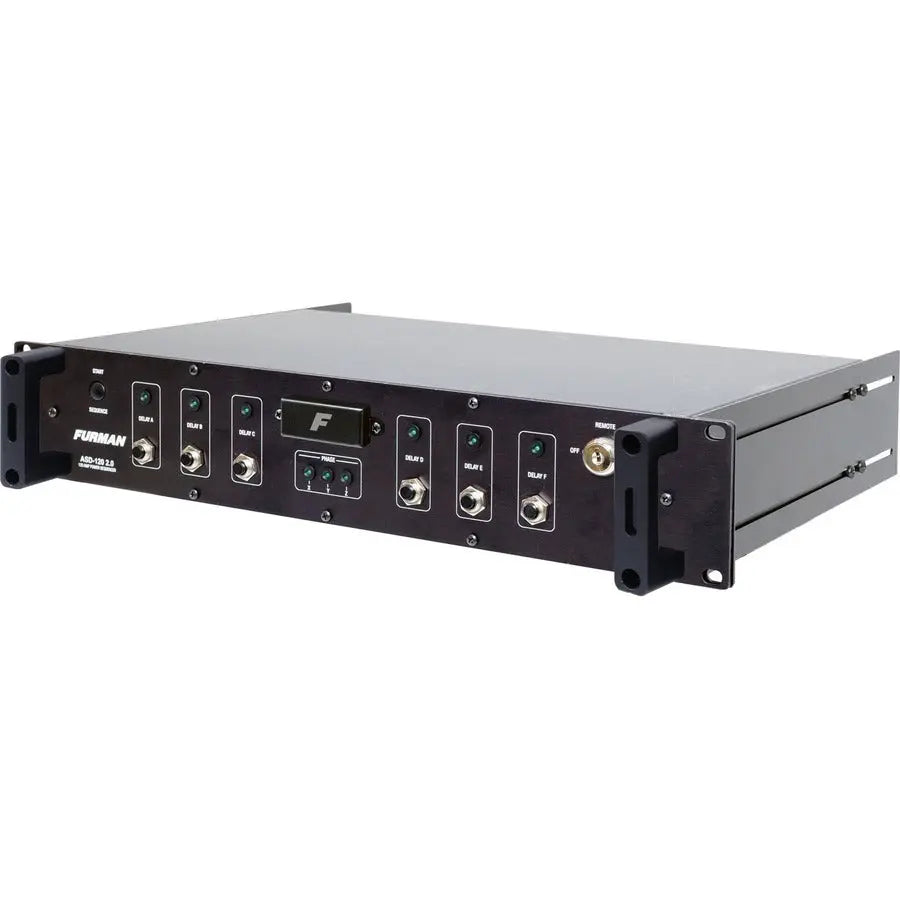

Furman ASD-120 2.0 AC Power Sequencer and Distribution System

The Furman ASD-120 2.0 AC power sequencer offers a reliable and compact solution for distributing power to multiple circuits in demanding environments such as touring sound systems, theatrical productions, mobile recording setups, and on-location film shoots. Designed with ease of installation and operation in mind, this rackmount system supports up to 120 amps of incoming power, efficiently distributing it across six 20 amp, 120V circuits. Its versatile four-bus design accommodates single-phase 120V or 240V power, as well as 208V three-phase configurations, making it suitable for a wide range of professional applications.
Power sequencing is critical in complex audio and industrial systems to prevent damaging power transients and excessive inrush currents. The ASD-120 2.0 allows each circuit to be part of a controlled power-up or power-down sequence, with adjustable delay intervals that can be set via an internal trimpot. The front panel features a three-position switch for each circuit, enabling independent control or inclusion in the sequencing process. An LED indicator signals active power sequences, aiding in system monitoring and troubleshooting. The unit also provides security features such as a front panel key switch and a lockable switch with a removable key, ensuring authorized access only.
The rear panel offers sequence control signals that can drive additional ASD-120 2.0 units or other devices, facilitating remote operation and integration into larger systems. These control signals can be used to initiate sequencing from either the unit itself or remotely via low-voltage wiring. The six duplex outlets on the rear panel are widely spaced to accommodate various plug configurations, allowing safe and organized wiring. Each outlet has a status indicator light, providing clear visibility into power states. The system's oversized buss bars and simple wiring process make installation straightforward, supporting both individual conductors and bundled cables up to 1.5 inches in diameter.
This power distribution system is built for durability and compliance, meeting RoHS standards and backed by a 3-year limited warranty. Whether you need synchronized power management for a touring rig or a secure, scalable power solution for a large venue, the Furman ASD-120 2.0 delivers dependable performance and flexible operation in a compact form factor.

Features:

• Front panel key switch for security

• Sequence control signals are available on rear panel to drive additional ASD-120 2.0s or other devices and circuits

• Sequence timing can be initiated from unit or remotely, using low voltage control wires

• Three position switch allows each circuit to be part of the power sequencing, or to be switched on/off independently

• Six widely spaced duplex outlets on rear panel

• Outlets can be powered up and down in sequence

• Four buss design accommodates 120V or 240V single phase, or 208V three phase power

• 120 amp total load capacity

• Six 20 amp, 120 volt circuits, each with a status indicator

• Oversized buss bars for reliable wiring and power distribution
