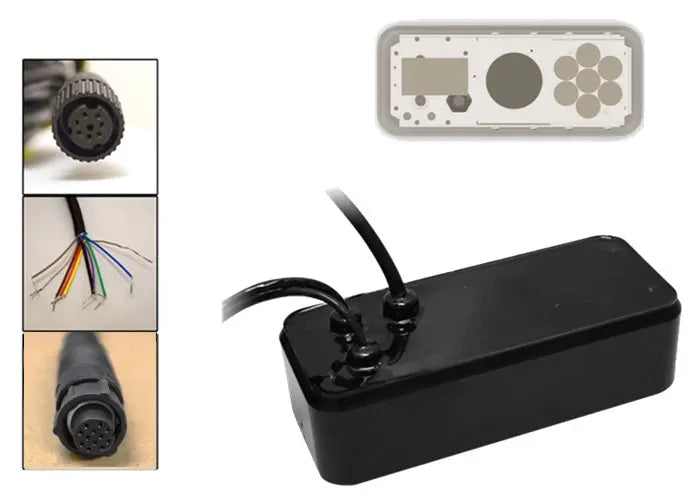

Furuno 165T/275LHW-12P Pocket Mount Combo Wide Beam Transducer for DFF3D 12-Pin

Furuno 165T/275LHW-12P: Advanced Wide Beam Transducer for Precision Sonar

Furuno 165T/275LHW-12P Pocket Mount Combo Wide Beam Transducer for DFF3D 12-Pin

Furuno 165T/275LHW-12P Pocket Mount Combo Wide Beam Transducer for DFF3D with 12-Pin Connector

Model: 165T/275LHW-12P

• DFF3D operating frequency 165 kHz
• Low-CHIRPS from 42 kHz to 65 kHz, Beamwidth 25 deg to 16 deg
• High-CHIRPS from 150 kHz to 250 kHz, Beamwidth 25 deg
• 12M Cables. Pigtail cable for DFF1-UHD, 7 pin connector and 12 pin connector for DFF3D
• Recommended for a DFF1-UHD and DFF3D installation
• Built-in motion sensor
• Built in temp sensor

This is a new size housing (12 LX 5 W X 3.5 H) that contains DFF3D elements along with CHIRP elements.

High-Performance Wide Beam Transducer Integration

The Furuno 165T/275LHW-12P offers advanced wide beam sonar performance specifically designed as a pocket mount combo transducer. Engineered for seamless compatibility with Furuno's DFF3D 12-pin sonar systems, it delivers accurate and detailed underwater imaging. This transducer combines two frequencies in one housing—165 kHz and 275 kHz—enabling efficient target separation and greater coverage. Its wide beam angle maximizes scanning area while maintaining strong signal clarity, making it ideal for commercial and recreational vessels aiming to improve sonar detection accuracy.

Durable Pocket Mount Design for Easy Installation

Designed with durability and ease of use in mind, the Furuno 165T/275LHW-12P features a compact pocket mount configuration, allowing quick and reliable installation on various hull types. The rugged construction ensures long-term resistance to harsh marine environments, including corrosion and impact. Its 12-pin connector enables straightforward plug-and-play integration with Furuno DFF3D systems, reducing setup time while maintaining secure connections. This practical design enhances vessel efficiency without compromising on performance or reliability.

Optimized Compatibility and Versatility for Marine Applications

This Furuno model is expertly tailored for enhanced sonar versatility, supporting a broad range of marine applications from fishing to navigation. By combining dual frequencies, the 165T/275LHW-12P provides fishermen with detailed target separation at short ranges and improved bottom tracking on deeper waters. The device is optimized for use with the DFF3D sounder, providing crisp images critical for identifying fish and structures beneath the vessel. Additionally, its wide beam configuration offers superior coverage for live-bottom mapping and underwater obstacle detection, boosting operational safety and productivity.
