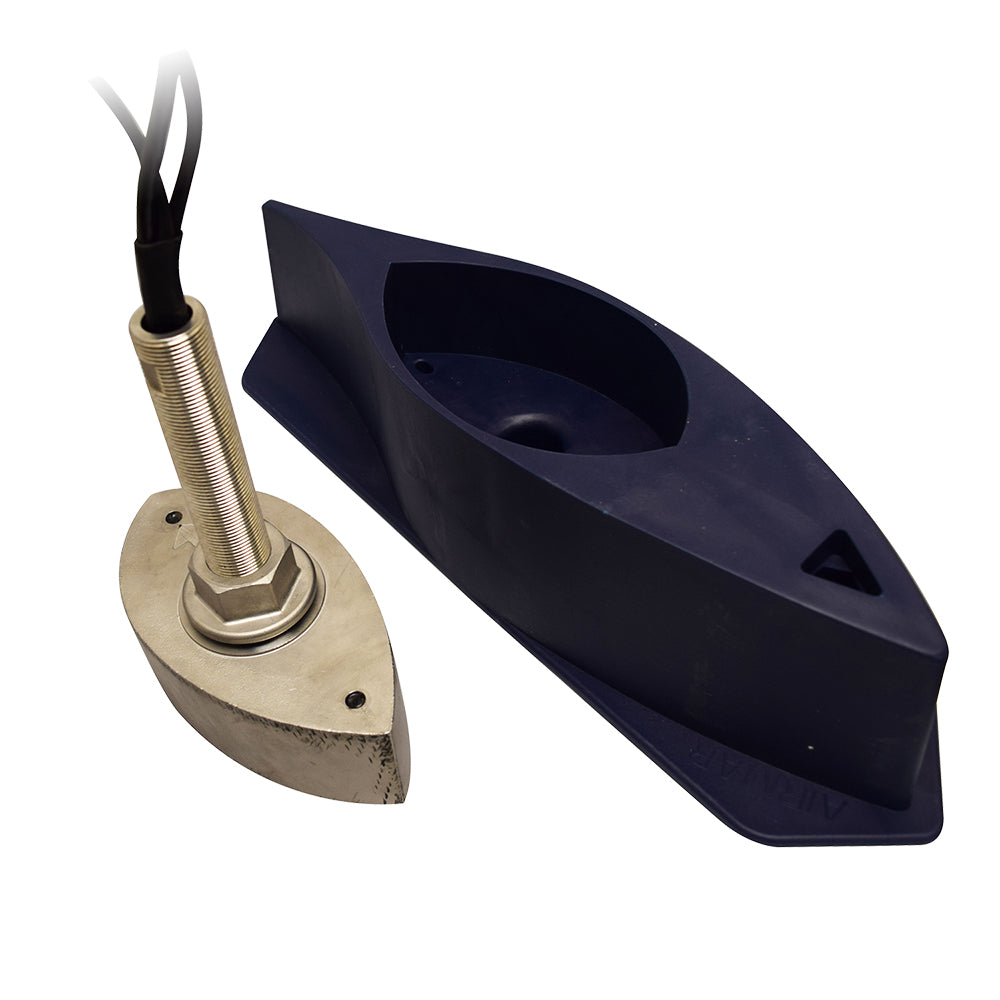

Furuno 165T-50/200-SS260 DFF3D Thru-Hull Combo Transducer for Marine Sonar

165T-50/200-SS260 DFF3D Thru-Hull Combo Transducer

Stainless Steel Combination Thru-Hull

The 165T-50/200-SS260 includes the DFF3D elements along with 50/200 kHz elements and temperature and motion sensors. It can be connected to the DFF3D Multi-Beam Sonar along with one sounder. These transducers save money and space compared to purchasing and installing two separate transducers.

Features:

• Stainless Steel Thru Hull with high speed fairing block
• Can be flush mounted in keel without using fairing block
• DFF3D operating frequency: 165 kHz
• Built-in motion sensor
• Built in temp sensor
• 1kW, 50/200 kHz, 20/6 beam angles for sounder elements - the same elements as an Airmar B164 transducer
• 12M Cables with 10-pin Connector for sounder, 7-pin connector and a pigtail cable for the DFF3D
• Recommended for a TZtouch2 or a TZtouch/DFF1, and DFF3D installation

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Furuno 165T-50/200-SS260 DFF3D Thru-Hull Combo Transducer is designed for optimal performance in marine depth and imaging applications. Crafted from durable stainless steel, this high-speed fairing block allows for seamless flush mounting in the keel, reducing drag and enhancing vessel efficiency. The transducer features a high-frequency 165 kHz DFF3D element, enabling detailed 3D sonar imaging when connected to compatible multi-beam sonar systems. It integrates 50/200 kHz sounder elements along with temperature and motion sensors, providing comprehensive environmental data and precise vessel movement tracking. The combination of these features makes the Furuno 165T-50/200-SS260 an ideal choice for advanced navigation and fish finding systems, offering significant space and cost savings by eliminating the need for multiple transducers. The transducer includes a 12-meter cable with a 10-pin connector for sounder integration, a 7-pin connector, and a pigtail cable for DFF3D connectivity, ensuring easy installation with compatible systems such as TZtouch2 and TZtouch/DFF1. Its robust construction and versatile mounting options make it suitable for various vessel types, providing reliable, high-resolution sonar data in demanding marine environments. Whether for professional fishing, navigation, or research, this transducer enhances the capabilities of your marine sonar system with advanced imaging and sensor integration, delivering precise, real-time data to support your operations.

Features:

• Stainless Steel Thru-Hull with high-speed fairing block for durability and streamlined installation

• Flush mountable in keel without fairing block for flexible installation options

• DFF3D operating frequency of 165 kHz for detailed 3D imaging

• Built-in motion sensor for vessel movement tracking

• Integrated temperature sensor for environmental monitoring

• 50/200 kHz sounder elements with 1kW power and 20/6 degree beam angles, similar to Airmar B164 transducer

• 12-meter cable with 10-pin connector for sounder connection, plus 7-pin connector and pigtail cable for DFF3D

• Compatible with TZtouch2, TZtouch/DFF1, and DFF3D multi-beam sonar systems
