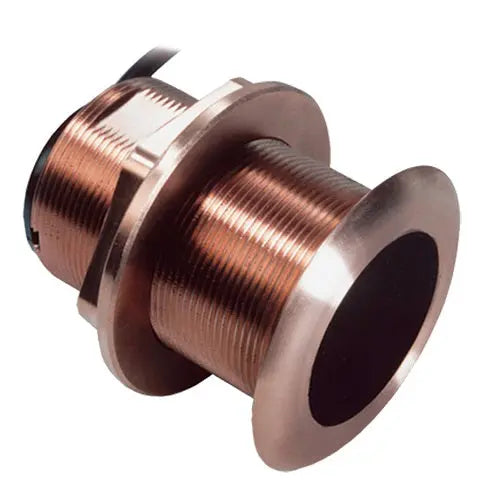

Furuno 520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin

Furuno 520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin

Furuno 520T-BLDLow Profile Broze Thru-Hull Depth and Temp Transducer - 10-Pin

• depth and temperature


• 600 W


• 50 kHz with a wide 45° beamwidth for performance to 353 m (1,200')


• 200 kHz with a 12° beamwidth for performance to 206 m (700')


• Right-angle cable exit saves space and protects transducer if stepped on


• Included rubber washer allows tightening of the hull nut to irregular hull surfaces


• Low-profile, bronze housing has minimal drag


• Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles


• 30 Foot Cable with 10-Pin Connector

Weight
0.9 kg (2.0 lb.)

Recommended Boat Length
Up to 8 m (25')

Hull Material
Fiberglass or wood

Hull Deadrise
Best performance through 7°. Can accommodate up to a 12°.

Acoustic Window
Urethane

Hole Diameter
51 mm (2")
