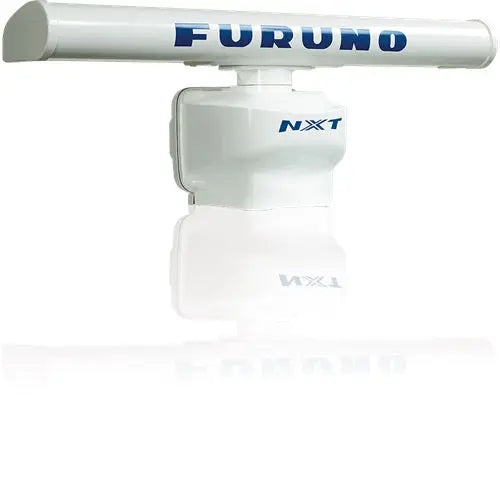

Furuno DRS12ANXT 100 Watt Solid State Radar 15m Cable and 4ft Antenna

Furuno DRS12ANXT: Advanced Solid State Radar for Reliable Marine Navigation

Furuno DRS12ANXT 100 Watt Solid State Radar 15m Cable and 4ft Antenna

Furuno DRS12ANXT 100 Watt Solid-State Doppler Radar with 4 feet antenna

Model: DRS12ANXT/4

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target AnalyzerTM and Fast Target TrackingTM utilizing Doppler technology. Combined with FURUNO exclusive RezBoostTM technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

NXT was the first Radar in the world to use the new Furuno exclusive Target AnalyzerTM function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target AnalyzerTM works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target AnalyzerTM can increase safety, as well as improve situational awareness.

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

For the first time Furuno's exclusive RezBoostTM technology is used in one of our Radar units, with impressive performance. With RezBoostTM set to MAX, the sharpness of a much larger open array antenna can be achieved.

Specifications

Antenna Size4 feet

Band
X

Power Usage
12-24 VDC

Range
96 nm

Antenna Type
Open Array

Beam Width
1.9 degrees

Power Output
100 W

What's in the Box:

• RSB137-125 Pedestal
• 001-512-620-00 15m Cable
• XN12A/4 4 feet Antenna

Powerful 100 Watt Transmission for Clear Radar Images

The Furuno DRS12ANXT radar delivers 100 watts of solid state power, ensuring crisp, reliable target detection even in challenging marine conditions. Its high transmission power enhances echo clarity, improving safety and navigation accuracy. Whether navigating busy harbors or open waters, this radar is engineered to offer precise situational awareness, making it an indispensable tool for any vessel.

Robust 4ft Antenna and 15-Meter Cable Design

Equipped with a 4-foot antenna, the Furuno DRS12ANXT provides optimal range and target resolution while maintaining a compact profile ideal for various vessel sizes. Its included 15-meter cable allows flexible installation, giving boat owners freedom to position the radar for maximum performance and convenience. This combination guarantees consistent signal quality and reliable operation during extended voyages.

Durability and Solid State Technology for Long-Term Use

Built with advanced solid state technology, the Furuno DRS12ANXT ensures low maintenance and high durability, crucial for demanding marine environments. Solid state radars offer superior reliability over traditional magnetron models, with faster start-up times and lower power consumption. This radar unit is designed to withstand harsh weather conditions, providing dependable service and enhancing vessel safety over time.
