Furuno DRS12AX 12kW UHD Digital Radar with Integrated Target Tracking and Lightweight Pedestal

DRS12AX 12kW UHD Digital Radar - Less Antenna and Cable

Pushing the boundaries of what is possible with conventional Radar technology, DRS12AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS12AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

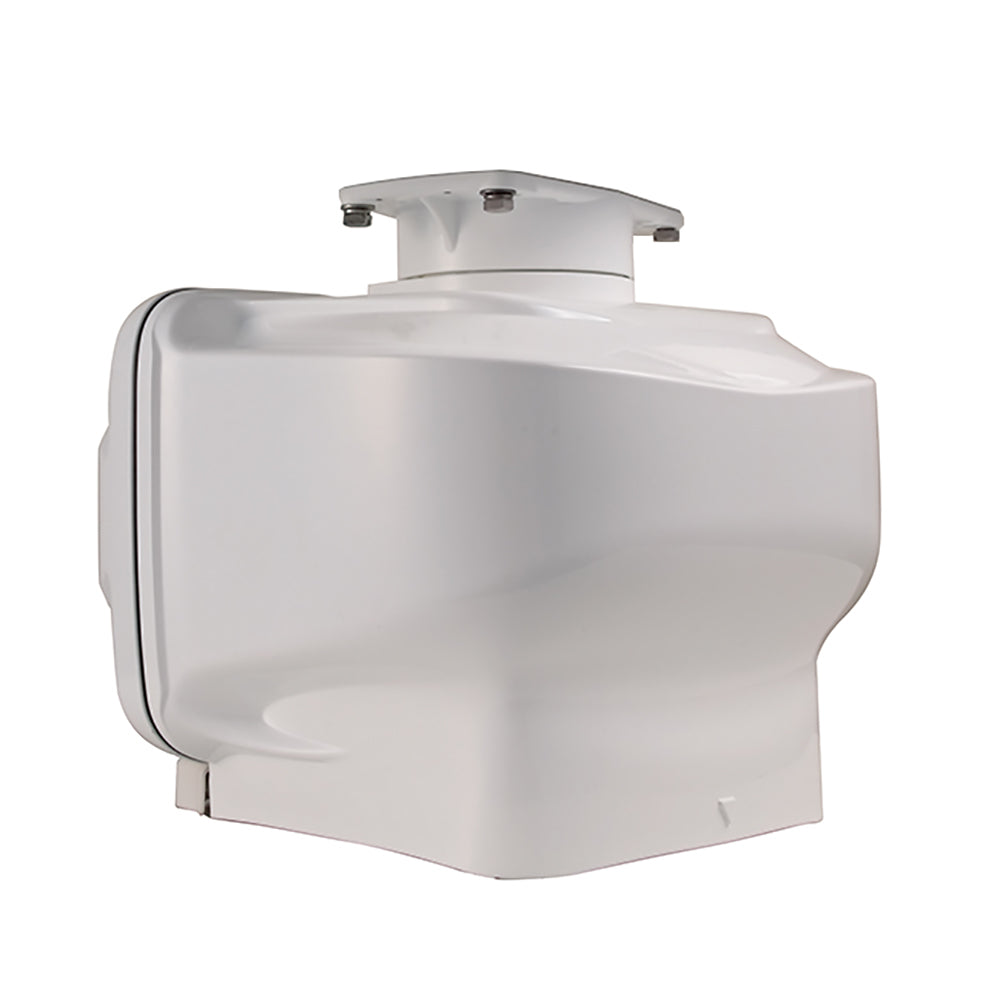

The redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking function adopted from our commercial Radar FAR3000, is also available on the DRS12AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Features:

• 12kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target Tracking
• Bird Mode
• Pedestal unit 20% lighter than previous unit, updated with new, low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• Smart-connector cable
• Choice of 3.5'/4'/6' Antenna
• Requires Signal/Power Cable
• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
• The DRS12AX is a 24V system; a converter will be required for use with 12V power systems

The Furuno DRS12AX "X-Class" 12kW UHD Digital Radar offers advanced detection capabilities for both short and long-range surveillance, with a maximum detection distance of up to 96 nautical miles. Designed to push the limits of conventional radar technology, this model features improved target detection accuracy and an enhanced short-range detection of just 20 meters, making it ideal for a variety of marine navigation scenarios. Its robust performance and innovative features ensure increased situational awareness and safety for vessel operators.
The redesigned pedestal unit is approximately 20% lighter than previous models, incorporating a new low-noise motor that simplifies installation and reduces maintenance. The smart-connector cable allows for a quick, hassle-free setup without the need to open the pedestal unit, saving time and reducing installation costs. The radar supports flexible antenna options, including 3.5 feet, 4 feet, and 6 feet, to suit different vessel sizes and operational needs.
Features include Fast Target Tracking derived from Furuno’s commercial FAR3000 radar, which instantly displays target course and speed vectors at the push of a button, significantly enhancing navigation safety. Bird Mode filters out clutter from bird activity, improving detection reliability in challenging conditions. The radar operates on a 24V power system, and a converter is required for use with 12V systems, making it adaptable to various vessel electrical configurations. Compatible with NavNet TZtouch and NavNet TZtouch2, this radar integrates seamlessly with Furuno’s navigation systems for a comprehensive marine solution.
The DRS12AX is designed for easy installation and maintenance, with no power supply unit required, lowering overall costs. Its compact design and lightweight pedestal make it suitable for a wide range of vessels, providing reliable, high-definition radar performance. Please note, this product may not be returned to the original point of purchase; contact Furuno directly for support or concerns regarding this product.

Features:

• 12kW Power Output for clear long-range detection

• Enhanced target detection, both short and long range

• Minimum detection range of just 20 meters

• Fast Target Tracking with course and speed vectors

• Bird Mode to reduce clutter from avian activity

• Lightweight pedestal unit, approximately 20% lighter with low noise motor

• No Power Supply Unit required, reducing overall costs

• Simple installation with smart-connector cable

• Selectable antenna sizes: 3.5', 4', and 6'

• Compatible with NavNet TZtouch and NavNet TZtouch2

• 24V system with optional converter for 12V power systems
