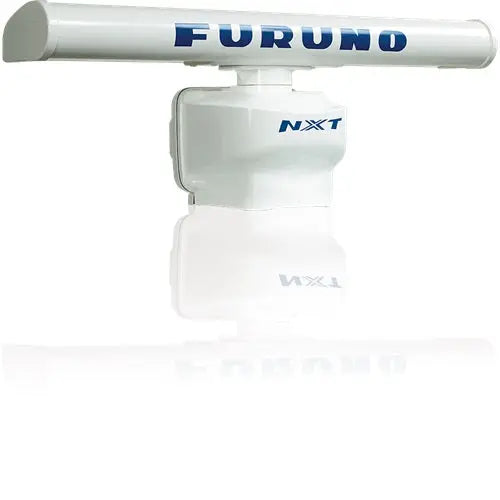

Furuno DRS6ANXT Doppler Radar Pedestal, Cable 4ft Antenna
Furuno DRS6ANXT Solid-State Doppler Radar with 4 feet Antenna
Model: DRS6ANXT/4
The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target AnalyzerTM and Fast Target TrackingTM utilizing Doppler technology. Combined with FURUNO exclusive RezBoostTM technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.
NXT is the first radar in the world to use the new Furuno exclusive Target AnalyzerTM function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target AnalyzerTM works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target AnalyzerTM can increase safety, as well as improve situational awareness.
Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.
For the first time Furuno's exclusive RezBoostTM technology is used in one of our Radar units, with impressive performance. With RezBoostTM set to MAX, the sharpness of a 2 degree beam width can be achieved.
Specifications
Antenna Size4 feet
Band
X
Power usage
12-24vDC
Range
72nm
Antenna type
Open array
Beam width
1.9 degrees
Power output
25 watt
What's in the Box:
The Furuno DRS6ANXT Doppler Radar pedestal offers exceptional reliability designed specifically for marine environments. Equipped with a 4ft antenna and a durable cable, this radar system delivers accurate target detection and improved situational awareness. Furuno's innovative technology enhances radar signal processing, providing clear, real-time images that enable safer navigation through challenging waters. Its pedestal design allows easy installation, making it a favorite choice for both recreational and commercial vessels seeking dependable radar solutions.
With advanced Doppler processing, the Furuno DRS6ANXT radar detects and highlights moving targets effectively, distinguishing them from stationary objects. This capability helps reduce collision risks by providing early warnings of nearby vessels or obstacles. The included 4ft antenna ensures wide coverage and better resolution, supporting seamless integration with other marine electronics. By offering enhanced visibility in adverse weather or low-light conditions, Furuno’s system undoubtedly boosts safety on board.
The Furuno DRS6ANXT combines a compact pedestal with a 4ft antenna and 4ft cable for straightforward setup and flexible mounting options. Its lightweight structure does not compromise durability, making it adaptable to a variety of vessels without adding excessive weight or bulk. The system interfaces smoothly with Furuno’s multifunction displays and other marine instruments, streamlining your navigation setup. This product offers a practical balance of advanced radar functions and simplicity, ensuring marine users achieve both performance and ease of use.
