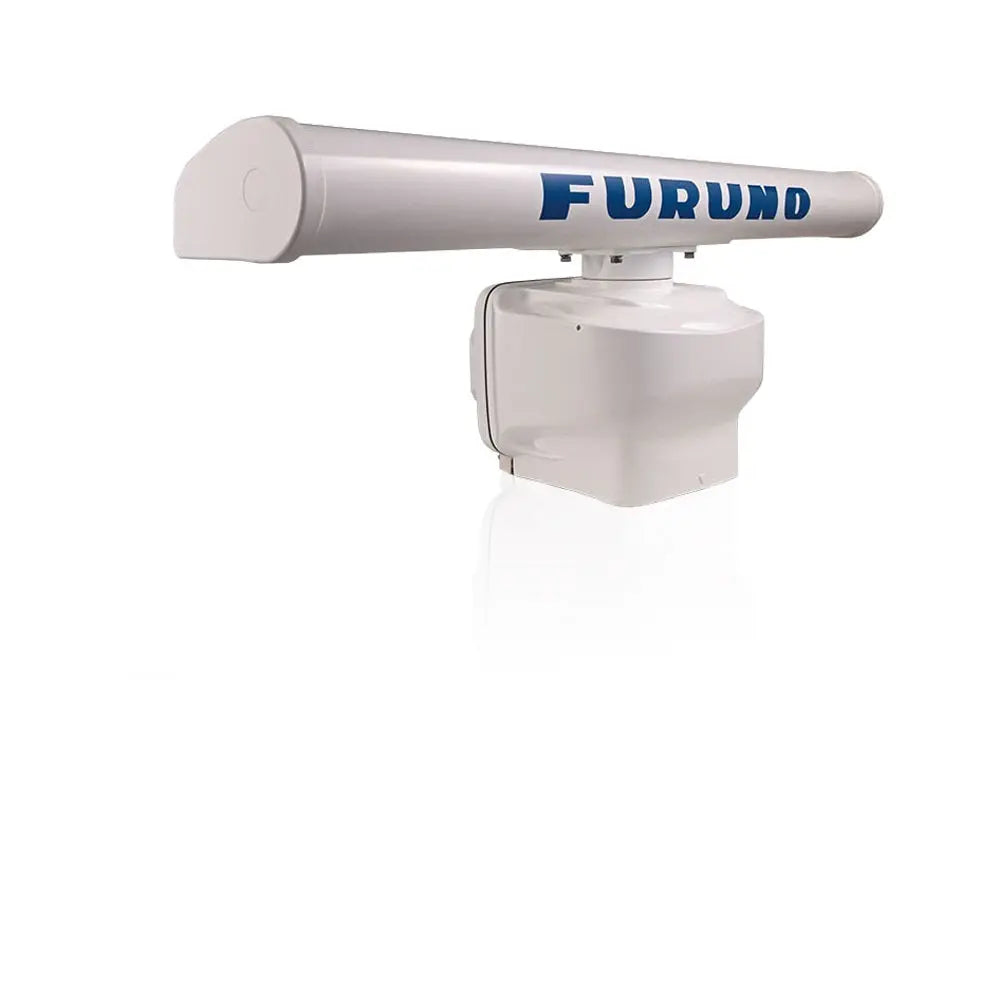

Furuno DRS6AX 6Kw X-BAND Pedes Pedestal And Cable 3.5ft Antenna

Furuno DRS6AX 6Kw X-BAND Radar: Advanced Marine Navigation Solution

Furuno DRS6AX 6Kw X-BAND Pedes Pedestal And Cable 3.5ft Antenna

Furuno DRS6AX 6kw UHD Digital Radar with 3.5 feet Antenna and 15M Cable

Model: DRS6AX/3

• 6kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target TrackingTM
• Bird Mode
• New pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• New smart-connector cable
• Choice of 3.5 feet/4 feet/6 feet Antenna Sold Seperately
• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
• The DRS6AX is a 24V system; a converter will be required for use with 12V power systems

Pushing the boundaries of what is possible with conventional Radar technology, DRS6A X-Class marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6A X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous DRS6A model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target TrackingTM function adopted from our commercial Radar FAR3000, is also available on the DRS6A X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Specifications

Antenna rotation speed24/36/48 rpm range coupled or 24rpm fixed

Beam width
2.3d Horizontal 22d Vertical

Range scales
0.0625 to 120 nm

Waterproofing
IP56

Power supply
24vDC 4.0A

What's in the Box:

• 001-376-480-00 15m Cable
• RSB134-112 Pedestal
• Xn10A/3.5 3.5 feet Antenna

High-Performance 6Kw X-BAND Radar Technology

The Furuno DRS6AX radar integrates a powerful 6Kw X-BAND transmitter to deliver exceptional target detection and resolution. This advanced marine radar technology is ideal for close-range navigation, ensuring clear identification of small targets like buoys and vessels in congested waters. With its superior signal processing capabilities, it helps enhance safety and situational awareness in diverse maritime environments, making the Furuno DRS6AX a reliable choice for professional and recreational users alike.

Durable Pedestal and Cable Integration

Designed for easy installation and lasting performance, the included pedestal and cable provide a robust and secure mounting solution for the Furuno DRS6AX system. The pedestal offers stable support, reducing vibration which can affect radar accuracy, while the 3.5ft cable ensures optimal connectivity between the antenna and radar processor. This thoughtful integration simplifies setup and maintenance, supporting consistent operation during long voyages or demanding conditions at sea.

Compact 3.5ft Antenna for Efficient Coverage

The Furuno DRS6AX features a compact 3.5ft X-BAND antenna that balances size and performance for effective radar coverage. This antenna design allows for easier installation on various vessels without sacrificing range or detection capabilities. Its streamlined form helps reduce wind resistance and complements vessel aesthetics, while delivering precise data needed for navigation and collision avoidance. This makes the Furuno radar an excellent solution for boats requiring reliable yet unobtrusive radar equipment.
