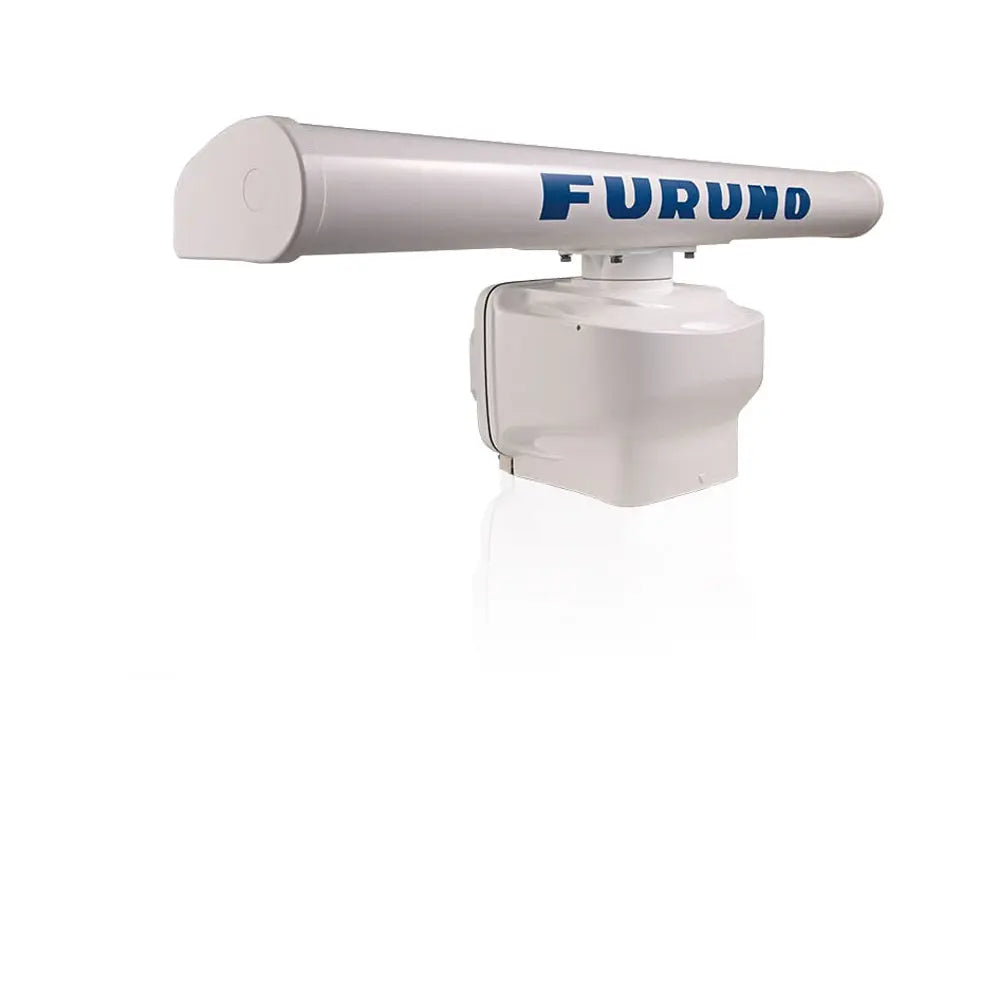

Furuno DRS6AX 6Kw X-BAND Pedes Pedestal And Cable 6ft Antenna

Furuno DRS6AX Radar Antenna: High Performance X-BAND Marine Solution

Furuno DRS6AX 6Kw X-BAND Pedes Pedestal And Cable 6ft Antenna

Furuno DRS6AX 6kw UHD Digital Radar with 6 feet Antenna and 15M Cable

Model: DRS6AX/6

• 6kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target TrackingTM
• Bird Mode
• New pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• New smart-connector cable
• The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)

Pushing the boundaries of what is possible with conventional Radar technology, DRS6A X-Class marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6A X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous DRS6A model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target TrackingTM function adopted from our commercial Radar FAR3000, is also available on the DRS6A X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Specifications

Antenna rotation speed24/36/48 rpm range coupled or 24rpm fixed

Beam width
1.35d Horizontal 22d Vertical

Range scales
0.0625 to 120 nm

Waterproofing
IP56

Power supply
24vDC 4.0A

What's in the Box:

• 001-376-480-00 15m Cable
• RSB134-112 Pedestal
• XN13A/6 6 feet Antenna

Advanced Radar Technology by Furuno

The Furuno DRS6AX 6Kw X-BAND radar antenna is designed to offer superior performance for marine navigation. Featuring a powerful 6Kw transmitter, this radar unit provides excellent target detection even in adverse weather conditions. By operating on the X-BAND frequency, the antenna ensures high-resolution imaging to detect other vessels, landmasses, and obstacles, enhancing maritime safety. Furuno’s trusted technology blends reliability with cutting-edge features, making the DRS6AX a preferred choice for professional mariners and recreational boaters alike.

Integrated Pedestal and 6ft Cable for Easy Installation

This Furuno radar system comes complete with a sturdy pedestal mount and a 6ft antenna cable for convenient installation on a variety of vessels. The pedestal is crafted for durability and stability, ensuring the antenna stays securely in place even under harsh sea conditions. The included cable length is optimal for integrating the radar unit seamlessly with your marine electronics console, reducing clutter and maintaining a clean setup. This thoughtful design promotes ease of maintenance and long-term operational reliability.

Enhanced Navigation and Safety Features

The Furuno DRS6AX radar antenna enhances navigational safety by offering precise detection of targets at close and long ranges. Its advanced signal processing reduces clutter and interference, allowing users to focus on vital information. Mariners benefit from improved situational awareness, especially in busy waterways and low visibility environments. This radar system supports efficient route planning and collision avoidance, providing peace of mind on every trip. Furuno’s commitment to quality ensures a product that meets the demands of serious marine professionals.
