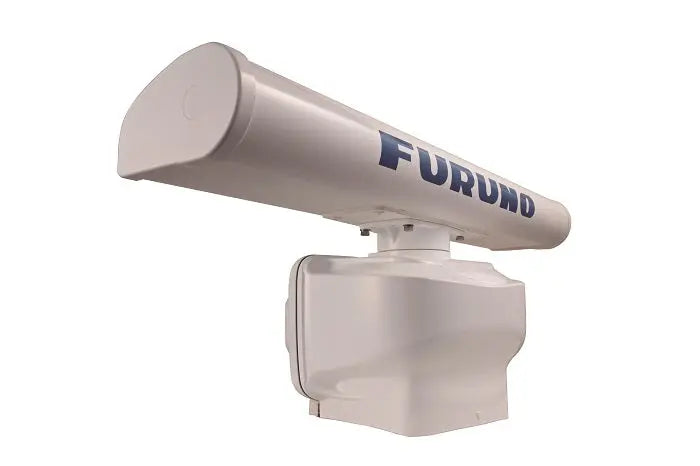

Furuno DRS6AX 6Kw X-BAND Pedes Pedestal Cable Sold Separately Effective 06/20/2022

Furuno DRS6AX 6Kw X-BAND Pedes Pedestal Cable Sold Separately Effective 06/20/2022

Furuno DRS6AX 6kw Open array Pedestal Only, No Cable

• 6kW Power Output


• Enhanced target detection, both short and long range


• Minimum detection range of just 20 m


• Fast Target Tracking


• Bird Mode


• New pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor


• No PSU required, decreasing total costs


• Easy installation without the need to open pedestal unit


• Choice of 3.5'/4'/6' Antenna Sold Seperately


• The DRS6AX is a 24V system; a converter will be required for use with 12V power systems


• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)

Pushing the boundaries of what is possible with conventional Radar technology, DRS6A X-Class marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6A X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous DRS6A model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking function adopted from our commercial Radar FAR3000, is also available on the DRS6A X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Requires Antenna and cable Sold Seperately

Antenna rotation speed
24/36/48 rpm range coupled or 24rpm fixed

Beam width
XN10A: 2.3d Horizontal 22d Vertical
XN12A: 1.9d Horizontal 22d Vertical
XN13A: 1.4d Horizontal 22d Vertical

Range scales
0.0625 to 120 nm

Waterproofing
IP56

Power supply
24vDC 4.0A

What's in the Box:

• RSB134-112 Pedestal
