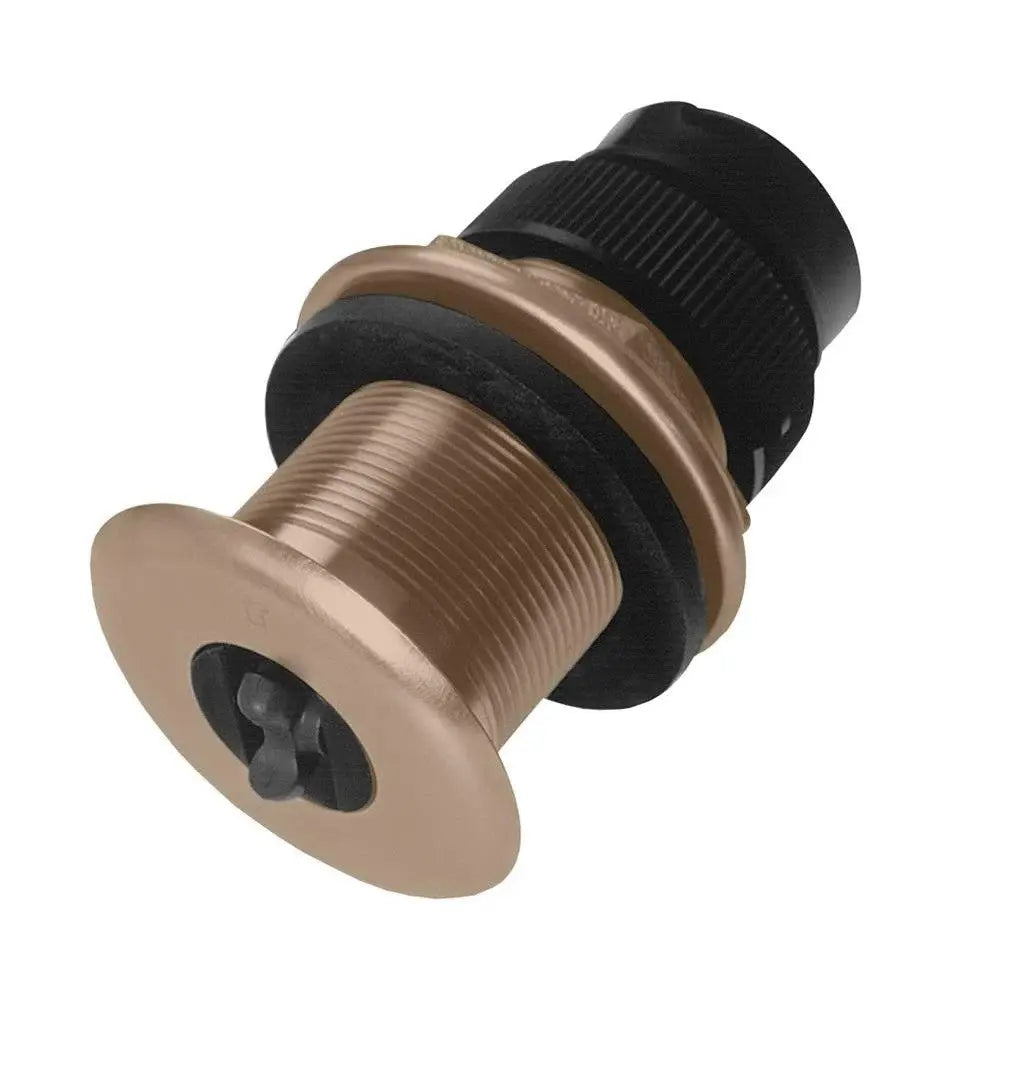

Furuno DST810MSF NMEA 2000 Airmar Smart Transducer Bronze Thru Hull

Furuno DST810MSF: Advanced NMEA 2000 Bronze Thru Hull Transducer

Furuno DST810MSF NMEA 2000 Airmar Smart Transducer Bronze Thru Hull

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.

Model: DST-810MSF

• 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
• Integrated attitude sensor for heel and trim benefits sailing and power boats
• Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
• DST810 stores configurations and delivers data to the NMEA 2000(R) network.
• Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
• Popular depth sensor for shallow water performance.

Specifications

Acoustic WindowUrethane

Hull Deadrise
Up to 22 deg

Data Update Rate
Depth 1X/second

Data Update Rate
Speed 5X/second

Attitude Accuracy
+/- 1 deg nominal after sensor calibration

Depth Frequency
235 kHz

Minimum Depth Range
0.5 m (1.6 feet)

Maximum Depth Range
Up to 100 m (330 feet)-NMEA 2000(R)

Speed Range
Up to 45 knots

Pressure Rating
3 m (10 feet)

Pulse Rate
20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile

Supply Voltage
9 VDC to 16 VDC-per NMEA 2000

Supply Current
<200 mA-per NMEA 2000(R)

Wireless Protocol
Bluetooth Low Energy (BLE)

Wireless Range
Up to 30 feet depending on mount location

Standard Cable Length
6 m (20 feet) DeviceNet-NMEA 2000(R)

Temperature Sensor Accuracy
+/-0.5 degC (+/-1.8 degF)

Temperature Sensor Range
-10 degC to 40 degC (14 degF to 104 degF)

NMEA 2000 Load Equivalency Number (LEN)
3

What's in the Box:

• DST-810 Insert
• Bronze Housing

High-Performance Transducer with NMEA 2000 Compatibility

The Furuno DST810MSF is a cutting-edge marine transducer featuring full compatibility with the NMEA 2000 network standard. Designed to integrate seamlessly with modern marine electronics, it offers reliable, real-time water temperature, speed, and depth data. Its compatibility ensures quick and easy connection to a vessel's onboard systems, enhancing navigation and fishfinding capabilities. With this smart transducer, operators get precise and instant access to critical underwater information without needing complicated setup or additional converters.

Durable Bronze Thru Hull Construction for Longevity

Crafted with a robust bronze thru hull fitting, the Furuno DST810MSF guarantees long-lasting performance in harsh marine environments. Bronze is highly corrosion-resistant, making it ideal for saltwater applications where durability is essential. The thru hull design allows for direct vessel integration below the waterline, improving the transducer's sensitivity and measurement accuracy. By choosing this transducer, boat owners benefit from reduced maintenance and extended service life, ensuring dependable data transmission season after season.

Integrated Airmar Smart Technology for Accurate Data

Equipped with Airmar's smart transducer technology, the Furuno DST810MSF delivers highly precise measurements of vessel speed, depth, and water temperature. This integration enhances the reliability of the data by automatically adjusting to different water conditions and vessel speeds. The smart sensor reduces noise and interference, offering cleaner signal returns and more accurate readings. This makes it an ideal choice for professional mariners and serious enthusiasts seeking dependable performance during cruising, fishing, or racing activities.
