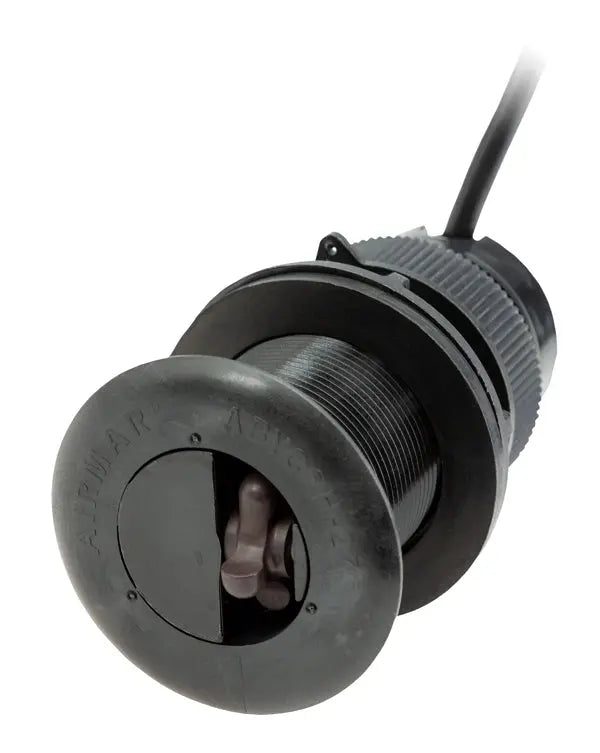

Furuno DST810PSF NMEA 2000 Airmar Smart Transducer Plastic Thru Hull

Overview of Furuno DST810PSF Smart Transducer Features

Furuno DST810PSF NMEA 2000 Airmar Smart Transducer Plastic Thru Hull

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Plastic 235 kHz transducer.

Model: DST-810PSF

• 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
• Integrated attitude sensor for heel and trim benefits sailing and power boats
• Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
• DST810 stores configurations and delivers data to the NMEA 2000(R) network.
• Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
• Popular depth sensor for shallow water performance.

Specifications

Acoustic WindowUrethane

Hull Deadrise
Up to 22 deg

Data Update Rate
Depth 1X/second

Data Update Rate
Speed 5X/second

Attitude Accuracy
+/- 1 deg nominal after sensor calibration

Depth Frequency
235 kHz

Minimum Depth Range
0.5 m (1.6 feet)

Maximum Depth Range
Up to 100 m (330 feet)-NMEA 2000(R)

Speed Range
Up to 45 knots

Pressure Rating
3 m (10 feet)

Pulse Rate
20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile

Supply Voltage
9 VDC to 16 VDC-per NMEA 2000

Supply Current
<200 mA-per NMEA 2000(R)

Wireless Protocol
Bluetooth Low Energy (BLE)

Wireless Range
Up to 30 feet depending on mount location

Standard Cable Length
6 m (20 feet) DeviceNet-NMEA 2000(R)

Temperature Sensor Accuracy
+/-0.5 degC (+/-1.8 degF)

Temperature Sensor Range
-10 degC to 40 degC (14 degF to 104 degF)

NMEA 2000 Load Equivalency Number (LEN)
3

What's in the Box:

• DST-810 Insert
• Plastic Housing

Innovative NMEA 2000 Integration for Seamless Connectivity

The Furuno DST810PSF is designed with NMEA 2000 networking capabilities, allowing it to communicate effortlessly with modern marine electronics. This integration streamlines the transmission of depth, speed, and temperature data to compatible displays, ensuring real-time accuracy. Boaters benefit from simplified connections and reduced wiring complexity. Whether you're upgrading existing systems or installing new equipment, the Furuno DST810PSF offers plug-and-play ease that enhances onboard performance without complicated setups.

Durable Plastic Thru Hull Design for Long-lasting Performance

Constructed with a robust plastic housing, the Furuno DST810PSF is engineered to withstand harsh marine environments. The plastic thru hull design offers resistance against corrosion, ensuring reliable operation even in saltwater conditions. Its streamlined profile minimizes drag and fouling, which maintains consistent data accuracy. This durability reduces maintenance needs and prolongs the life of the transducer, making it an excellent choice for boat owners seeking dependable, long-term underwater sensor solutions.

Accurate Airmar Smart Transducer Sensing Technology

The Furuno DST810PSF incorporates advanced Airmar sensing technology to deliver precise depth and speed measurements critical for navigation and safety. Its smart transducer capabilities provide instant feedback without delays, enhancing situational awareness on the water. The sensor is capable of handling a broad frequency range for improved response times and better data granularity. This accuracy supports safer boating experiences by providing consistent, reliable information required for optimal vessel performance.
