Furuno RD33 Display

Explore the Features of the Furuno RD33 Display

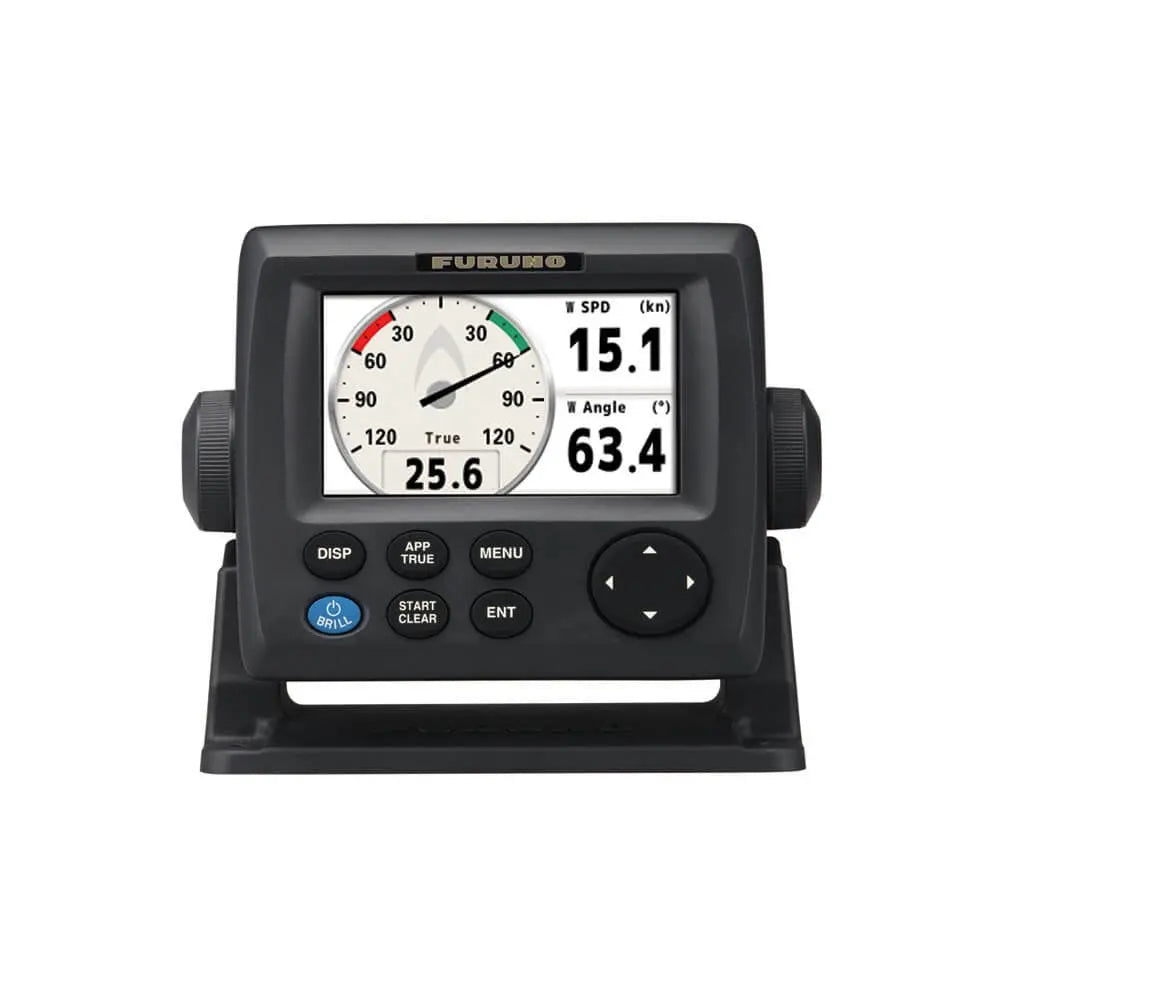

Furuno RD33 Display

The RD33 is a navigational data organizer that allows the operator to select the perfect way t0 display data from interfaced equipment such as GPS, chartplotter, radar, fish finder, autopilot, instruments and other sensors including engine information. The high contrast, color 4.3" LCD may be installed in a compact space, remote from its sources. The screen is impressively bright, remarkably crisp and easy to read. Various display modes are available including Speedometer, Highway and Text. The text mode presents up to six of the most necessary types of data. The display layout can be customized for your specific needs.

This versatile product can also be added to a NavNet 3D system, displaying a variety of navigation data from the CAN bus network.

The RD33 accepts a wide variety of navigation data and displays them in numerical and graphic formats. You may freely select and arrange which data is displayed on the screen. Furthermore, seven patterns of customized display set tings can be stored in the memory to give speedy access and convenience while onboard.

The RD33 features a visually appealing fresh new look, combining easy access with user functionality. Thanks to the bright, high-resolution LCD, the RD33 provides an easy-to-read display to monitor information from remote equipment, through an intuitive graphical user interface.

Standard Features:

• 4.3" Sunlight Viewable color LCD (Brightness: 700 cd)
• Enhanced data legibility thanks to large characters and high resolution display
• Customizable display format from Full-screen to a 6-way split screen presentation
• Supports both CAN bus and NMEA0183 interfaces
• Two independent CAN bus input and output ports incorporated for daisy chain networking
• Internal NMEA0183/CAN bus conversion capability available
• Simultaneous alarm monitoring capabilities for Water Temp, Depth, Speed, Arrival, Anchor, XTE, Trip, Odometer, Timer and Countdown Timer, Roll & Pitch, Wind Speed, Wind Direction, and Battery.

High-Resolution Display and User Interface

The Furuno RD33 Display stands out with its vibrant 10.4-inch high-resolution color LCD screen, providing excellent visibility even under direct sunlight. The intuitive user interface allows easy navigation through menus and settings, making it accessible for both professional mariners and recreational boaters. The display offers crisp chart rendering and versatile viewing modes, showing navigational data clearly and precisely to enhance situational awareness on the water.

Seamless Integration with Furuno Systems

Designed to integrate smoothly with other Furuno marine equipment, the RD33 supports multiple data sources via the NMEA 2000 network standard. This capability enables it to display radar, depth, speed, and GPS information in one consolidated interface. Such integration simplifies navigation and monitoring tasks, allowing mariners to get comprehensive information without switching between devices, improving safety and efficiency.

Durability and Marine-Grade Construction

Built specifically for the challenging marine environment, the Furuno RD33 features a rugged design rated for water resistance and temperature extremes. Its sturdy housing and glass display are engineered to withstand harsh conditions while maintaining operational reliability. This durability ensures long-term performance, making the RD33 a trusted choice for those requiring a dependable navigation display in all weather conditions.
