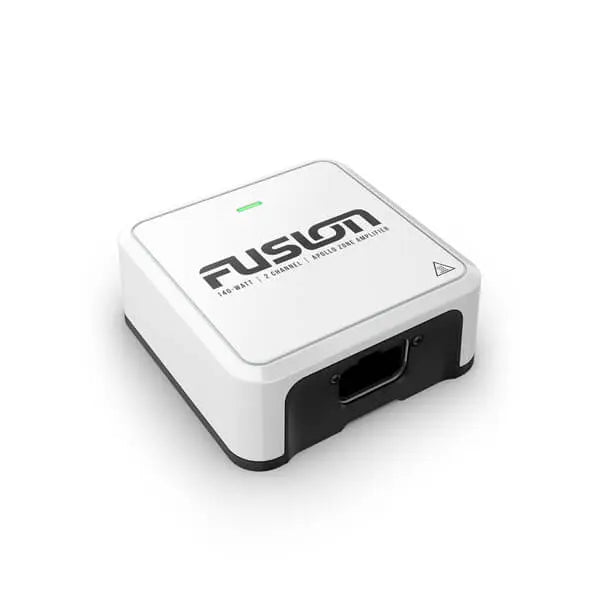

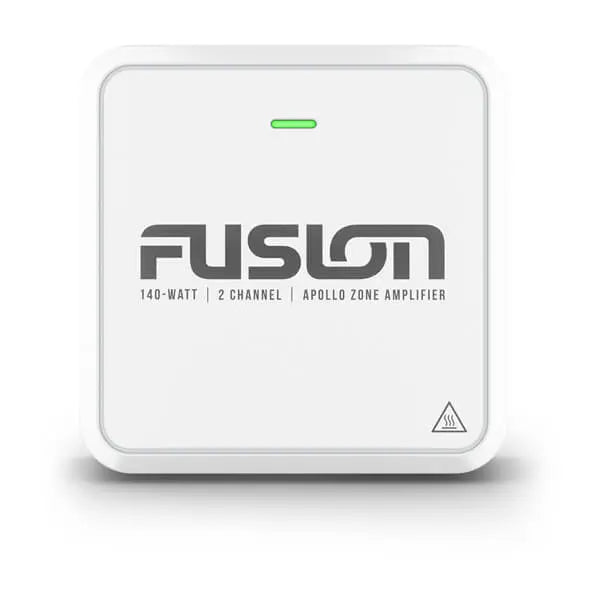

Fusion Apollo AP-DA214 Zone Amplifier 2 Channel 140 Watt

Explore the Power and Versatility of the Fusion Apollo AP-DA214 Zone Amplifier

Fusion Apollo AP-DA214 Zone Amplifier 2 Channel 140 Watt

Fusion(R) Apollo AP-DA214 Marine Amplifiers, Zone Marine Amplifier

Model: 010-02569-00

The amplifier's circuit board has been specially coated to provide extra protection from the marine elements.

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.

Easily install the amplifiers on board with the included mounting brackets.

The amplifiers are designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration and UV.

The compact zone amplifier provides audio zone expansion for high-quality sound in more areas on your boat. It's compatible with 12- and 24-volt electrical systems.

Note: Fusion DSP-enabled marine stereo (Apollo RA770, Apollo RA670, Apollo WB670, MS-RA210) and Fusion speakers/subwoofers required.

Specifications

Physical dimensions without bracket (LxWxH)3.94 x 3.94 in x 1.57 in (100 x 100 x 40 mm)

Physical dimensions with bracket (LxWxH)
3.94 in x 4.53 in x 1.89 in (100 x 115 x 48 mm)

Weight
1.01 lb (460 g)

Water Rating
IPX7

Amplifier class
Class-D

CEA-2006 power rating
20 watt RMS x 2 @ 14.4 V input - 4 ohm < 1% THD

Total rated power output - 2 ohm (watts)
30 watt RMS x 2 @ 14.4 V input - 2 ohm < 1% THD

Total rated power output - 4 ohm Bridged (watts)
NA

Peak power (watts)
140 watts

Input sensitivity
0.45 V RMS

Input impedance
9k Ohm

Operating voltage
10.8 V - 32 V DC

Current consumption (StandBy)
< 1 mA @ 14.4 V input

Current consumption (Idle)
< 0.04 A @ 14.4 V input

Current consumption (Max)
10 A

Fuse rating
16 A electronic fuse (no replacement necessary)

Ignition Safety Protected (SAE J1171)
Yes

Protection circuits
Reverse voltage

Unmatched Audio Performance with Fusion Apollo

The Fusion Apollo AP-DA214 zone amplifier offers outstanding audio performance with its 2 channel 140 watt output. Designed to deliver high-fidelity sound, this amplifier enhances your audio experience whether on the water or in a home setting. The Fusion Apollo brand is well-known for innovation and quality, ensuring that every detail contributes to crystal-clear sound, deep bass, and balanced tones. Its robust design supports a broad range of speakers and audio sources, making it the perfect pick for any audio enthusiast looking for reliable power and exceptional sound clarity.

Flexible Connectivity and Zone Control

The Fusion Apollo AP-DA214 boasts versatile connectivity options that allow seamless integration with multiple audio systems. This 2 channel amplifier allows users to control separate zones independently, offering customizable audio settings for different environments. Whether it's a boat cabin or an outdoor deck, this zone amplifier can manage distinct audio outputs, creating personalized listening zones. Its easy-to-use interface and comprehensive connectivity ensure the Fusion Apollo AP-DA214 meets diverse installation requirements, delivering consistent performance across zones without compromise.

Durability and Design Built for Marine Environments

Built with marine-grade components, the Fusion Apollo AP-DA214 zone amplifier withstands harsh conditions, including moisture, salt, and vibrations typically found on boats. Its rugged yet stylish design complements marine audio setups while providing long-lasting reliability. This amplifier features advanced heat dissipation technology and corrosion-resistant materials that maintain optimal functionality over time. The Fusion Apollo AP-DA214 not only excels in delivering power and sound quality but also ensures resilience and durability, making it a trusted choice for marine audio enthusiasts.
