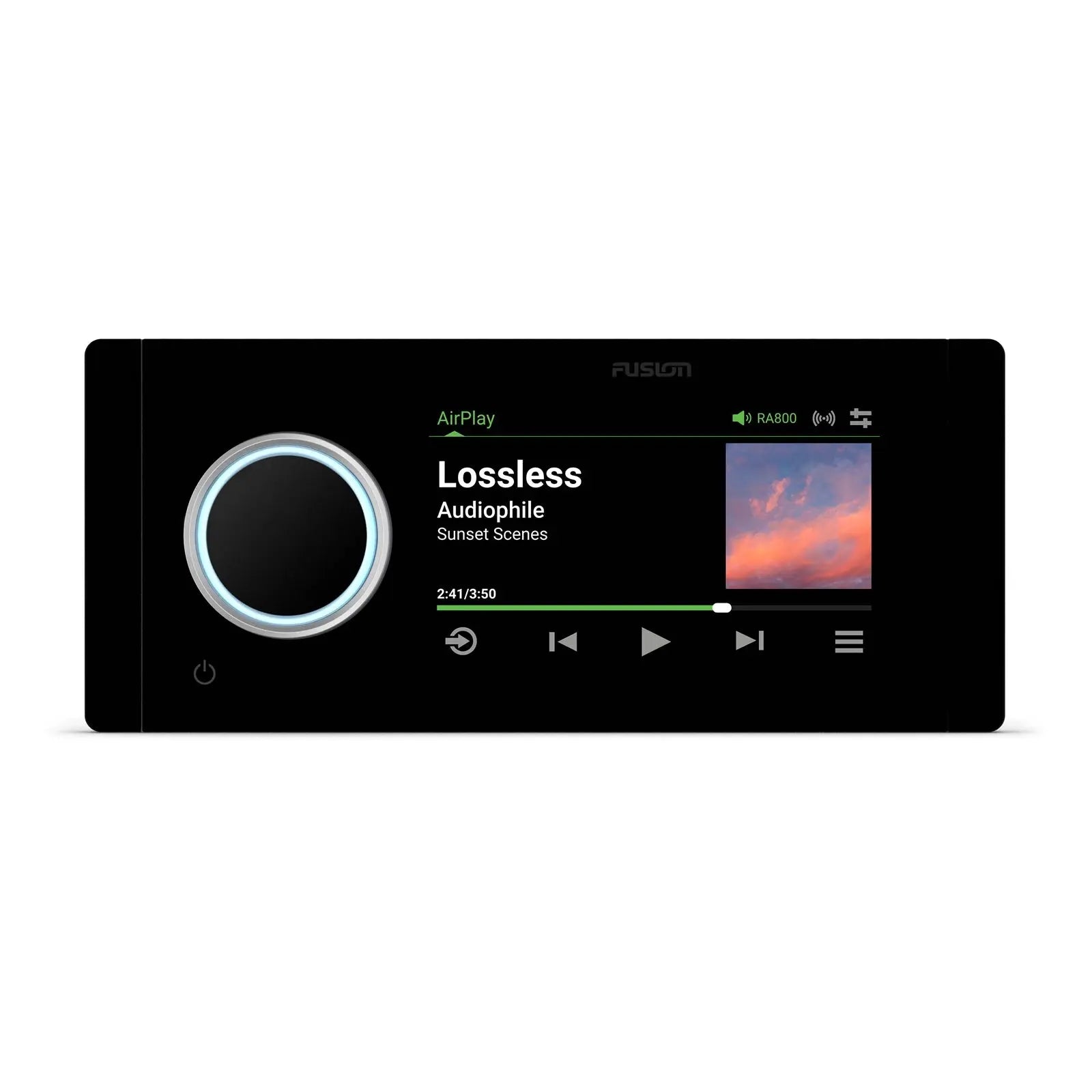

Fusion Apollo MS-RA800 Marine Stereo

Fusion Apollo MS-RA800 Marine Stereo

Model: 010-02937-00

• SLEEK, MODERN DESIGN FEATURES EDGE-TO-EDGE GLASS DISPLAY


• ENJOY PREMIUM WI-FI STREAMING WITH HIGH-RESOLUTION LOSSLESS AUDIO


• BUILT-IN CLASS-D AMPLIFIER BOASTS 50% MORE POWER OUTPUT


• SEE QUICKER RESPONSE WITH 8 TIMES FASTER DIGITAL PROCESSING SPEED


• SHARE ONBOARD AUDIO SOURCES WITH STEREO GROUPING


• REMOTELY CONTROL YOUR MUSIC FROM COMPATIBLE DEVICES

It’s the most powerful and technologically advanced Fusion® marine stereo ever. With audiophile-level components and a built-in amplifier providing twice the power of the predecessor RA770, this system delivers lossless audio performance of unmatched clarity. Plus, its Wi-Fi® connectivity supports seamless AirPlay® audio streaming on your boat.

Our first marine stereo to support high-resolution lossless audio (up to 24 bits at 96 kHz), RA800 offers unparalleled sound quality — supported by Wi-Fi technology for seamless audio streaming.

The built-in Class-D amplifier can deliver 4 x 40 watts RMS (all channels driven) with less than 0.1% total harmonic distortion at 4 ohms — producing more than 50% more power output1 than its predecessor.

The stereo’s 4.3-inch LCD touchscreen display offers notable improvements1 in image resolution, color saturation, viewing angles and readability in bright daylight.

Connect your RA800 stereo with other Apollo Series stereos to create a network on board your boat. Enjoy advanced features, including stereo grouping, combined volume control, power options and Home Zone control.

Take advantage of a wide variety of source options available, including AirPlay streaming from Apple®, BLUETOOTH® connectivity, HDMI ARC, DAB+ radio tuner, USB connections, AM/FM radio and AUX inputs.

Easily network your RA800 stereo with a compatible Garmin MFD via NMEA 2000® networking for integrated audio control at the helm. Or use the Fusion® Audio app to wirelessly control your music from a compatible Garmin smartwatch or other smart device.

QUICK SWITCH FROM RA770 TO RA800: With an identical form factor and wiring loom as the predecessor RA770, upgrading and installation are simple with RA800.

Specifications

General

Physical dimensions (Height)
3.23" (82 mm)

Physical dimensions (Width)
7.56" (192 mm)

Physical dimensions (Depth)
4.7" (119.4 mm)

Weight
1.37 lbs (620 g)

Control Surface Dust/Water Rating (when properly installed)
IPX6 and IPX7

Rear Dust/Water Rating (when properly installed)
IPX3

Operating temperature range
-20 to 70° C

Current draw (max)
25 A at 14.4 V; 15A at 28.8 V

Warranty
3 years

Networking

NMEA 2000® LEN
2 (65 mA)

BLUETOOTH® wireless range
up to 30 ft

ANT® wireless range
Up to 10 ft

Wireless frequencies/protocols
WiFi 2.4Ghz : +12dBm nominal MIMO 2 x 2 BLUETOOTH®: 2.4 GHz @ +10 dBm nominal ANT®: 2.4GHz 0dBm nominal

Audio

Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD)
40 W x 4

Electrical Features

Power Input
10.8 to 32 Vdc

Compass-safe distance
5.9" (150 mm)

Stereo Features

Display size
4.3" (109 mm)

Display type
capacitive touchscreen color LCD

Display resolution
800 x 480

Optically bonded display
Yes

Built-in amplifier
Class D (4 Ohms)

Built-in Wi-Fi®
Yes

Built-in Digital Signal Processing (DSP)
Yes (with custom DSP profile setup using Fusion-Link app)

Stereo networking
Yes (wired or wireless)

Fusion-Link control
Yes (MFD, smart device and Garmin watch)

Multi-Zone technology
4 zones

BLUETOOTH® wireless technology
Yes

ANT® wireless technology
Yes

Multi-language interface
Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish

Software updates
Over-the-air updates via Fusion-Link app (when connected to wireless network router) / USB

Sources

Supported sources
AM, FM, BLUETOOTH®, Apple AirPlay® 2, HDMI ARC, USB audio, iPhone, iPod, AUX x2

Supported audio formats (USB)
MP3, AAC, M4A, FLAC, WAV

Connections

Auxiliary inputs (RCA)
2

HDMI ARC Ports
1

Ethernet ports
1

NMEA 2000® ports
1

USB 2.0 ports
1 (USB-C)

AM/FM ports (Motorola antenna connector)
1

Speaker connections
4 (2 zone amplified)

RCA pre-out (left, right and subwoofer - requires external amplification)
4 zones

Line out (requires external amplification)
4 (L + R per zone)

Subwoofer out (requires external amplification)
4 (1 mono output per zone)

What's in the Box:

• Fusion Apollo MS-RA800 marine stereo


• Mounting gasket


• Four 8-gauge self-tapping screws


• Two screw covers


• Power and speaker wiring harness


• Auxiliary-in, line-out and subwoofer-out wiring harnesses


• 6 ft (2 m) drop cable for the NMEA 2000® network


• Dust cover


• Documentation
