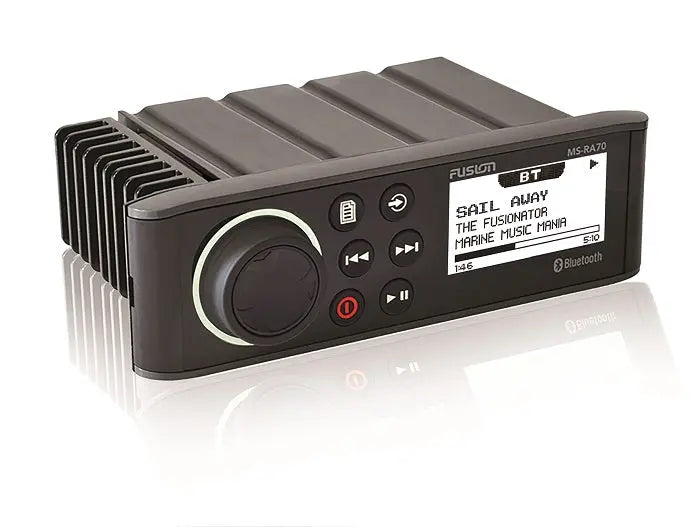

Fusion MS-RA70 Stereo

Fusion MS-RA70 Stereo: Elevate Your Marine Audio Experience

Fusion MS-RA70 Stereo

Fusion MS-RA70 Marine Stereo Bluetooth Fusion Link

Model: 010-01516-01

• 4x50W Class A Amplifier
• Single Din rear and face will fit into a traditional car stereo hole cut-out
• AM/FM/iPhone/iPod/Android interface
• Built in high level Bluetooth
• Will work with FusionLink Bluetooth Remote Control App.
• Rear USB connection
• Full Apple or Android Interface via UNIDOCK or Panel Mount USB Cable
• Optically Bonded Glass Display
• Front IPx6 when mounted
• 2-zone with one discrete Pre-Out and Sub-out
• 1-AUX in.

WIRELESS CONTROL - BLUETOOTH
Download the free Apple or Android FUSION-Link remote control app for bluetooth from either iTunes or Google Play to enjoy both wireless streaming and stereo control functionality.

MULTI-ZONE TECHNOLOGY
The FUSION MS-RA70 offers independent control of the volume level in two separate audio zones. Multi-Zone Technology also includes functionality for naming zones, linking zones or setting volume limits. An additional line out and sub out are included and linked to Zone 1 for the optional inclusion of an amplified speaker set or subwoofer.

A2DP BLUETOOTH AUDIO STREAMING
Stream music from any compatible device to the RA70. Enjoy your favorite apps such as Pandora, Spotify and Apple Music with the ability to skip tracks and adjust volume from both the stereo face and Bluetooth app remote.

APPLE AUDIO PLAYBACK
Play music from the latest IAP2 supported Apple devices directly from the RA70 via USB. Charge the device via the FUSION USB connector or include a FUSION UNI-Dock for waterproof protection. Control is limited to play, pause and skip from both the stereo interface and FUSION Bluetooth app remote.

ANDROID AOA AUDIO PLAYBACK
Connect and enjoy music from any supported Android AOA device via USB. Control is limited to play, pause and skip from both the stereo interface and FUSION Bluetooth app remote.

USB MEDIA
Music stored on a compatible USB flash drive can be enjoyed through the RA70 with support for MP3, M4A and AAC included. Access your music folders and pre saved playlists via the stereo and Bluetooth app remote interface.DAB Radio Requires an additional module MS-DAB100

DAB+ READY
The MS-RA70 is engineered to support the latest DAB and DAB+ broadcasts with the addition of an optional module. Enjoy high quality radio streaming wherever DAB and DAB+ is supported. The FUSION RA70 offers the ability to scan stations and set your favorite pre-sets for easy listening on the open seas.

DIN SIZED FORM FACTOR
Engineered to seamlessly replace any standard DIN sized car stereo with the FUSION marine option. The low profile design allows for easy integration with FUSION without the need to redesign the dash space.

SIDEFIN VCT COOLING
A World-First innovation from FUSION, the MS-RA70 features advanced amplifier component placement inside the heatsink, with the added benefit of vertical circulation technology (VCT) which circulates airflow for improved efficiency.

OPTICALLY BONDED LCD DISPLAY
The widescreen LCD display is optically bonded to improve durability and eliminate the possibility of condensation or fogging appearing while out on the water. The MS-RA70’s LCD display is able to resist extreme temperatures and operate in direct sunlight.

IPX7 WATERPROOF
When mounted correctly the front panel of the RA70 is rated to withstand the marine environment like no other stereo.

FLAT OR FLUSH MOUNTABLE
A World-First innovation from FUSION, the MS-RA70 can be installed conventionally with a flush finish or integrated into a glass helm with a Flat surface finish. This allows for a more streamlined dash and high end installation.

GLASS FILLED COMPOSITE CHASSIS
Designed and engineered with a glass filled composite chassis to eliminate corrosion from dissimilar metals.

Specifications

Operating voltage
10.8—16 VDC

Fuse rating
15 Amp

Maximum power output Watts RMS @ 4 Ohms per channel @14.4v 10%THD+N
50W x 4

Pre-output voltage
3V peak

What's in the Box:

• MS-RA70 Series Stereo
• DIN mounting plate
• Four 8-gauge, self-tapping screws
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• Documentation

High-Quality Sound Performance

The Fusion MS-RA70 Stereo is designed to provide exceptional sound quality for marine environments. Its advanced digital signal processing delivers clear, dynamic audio even over the roar of waves and engine noise. Whether you're cruising or anchored, the stereo offers rich bass, clear mids, and crisp highs to satisfy audiophiles and casual listeners alike. Fusion incorporates technology that ensures stable and distortion-free playback, making the MS-RA70 a reliable companion for anyone who values premium sound on the water.

Versatile Connectivity Options

With Fusion's MS-RA70 Stereo, you benefit from extensive connectivity options, allowing seamless integration with multiple devices. The stereo supports Bluetooth streaming for wireless audio playback, as well as USB and auxiliary inputs for MP3 players, smartphones, and more. Additionally, it offers compatibility with Fusion's smart devices and control apps, enabling easy remote operation. This versatility ensures you can enjoy your favorite playlists, podcasts, and radio stations hassle-free while on your boat.

Durable and Marine-Ready Design

Built to withstand harsh marine conditions, the Fusion MS-RA70 boasts an IPX6-rated waterproof design that protects against water sprays, salt, and UV exposure. Its robust construction guarantees longevity and reliable performance even in challenging environments. The intuitive interface with backlit controls ensures easy operation in bright sunlight or at night. With Fusion’s commitment to quality and durability, this stereo is ideal for any boating enthusiast seeking reliable audio equipment that performs beautifully on the water.
