Garmin 010-11051-20 DST810 Airmar Smart Transducer Plastic Thru Hull

Garmin 010-11051-20 DST810 Smart Transducer Features and Benefits

Garmin 010-11051-20 DST810 Airmar Smart Transducer Plastic Thru Hull

Garmin DST810 Smart Transducer

Model: 010-11051-20

• 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
• Integrated attitude sensor for heel and trim benefits sailing and power boats

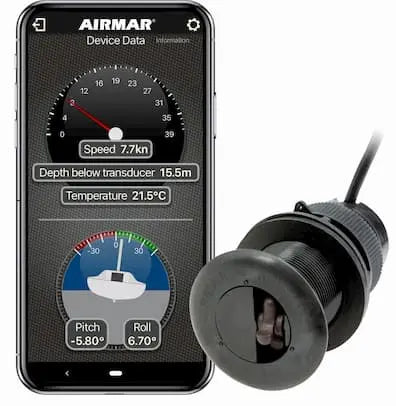

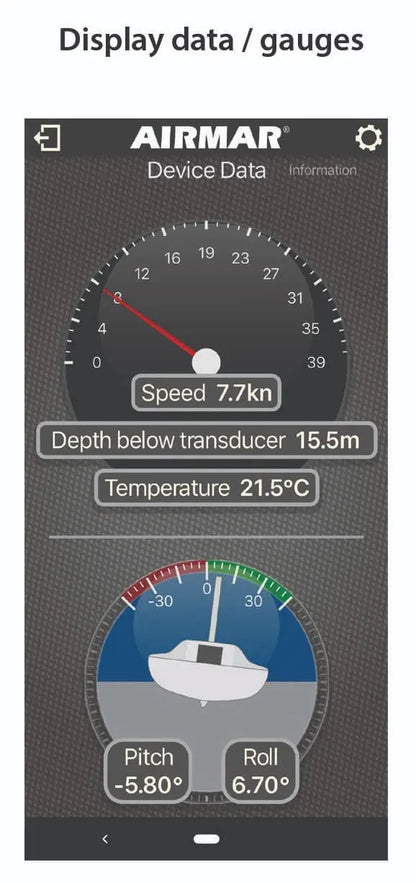

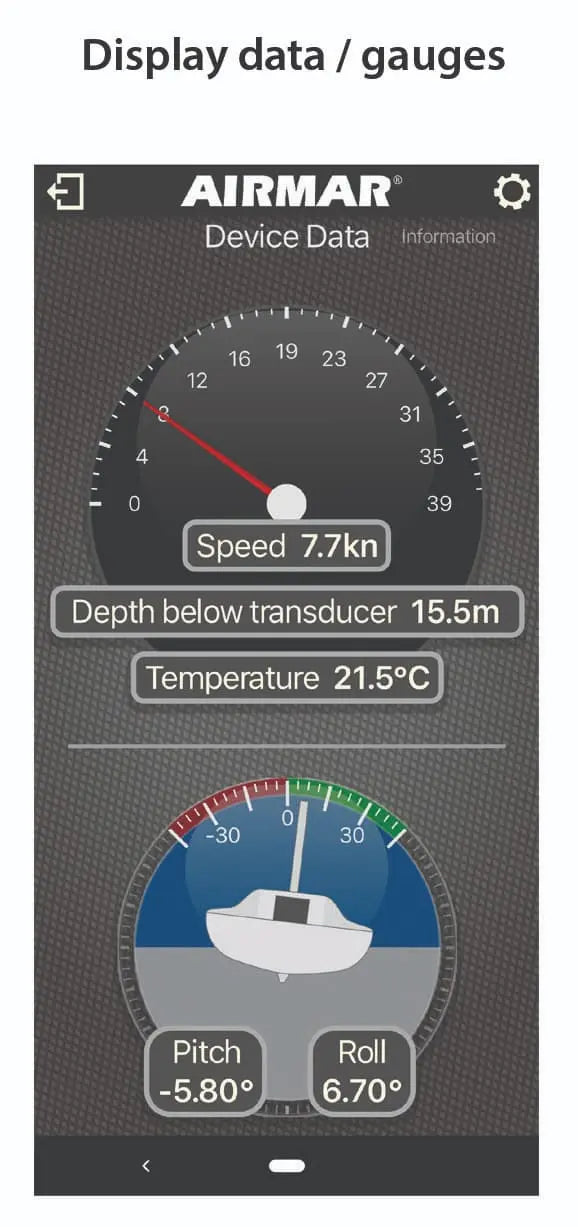

• Wireless connectivity to Airmar's CAST App has new user-friendly benefits:
• Calibrate the DST810 in a simple, intuitive way regardless of the instrument brand or model that is on board
• Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range
• Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
• Enable and disable PGN's and set offset and output rates

For a product to be considered "breakthrough," it has to vastly change conventional behavior and enhance abilities. The new DST810 Smart Multisensor, together with Airmar's CASTTM App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device. This changes how boaters receive and deliver information to get greater performance from their hull. It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC based software.

Besides water temperature, depth and newly upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data. This information, combined with Airmar's powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.

All speed calibrations and NMEA configurations are stored in the DST810 sensor-not in the displays.

Specifications

Acoustic WindowUrethane

Hull Deadrise
Up to 22 deg

Data Update Rate
Depth: 1X/second

Attitude Accuracy
+/- 1 deg nominal after sensor calibration

Depth Frequency
235 kHz

Minimum Depth Range
0.5 m (1.6 feet)

Maximum Depth Range
Up to 100 m (330 feet)-NMEA 2000(R)

Speed Range
Up to 45 knots

Pressure Rating
3 m (10 feet)

Pulse Rate
20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile

Supply Voltage
9 VDC to 16 VDC-per NMEA 2000

Supply Current
<200 mA-per NMEA 2000(R)

Wireless Protocol
Bluetooth Low Energy (BLE)

Wireless Range
Up to 30 feet depending on mount location

Standard Cable Length
6 m (20 feet) DeviceNet-NMEA 2000(R)

Temperature Sensor Accuracy
0.5 degC (1.8 degF)

Temperature Sensor Range
-10 degC to 40 degC (14 degF to 104 degF)

NMEA 2000 Load Equivalency Number (LEN)
3

High-Performance Depth and Speed Measurements

The Garmin 010-11051-20 DST810 is engineered to provide precise depth, speed, and water temperature readings for your marine vessel. Designed for plastic thru hull installation, this smart transducer integrates seamlessly with Garmin systems to deliver accurate data essential for safe navigation and efficient boating. Its advanced sonar technology ensures clear underwater detection, making it a critical tool for both recreational and professional boaters.

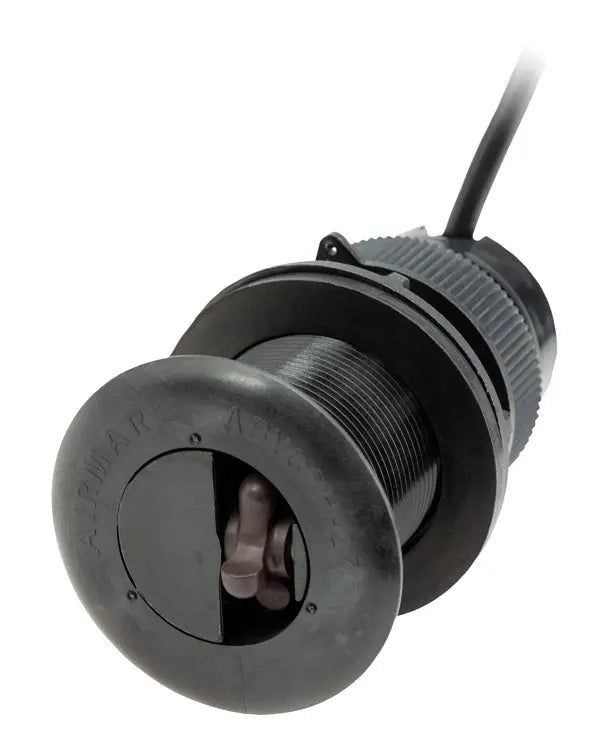

Durable Plastic Thru Hull Construction

Constructed with robust plastic materials, the Garmin 010-11051-20 plastic thru hull transducer offers excellent resistance against corrosion and marine environmental wear. Its easy-to-install design fits securely through the hull, ensuring long-lasting performance without compromising your vessel’s integrity. This thoughtful construction extends the life of your transducer, making it a reliable accessory for any watercraft.

Compatibility and Easy Integration

This Garmin DST810 transducer is compatible with a wide range of Garmin marine electronics, allowing smooth integration into existing navigation systems. The plug-and-play design simplifies setup and reduces installation time, enabling users to quickly benefit from accurate sonar readings. With its smart technology, the Garmin 010-11051-20 supports enhanced data sharing for improved situational awareness and navigation safety.
