SKU:GAR0101238020

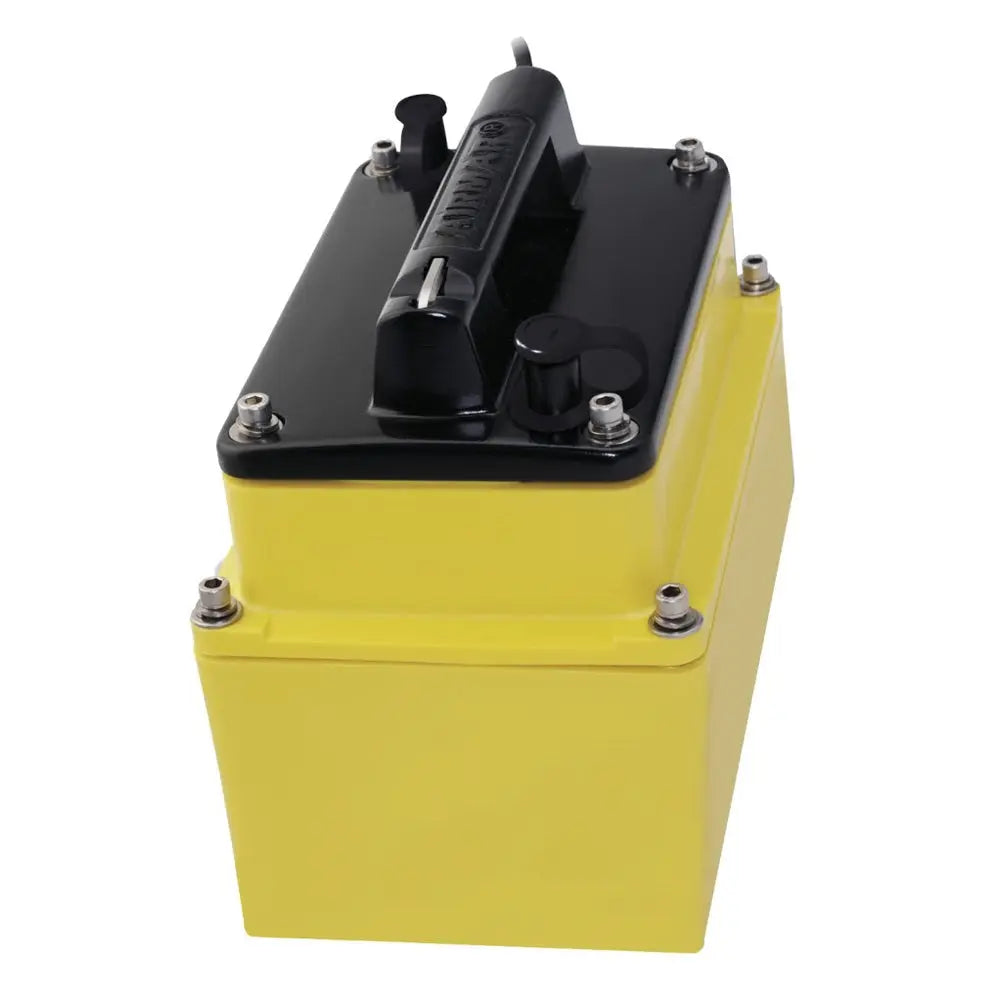

Garmin 010-12380-20 M265LH Plastic In Hull Transducer
Airmar M265C-LH Low High CHIRP In-Hull Transducer with Garmin 12-Pin
Model: 010-12380-20
We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna-60 kHz, squid-133 kHz, and cod-175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.
Airmar's M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10 deg to 6 deg, bandwidth-perfect for picking apart structure and pinpointing tight-holding fish in structure.
The transducer is installed in the included tank which is cut to the boat's deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.
Specifications
Cable-Length10 m (33 feet)
Connector
Garmin 12-Pin
Deadrise Range
0 deg to 22 deg
Frequency Band
Low-High
Housing Material
Plastic
Low Frequency
42-65 kHz
Low Frequency Beamwidth
25 deg-16 deg
Max Deadrise
Accommodates a deadrise angle up to 30 deg with the longest side of the tank installed parallel to the centerline (keel) of the hull
Max Depth
Low frequency- 914 m (3000 feet), High frequency- 304 m (1000 feet)
Mounting Style
In-Hull
Single or Dual Frequency
CHIRP-Ready Dual-Band
High Frequency
130-210 kHz
High Frequency Beamwidth
10 deg-6 deg
The Garmin 010-12380-20 M265LH Plastic In Hull Transducer is engineered with advanced technology to deliver precise sonar data directly through your boat’s hull. Designed for plastic in-hull installations, this transducer enables clear and consistent fishfinding performance. Its multifunctional capabilities support CHIRP sonar frequencies for superior target separation, depth reading, and bottom tracking. With no need for drilling holes, it offers effortless installation and durable operation, making it an ideal choice for modern anglers and boating enthusiasts who demand accuracy and reliability on the water.
This Garmin transducer operates using Low and High CHIRP frequencies, providing detailed views of the underwater environment. The M265LH model delivers strong signal returns for shallow and mid-depth waters, optimizing performance for fishing and navigation. Its plastic housing is corrosion-resistant, designed to withstand harsh marine conditions while maintaining functionality. The in-hull mounting design ensures minimal drag, improving boat efficiency without compromising sonar performance. The Garmin 010-12380-20 offers versatility, compatibility with various Garmin fishfinders, and precise readings that assist users in making informed decisions on the water.
The Garmin 010-12380-20 is particularly suited to boats with plastic hulls, allowing for easy in-hull mounting without penetrating the hull surface. The transducer works effectively through fiberglass or plastic materials up to 100mm thick, enabling quick setup and secure fitting. Its integrated cable connection supports direct communication with compatible Garmin devices, ensuring seamless integration. This transducer also requires minimal maintenance, making it a long-lasting investment for boating professionals and hobbyists alike. When paired with Garmin’s fishfinder units, it enhances underwater detection and target clarity, elevating the overall boating experience.
