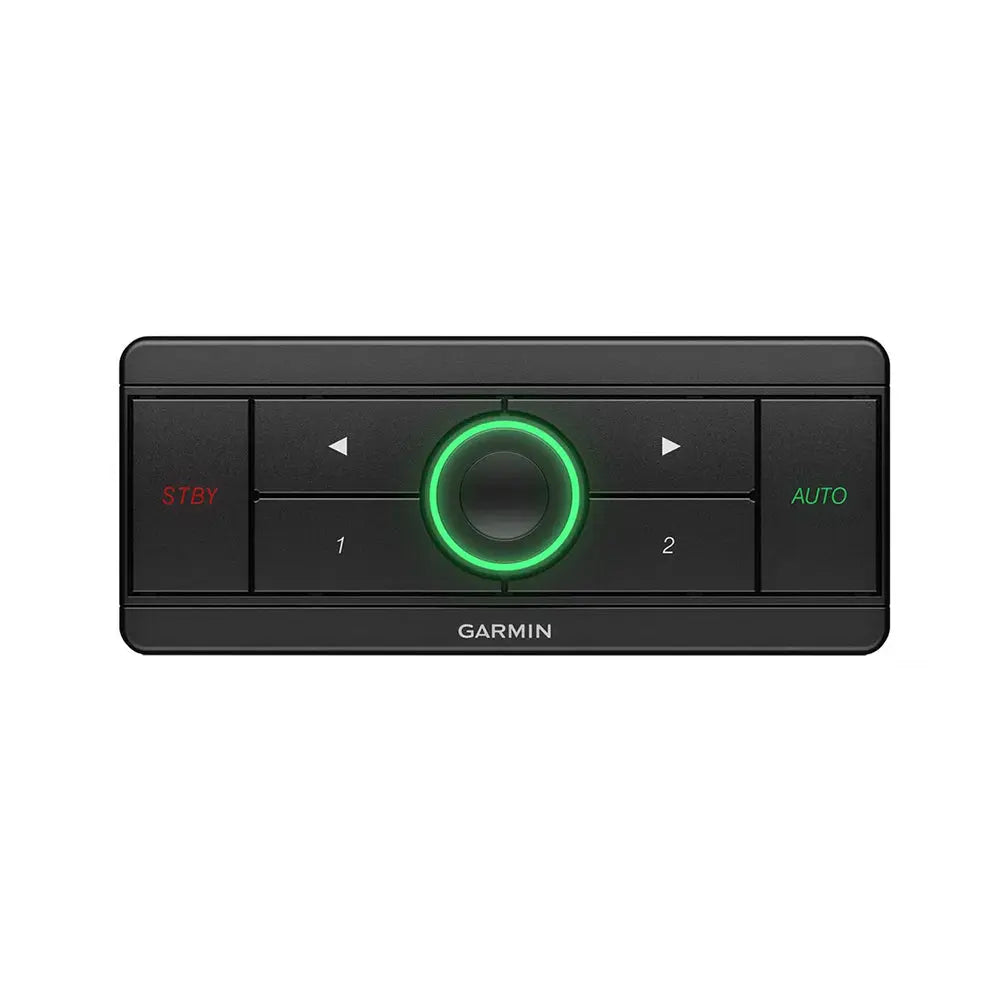

Garmin APK 10 Autopilot Keyboard - Horizontal Control Panel for Reactor 40

APK 10 Autopilot Keyboard - Horizontal

GAIN PRECISE CONTROL OF YOUR AUTOPILOT

Get easy-to-use control of your Reactor 40 autopilot, and put simple, intuitive knob and button activation, heading changes, and more at your fingertips.

Rotary Knob

The LED-encircled knob provides precise heading control and colored reference of autopilot status.

Autopilot Buttons

Dedicated engage and standby buttons make starting and stopping your autopilot easy.

Multipurpose Buttons

Add more autopilot control functions based on your vessel type and setup preferences.

Simple Installation

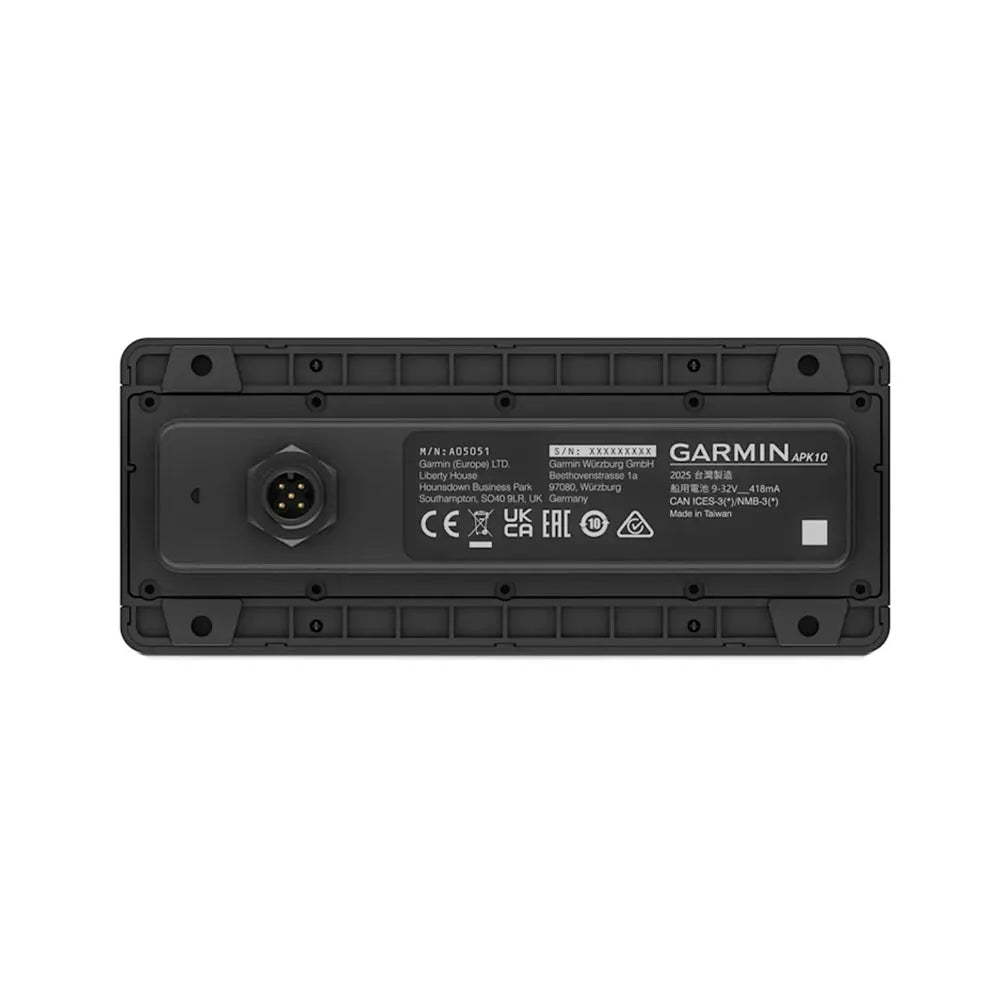

Connect to your NMEA 2000 network with a single port and cable for integration and power.

Compact Design

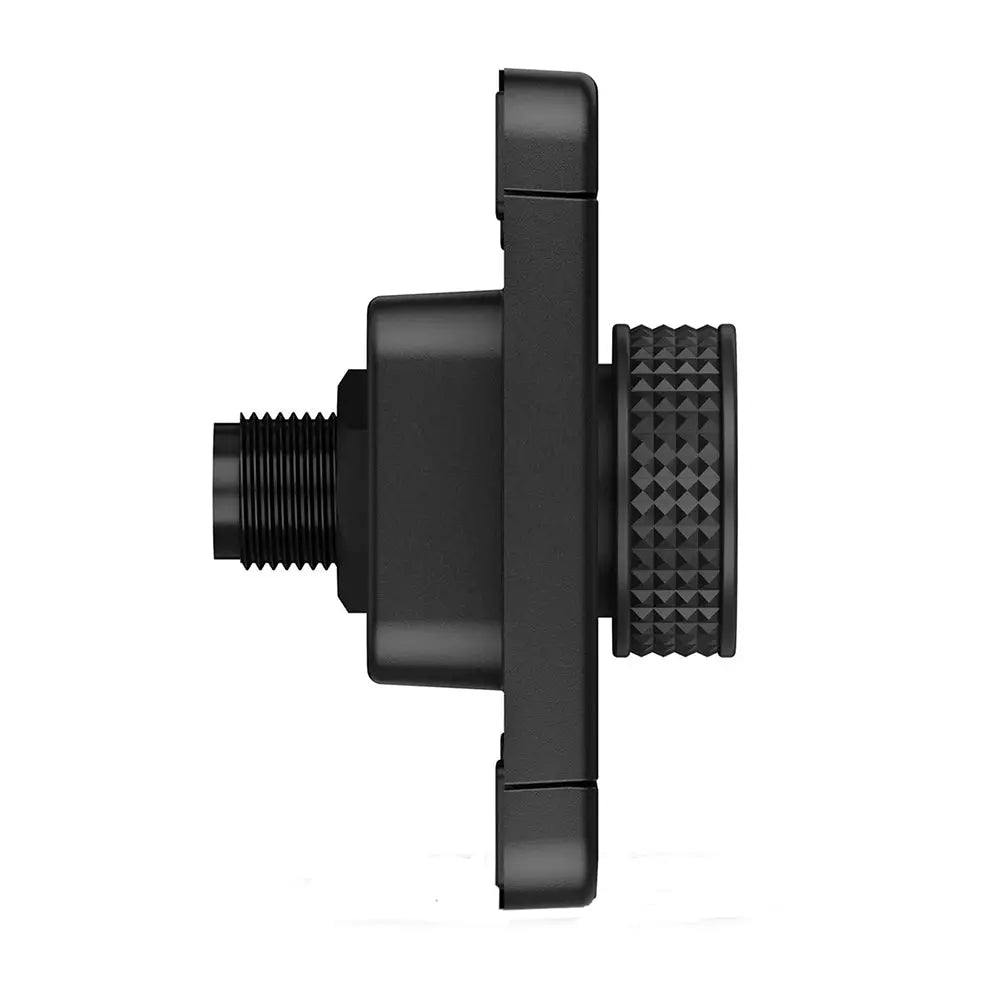

A low-profile design matches the height of your GHC 50 instrument and GPSMAP chartplotter. The APK 10 keypad accessory comes in horizontal and vertical mounting options to suit your new or existing helm.

In The Box:

• APK 10 autopilot keypad (horizontal)
• Backbone/drop cable (2 m) and T-connector for the NMEA 2000Network
• Mounting hardware (flushand surface)
• Documentation

Specifications:

• Dimensions (WxHxD): Flush mount: 5.5 x 2.3 x 0.28 (139.7 x 57.4 x 7.0 mm) Surface mount: 5.5 x 2.3 x 0.65 (140.7 x 58.4 x 16.4 mm)
• Weight: Horizontal: 4.09 oz (116 g)
• Temperature range: From 5 to 158F (from -15 to 70C)
• Material: Fully-gasketed, high-impact plastic
• Water rating: IPX7
• Compass-safe distance: 4.5 (114 mm)
• Powered input: Powered supplied from the NMEA 2000 network

Enhance your vessel's autopilot management with the Garmin APK 10 Autopilot Keyboard, designed specifically for the Reactor 40 system. This horizontal control panel offers intuitive and precise control, enabling you to easily adjust heading, activate or deactivate autopilot functions, and add multiple control options tailored to your vessel's setup. The LED-encircled rotary knob provides clear visual feedback on autopilot status, ensuring confident navigation at all times. The dedicated engage and standby buttons simplify starting and stopping the autopilot, while multipurpose buttons allow customization for additional control functions, enhancing versatility for various vessel types and user preferences. Installing the Garmin APK 10 is straightforward; it connects seamlessly to your NMEA 2000 network through a single port and cable, maintaining a clean helm setup. Its compact, low-profile design matches the height of other Garmin instruments such as the GHC 50 and GPSMAP chartplotters, and it offers both horizontal and vertical mounting options to fit your helm layout. Constructed from fully-gasketed, high-impact plastic, the keypad is built to withstand harsh marine environments with an IPX7 water rating, ensuring durability and reliable operation even in wet conditions. The keypad's compact dimensions make it suitable for tight helm spaces, and its power is supplied directly from the NMEA 2000 network, reducing clutter and simplifying wiring. Included in the box are the keypad, backbone/drop cable, T-connector for network integration, mounting hardware, and documentation for easy setup. With a temperature range suitable for diverse climates, the Garmin APK 10 Autopilot Keyboard is an essential upgrade for boaters seeking precise, customizable, and reliable autopilot control at their fingertips.

Features:

• Rotary Knob: LED-encircled for precise heading control and autopilot status indication

• Autopilot Buttons: Dedicated engage and standby buttons for easy autopilot control

• Multipurpose Buttons: Customizable controls tailored to vessel setup and preferences

• Simple Installation: Connects via a single port and cable to the NMEA 2000 network

• Compact Design: Low-profile, matching Garmin instruments with horizontal and vertical mounting options

• Durable Construction: Fully-gasketed, high-impact plastic with IPX7 water resistance

• Power Supply: Powered directly from the NMEA 2000 network for streamlined wiring
