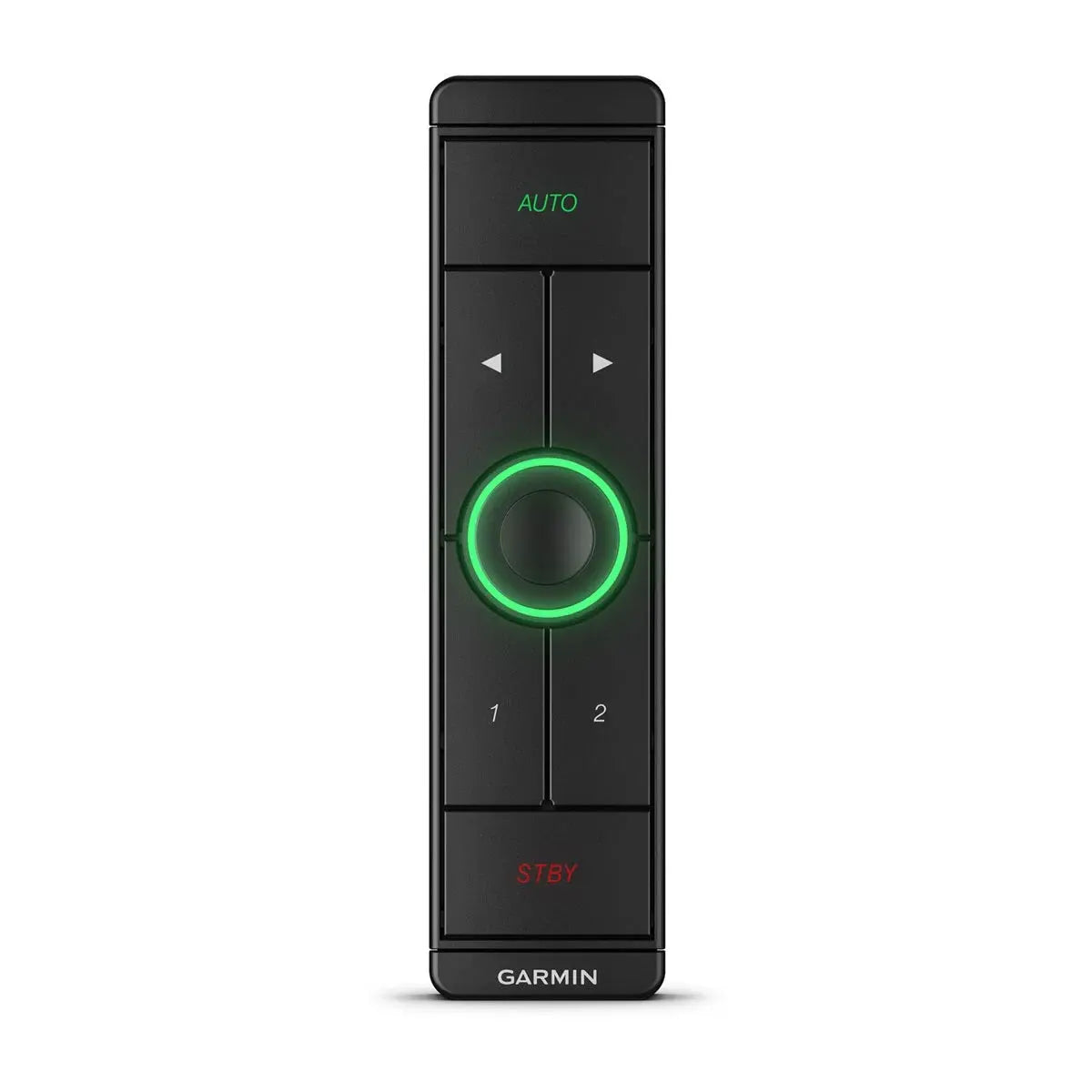

Garmin APK10 Autopilot Keypad Vertical

Garmin APK10 Autopilot Keypad Vertical

Garmin APK10 Autopilot Keypad - vertical

Get easy-to-use control of your Reactor 40 autopilot, and put simple, intuitive knob and button activation, heading changes and more at your fingertips.

The LED-encircled knob provides precise heading control and colored reference of autopilot status.

Dedicated engage and standby buttons make starting and stopping your autopilot easy.

Add more autopilot control functions based on your vessel type and setup preferences.

Connect to your NMEA® 2000 network with a single port and cable for integration and power.

A low-profile design matches the height of your GHC 50 instrument and GPSMAP® chartplotter.

Dimensions (WxHxD)
Flush mount: 1.6" x 6.2" x 0.28" (40.1 x 157.0 x 7.0 mm)
Surface mount: 1.6" x 6.2" x 0.65" (41.1 x 158.0 x 16.4 mm)

Weight
Vertical: 3.5 oz (100 g)

Temperature range
From 5° to 158°F (from -15° to 70°C)

Material
Fully-gasketed, high-impact plastic

Water rating
IPX7

Compass-safe distance
4.5" (114 mm)

Powered input
Powered supplied from the NMEA 2000® network

What's in the Box:

• APK 10 autopilot keypad vertical


• Backbone/drop cable (2 m) and T-connector for the NMEA 2000® Network


• Mounting hardware (flush and surface)


• Documentation
