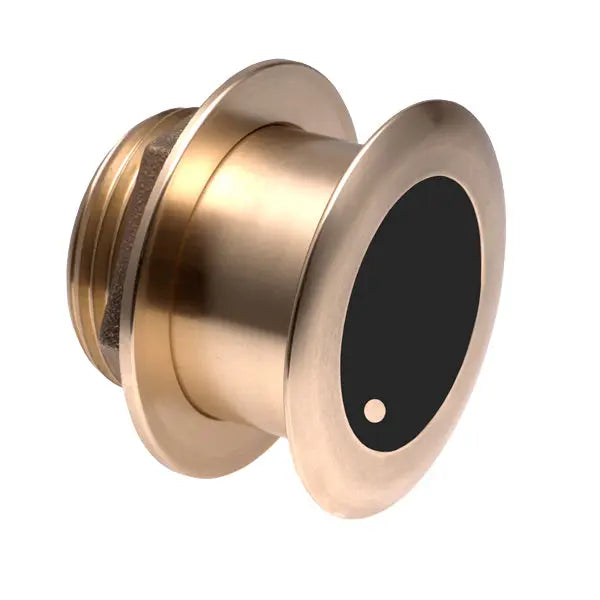

Garmin B175CHW 20-Degree Tilt Bronze Thru-Hull Transducer with 8-Pin Connector

The Garmin B175CHW 20-Degree Tilt Bronze Thru-Hull Transducer is designed for optimal performance with fiberglass and wood hulls, providing reliable depth and temperature readings up to 600 feet. Its flush-mounted bronze housing protrudes less than 1/4 inch outside the hull, allowing it to sit on trailer rollers or bunks without risking damage, making installation straightforward and durable. The tilted element inside the transducer accommodates all hull deadrises between 16 and 24 degrees, eliminating the need for a fairing block and enhancing versatility across various vessel types. This model supports multiple frequency options—low, medium, high, and high wide—to maximize flexibility for different fishing and navigation needs. Featuring an 8-pin connector, the transducer is compatible with Garmin's advanced marine electronics systems and ensures clear, precise sonar imaging in various conditions.

Features:

• Flush-mounted bronze housing with less than 1/4 inch protrusion for easy trailer and bunks installation

• Tilted element design accommodates hull deadrises from 16 to 24 degrees, eliminating the need for a fairing block

• Supports multiple frequency modes—low, medium, high, and high wide—for versatile performance

• Maximum depth capability of 600 feet for deep-water fishing and navigation

• Impedance: 1 kW for powerful, clear sonar signals

• Operating frequency range of 150-250 kHz for detailed imaging

• Beamwidth of 25 degrees provides broad sonar coverage

• Cable length of 39 feet for flexible installation options

• Includes temperature sensor for additional environmental data

• Prop 65 warning for potential cancer and reproductive harm
