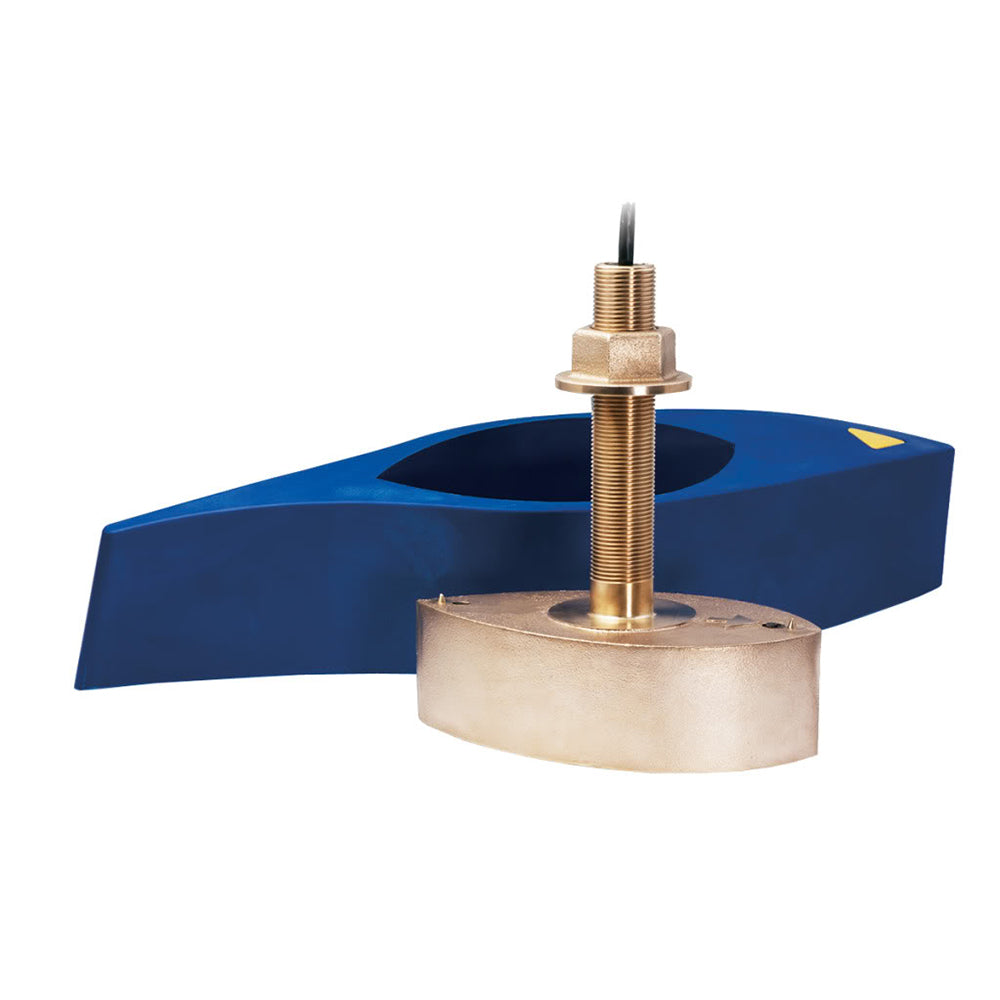

Garmin B275LH-W Bronze Thru-Hull Transducer - 12-Pin for High-Performance Fish Finding

B275LH-W Bronze Thru-Hull Transducer - 12-Pin

Get more coverage under your boat with Airmars unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25 beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.

The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH).

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.

The low frequency band and 1 kW of power also provides great deeper water performance. Get the best of both worlds with Airmars dual frequency Chirp-ready transducers with wide beam coverage.

Features:

• Depth and fast-response water-temperature sensor
• 1 kW for great deep water performance from the low frequency
• Low Frequency: 42 kHz to 65 kHz with maximum depth of 914 m (3000')
• 25 to 16 beamwidth
• High Frequency: 150 kHz to 250 kHz with maximum depth of 152 m (500')
  • 25 constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency provides superior shallow water performance, bottom detail and fish target separation
• High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column
• Bronze transducer housing with high-performance fairing for optimal performance at higher speeds
• Recommended boat size: 8 m (25') and above
• Hull Type: Fiberglass or wood
• Exclusive Xducer ID technology

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Garmin B275LH-W Bronze Thru-Hull Transducer offers advanced sonar capabilities for serious anglers and boaters seeking superior underwater imaging. Designed with a wide beam and high-frequency Chirp technology, this transducer provides exceptional resolution and extensive coverage beneath your boat. Operating across a frequency range of 150 to 250 kHz with a fixed 25-degree beam, it ensures detailed fish arches and bottom structure visualization, making it ideal for both inshore and pelagic fishing applications. The included high-performance fairing improves broadband performance at speeds over 30 knots (34 MPH), maintaining optimal signal integrity even at higher speeds. Constructed with a durable bronze housing, it is suitable for fiberglass or wooden hulls on boats 8 meters (25 feet) and larger, delivering reliable performance in diverse marine environments. The transducer features a 1 kW power output, enabling excellent performance in deep water down to 1,000 feet, with the low-frequency band spanning 42 kHz to 65 kHz for maximum depth capabilities. Its dual-frequency design covers popular fishing frequencies of 50 and 200 kHz, along with the entire bandwidth, providing versatile detection of fish and bottom detail. The high-frequency band excels in shallow water, offering superior resolution and target separation, while the wide beamwidth enhances coverage for detecting fish in the upper water column. Additional features include a water-temperature sensor, exclusive Xducer ID technology for easy identification, and compatibility with Garmin’s Chirp-ready sonar systems. The compact dimensions and robust construction make it a reliable choice for avid fishermen seeking a combination of depth performance, coverage, and clarity in a thru-hull transducer.

Features:

• Depth and fast-response water-temperature sensor

• 1 kW power output for deep water performance

• Low frequency: 42 kHz to 65 kHz with maximum depth of 914 meters (3,000 feet)

• High frequency: 150 kHz to 250 kHz with maximum depth of 152 meters (500 feet)

• Constant 25-degree beamwidth across high frequencies

• Total bandwidth of 123 kHz from one transducer

• Supports popular fishing frequencies of 50 and 200 kHz and the entire bandwidth

• High-frequency band provides superior shallow water resolution and target separation

• Wide beamwidth offers increased coverage under the boat for better fish detection

• Bronze transducer housing with high-performance fairing for optimal high-speed operation

• Recommended for boats 8 meters (25 feet) and larger with fiberglass or wooden hulls

• Includes Garmin’s exclusive Xducer ID technology for easy transducer identification
