Garmin Boat Switch

Garmin Boat Switch: Efficient Control for Your Marine Vessel

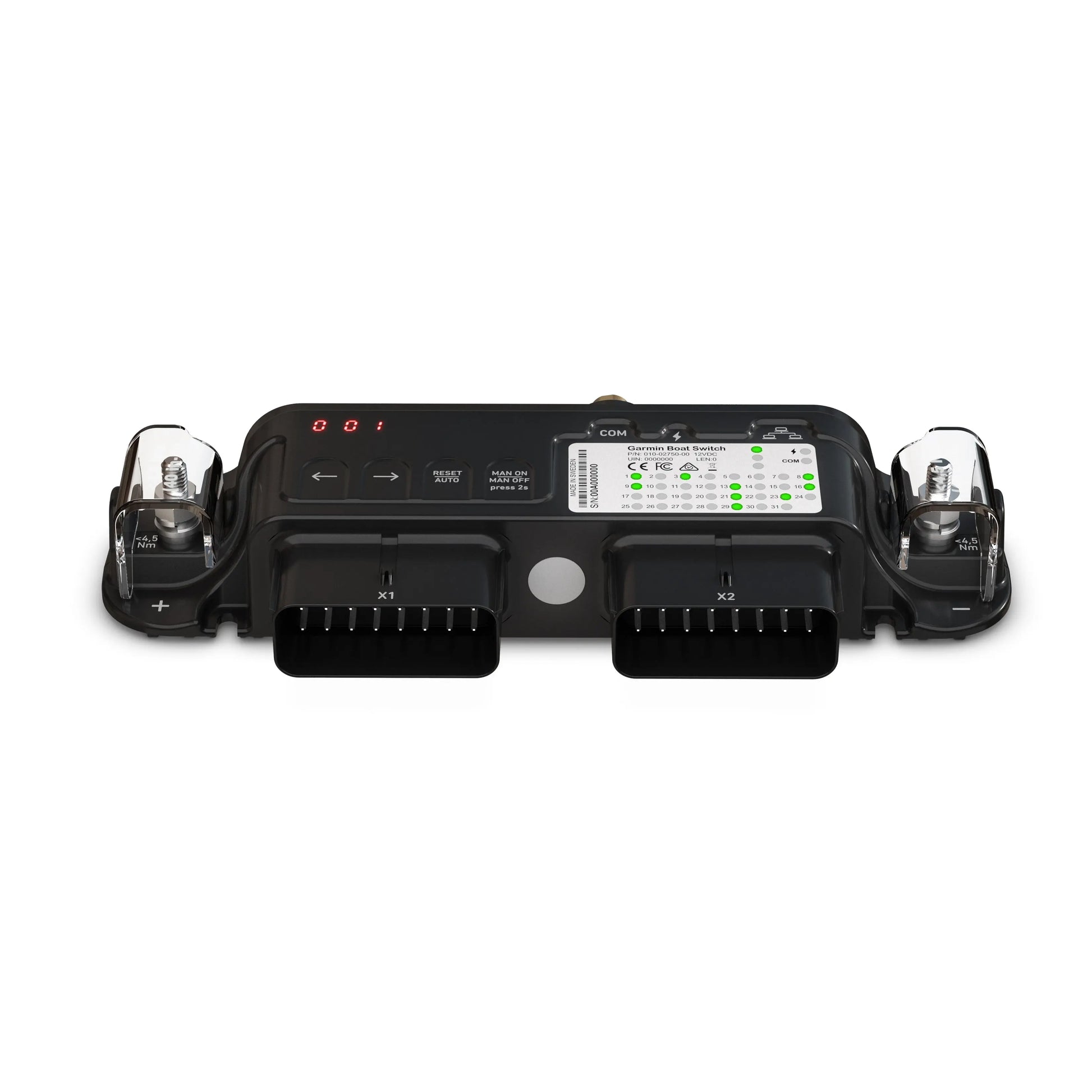

Garmin Boat Switch Digital Switching Module

Model: 010-02735-00

• Reduce reliance on traditional switches and fuses. Add digital control and software current monitoring.
• Operate lights, pumps, horn and more. Just tap your compatible chartplotter.
• Fill up or empty out See levels in four tanks - such as fuel, freshwater, graywater, blackwater and livewell.
• See system status. Monitor battery voltage, bilge pump operation and more.
• Set it up your way. Position and name switches with the easy-to-use interface.
• Retrofit into your boat. It requires no special tools or configuration.

Get the integrated boat experience with Garmin Boat Switch. This all-in-one digital switching solution lets you operate up to 20 circuits right from your compatible GPSMAP(R) or ECHOMAPTM chartplotter instead of using physical buttons or switches. It offers four different switch types, including on/off for bilge pumps and nav lights, press-and-hold dimmers for cabin lights, momentary outputs for horns and timers to circulate your livewell pumps. Plus, it provides built-in tank sender detection and calibration for as many as four tanks - including fuel, water and graywater. It installs without special tools and allows you to easily add and name switches on your chartplotter display.

Get control and protection of up to 20 circuits via your chartplotter rather than a physical button or switch.

The toggle outputs operate bilge pump and nondimmable lights, such as nav lights and courtesy lights.

Press-and-hold dimmers let you set your preferred brightness on board.

Control horns and more. Simply press and release for desired length of horn beep.

A built-in timer turns the pump to cycle the water to keep fish alive - and keep pumps functioning longer.

Experience built-in tank sender detection and calibration for as many as four tanks, such as fuel, freshwater, graywater, blackwater and livewell.

See analog voltages on house and start battery, monitor bilge pump operation, and connect optional physical switches.

Retrofit into existing boats without special tools or configuration by using the included 18 in flying leads and color-coded channel wires.

Replace existing two-element systems - fuse box and switches - for easier control and operation of onboard functions.

Specifications

Dimensions(WxHxD) (unit only)9.1 x 4.2 in x 1.5 in (230 x 106 x 38 mm)

Weight (unit only)
14.1 oz (400 g)

Ambient temperature
-20 deg C to +55 deg C

Enclosure water rating
IP65

Communication
CAN-bus NMEA 2000(R) network

Overview of Garmin Boat Switch

The Garmin Boat Switch is a highly reliable and user-friendly device designed to simplify your boat's electrical system control. This switch integrates seamlessly with your marine electronics, providing accessible and efficient management of power to essential onboard systems. Whether you're powering navigation lights, bilge pumps, or other boat accessories, the Garmin Boat Switch offers durability and precise operation even in harsh marine environments. Its robust design ensures it withstands water, salt, and vibration, making it a must-have for any boat owner seeking dependable electrical control.

Features and Benefits

The Garmin Boat Switch boasts several key features that set it apart from standard marine switches. It delivers a smooth and responsive tactile experience, enabling quick toggling between power states without hesitation. Its compact size allows easy installation in various locations on your boat, while the corrosion-resistant materials ensure longevity and minimal maintenance. Additionally, the switch supports integration with Garmin’s wider marine electronics ecosystem, enhancing onboard connectivity and control. This synergy optimizes safety and convenience, letting you focus on enjoying your time on the water.

Installation and Compatibility

Installing the Garmin Boat Switch is straightforward with clear instructions that cater to both professional installers and DIY enthusiasts. It is compatible with a range of marine electrical systems, supporting common voltages and wiring setups used across recreational and professional vessels. The switch fits standard panel cutouts, enabling a neat and secure mounting. Garmin's commitment to quality ensures that this switch is backed by solid warranties and customer support. This compatibility and ease of installation make the Garmin Boat Switch an accessible upgrade for enhancing your boat’s electrical management.
