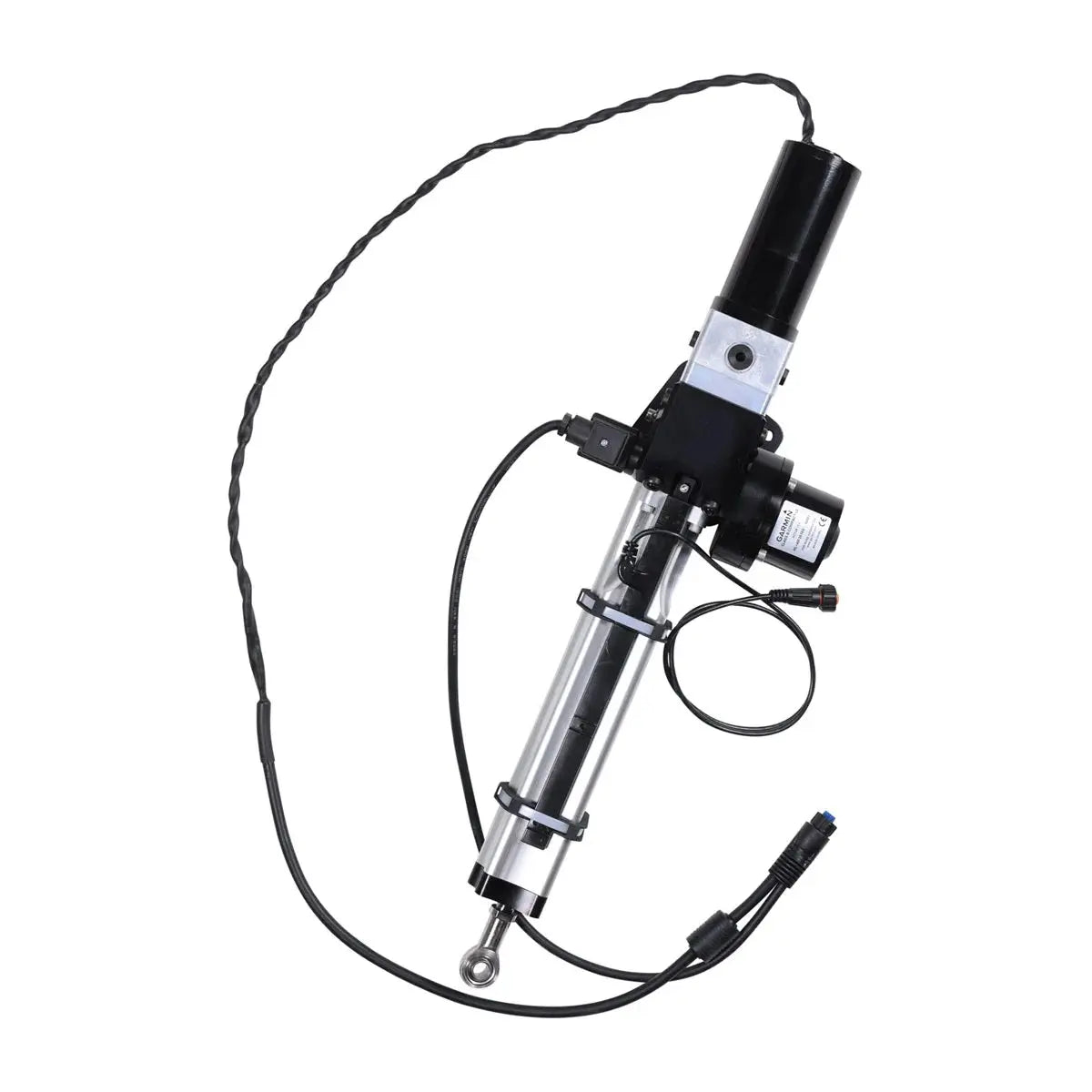

Garmin Class B Compact v2 Drive Unit

The Class B Drive Unit works with the Reactor 40 Mechanical/Retrofit/Solenoid Corepack to control your sailboat’s steering system. This device is designed for use with sailboats with up to 48,400 lbs of displacement.

Dimensions (WxHxD, centered)
31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)

Drive unit type
integrated hydraulic linear

Stroke length
10" (254 mm)

Maximum thrust
1,610 lbs (730 kg)

Supply voltage
10V to 30 V (regulated to 12V by the ECU)

Average clutch current at 12V
1 Amp

Average motor current at 12V
2-4 Amps

Operating temperature
-15° C to 50° C
