Garmin ECHOMAP UHD2 73sv Panoptix PS22-IF Bundle GN+ US Inland

Garmin ECHOMAP UHD2 73sv Panoptix PS22-IF Bundle GN+ US Inland

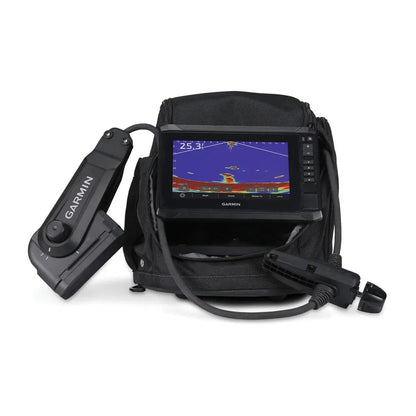

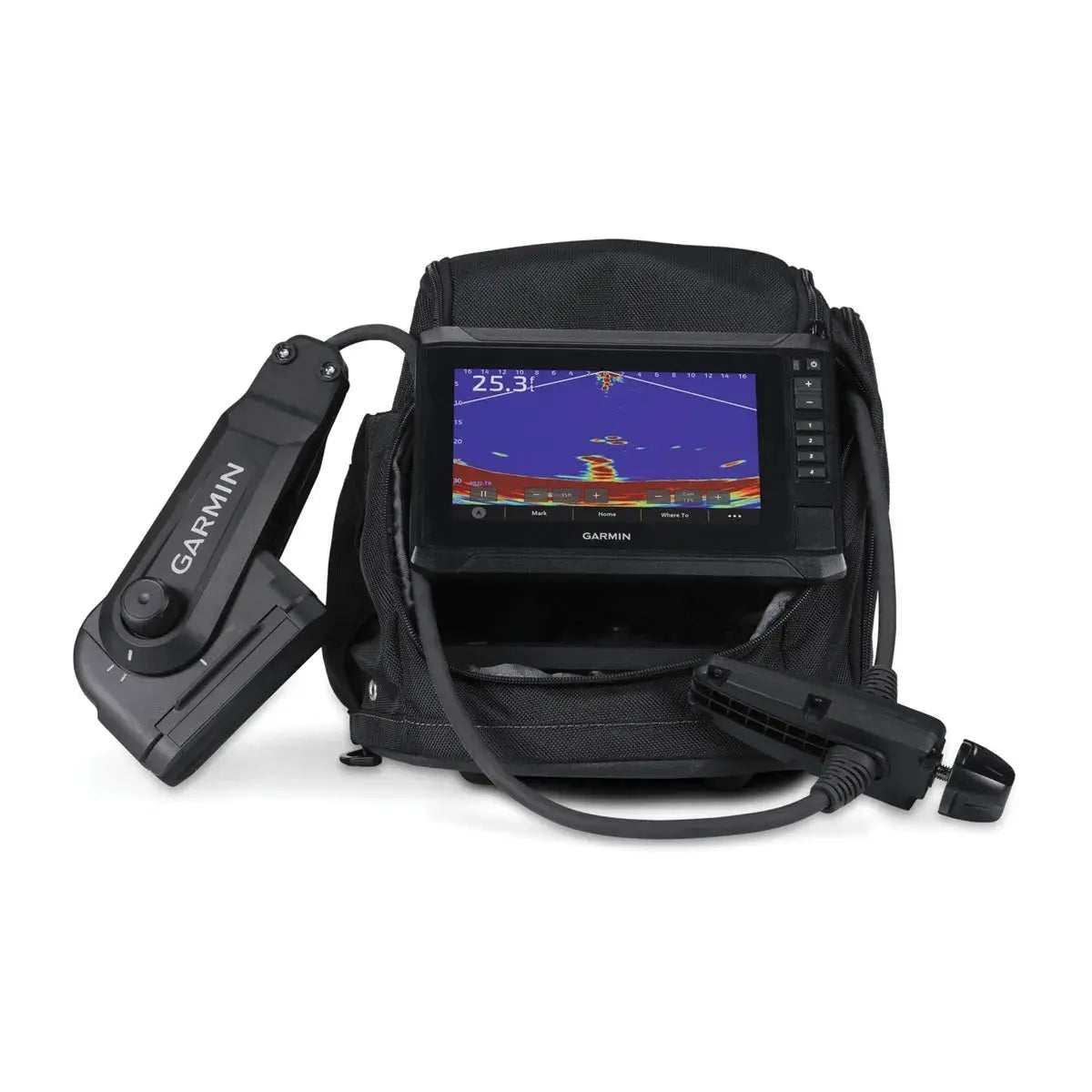

Garmin ECHOMAP UHD2 73sv Panoptix PS22-IF Ice Fishing Bundle

Model: 010-02684-30

• ECHOMAP UHD2 7" TOUCHSCREEN WITH KEYED ASSIST


• PANOPTIX SONAR WITH TWO MODES


• POLE MOUNT-FREE DESIGN


• GARMIN NAVIONICS+ U.S. INLAND MAPPING ON 23,000+ LAKES


• GLOVE-FRIENDLY PORTABLE BAG

The ultraportable Panoptix PS22-IF ice fishing kit provides two live sonar modes and a pole mount-free design, so you can move faster between holes to find more fish.

The bundle includes a 7" ECHOMAP UHD2 chartplotter with touchscreen, keyed assist and two types of sonar: LiveVü Forward and LiveVü Down modes.

The Panoptix PS22-IF transducer doesn’t require a pole mount. The bracket design allows for easy Forward and Down mode adjustments, while the rotator controls direction and depth.

Get exceptional detail on more than 23,000 U.S. lakes with an included 1-year subscription to access daily map updates.

Easily create custom pages that combine sonar and mapping on your display.

Easily change between wide and narrow beams to focus on areas of interest with the removable transducer lens.

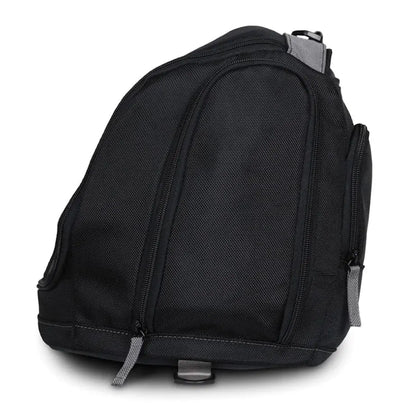

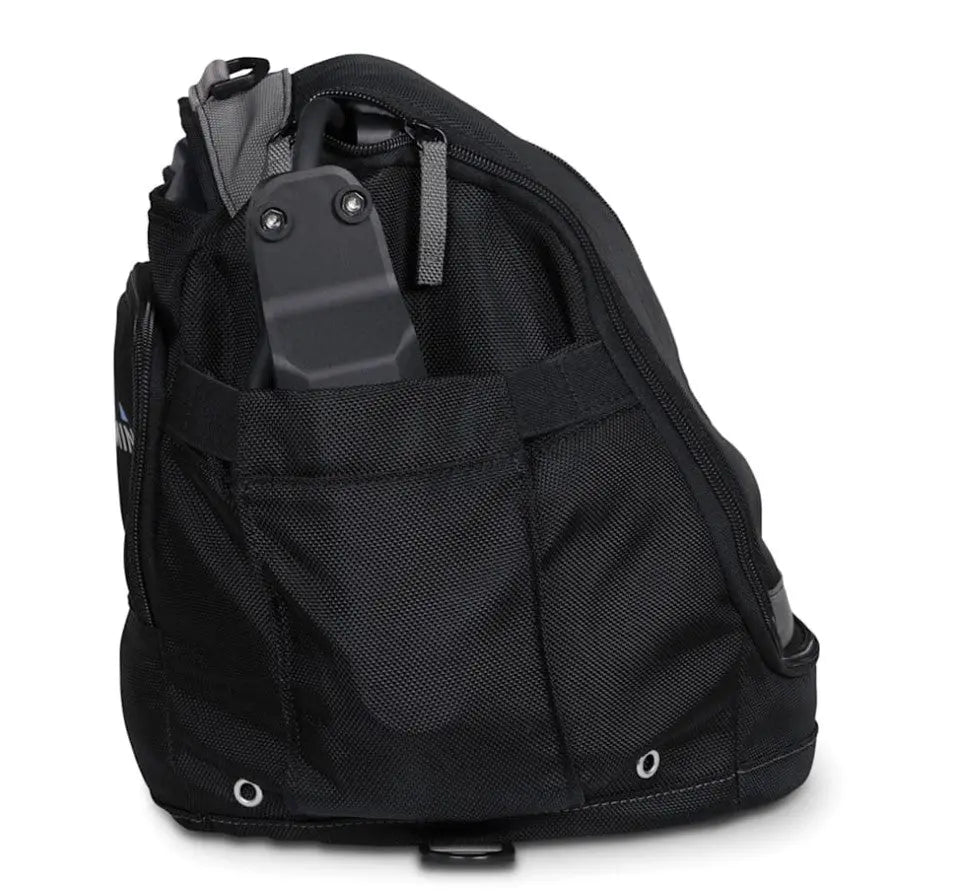

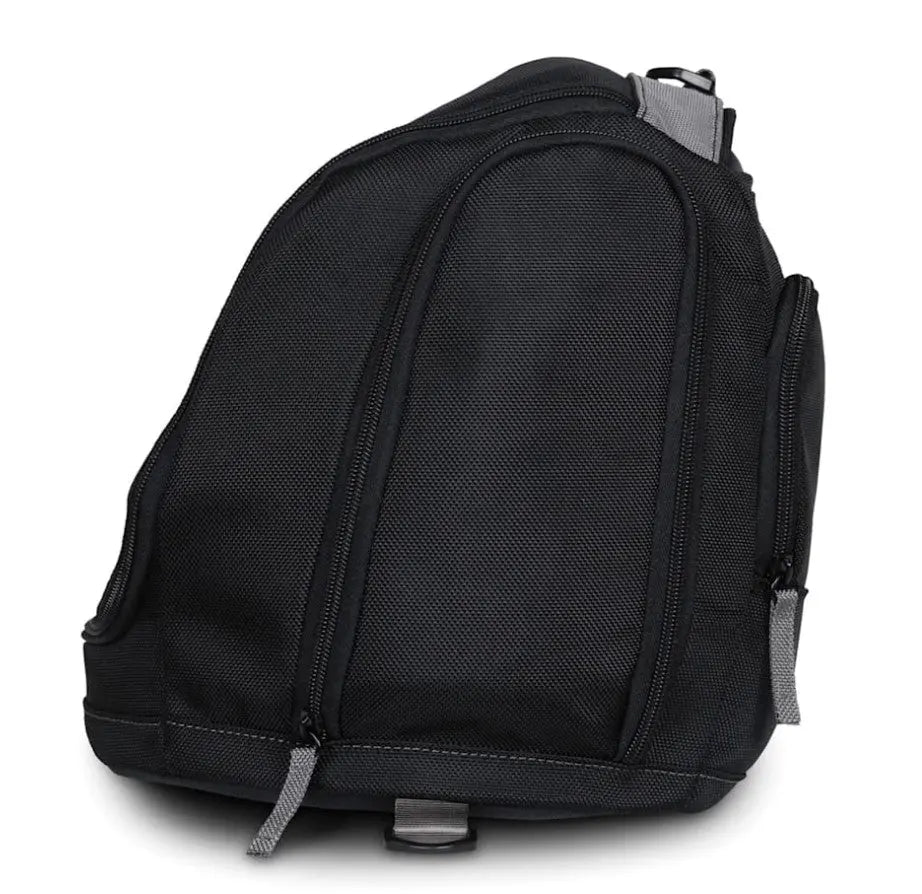

The rugged, glove-friendly carrying case lets you easily transport your entire bundle from hole to hole.

Specifications

General

Dimension
10.5" 9.5" 10.5" (26.7 22.9 26.7 cm)

Weight
12.2 lbs (5.5 kg)

Water rating
IPX7

Touchscreen
Yes

Display Type
WVGA, TN

Display Size
6.1" x 3.4", 7.0" (15.5 x 8.7, 17.8 cm)

Display resolution
800 x 480 pixels

Input
Touchscreen with Keyed Assist

Maps & Memory

Accepts Data Cards
1 microSD card; 32 GB maximum size

Waypoints
5000

Track points
50,000

Tracks
50 saved tracks

Navigation Routes
100

Ice Fishing Details

Battery type, size
SLA, 7Ah

Bag size
Small

Included transducer
PS22-IF

Transducer holding feature
Pole-free transducer rotation system

Sensors

GPS
Yes

GLONASS
Yes

Galileo
Yes

BeiDou
Yes

Has built-in receiver
Yes

Receiver
10 hz

NMEA 2000 Compatible
Yes

Supports WAAS
Yes

Supports multi-band, multi-constellation GPS
Yes

Built-in Maps
Mapping: Garmin Navionics+ for U.S. inland

Built-in Auto Guidance+
yes (downloadable via ActiveCaptain app)

Garmin Navionics+ Inland & Coastal
yes (see Additional)

Garmin Navionics+ (Inland)
yes (see Additional)

Optional Map Support

Garmin Navionics+
Yes

Garmin Navionics Vision+
Yes

TOPO 100K
Yes

Standard Mapping
Yes

Garmin Quickdraw Contours
Yes

Chartplotter Features

ActiveCaptain® compatible
Yes

Electrical Features

Power Input
9 to 18 Vdc

Sonar Features

Displays sonar
yes

Power output
500 W

Traditional sonar (dual frequency/beam)
built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)

ClearVü
built-in 260/455/800/1000/1200 kHz

SideVü
built-in 260/455/800/1000/1200 kHz

Panoptix sonar
yes

LiveScope
yes

Connections

NMEA 2000® ports
yes

Garmin Marine Network Ports
1

12-pin transducer ports
1

BLUETOOTH® pairing
yes

ANT+ (Connectivity)
yes

Garmin Wi-Fi network (local connection)
yes

What's in the Box:

• ECHOMAP UHD2 73sv with keyed assist chartplotter


• Mapping: Garmin Navionics+ for U.S. inland


• Panoptix PS22-IF transducer


• Transducer rotator


• Transducer bracket


• PS22-IF removable lens


• Rechargeable battery


• Charger


• Small bag, base and handle


• Power cable


• Foam float


• Hardware


• Documentation
