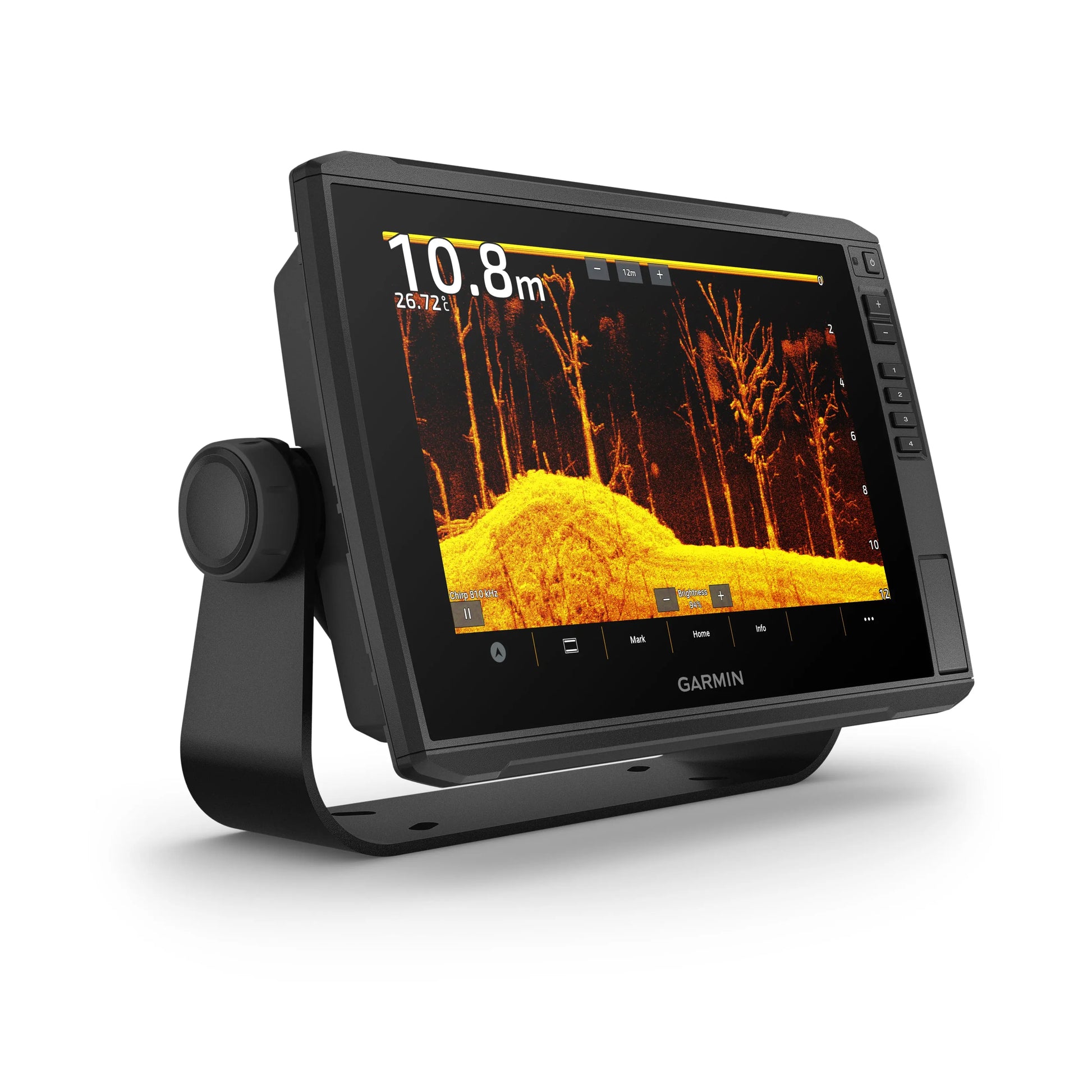

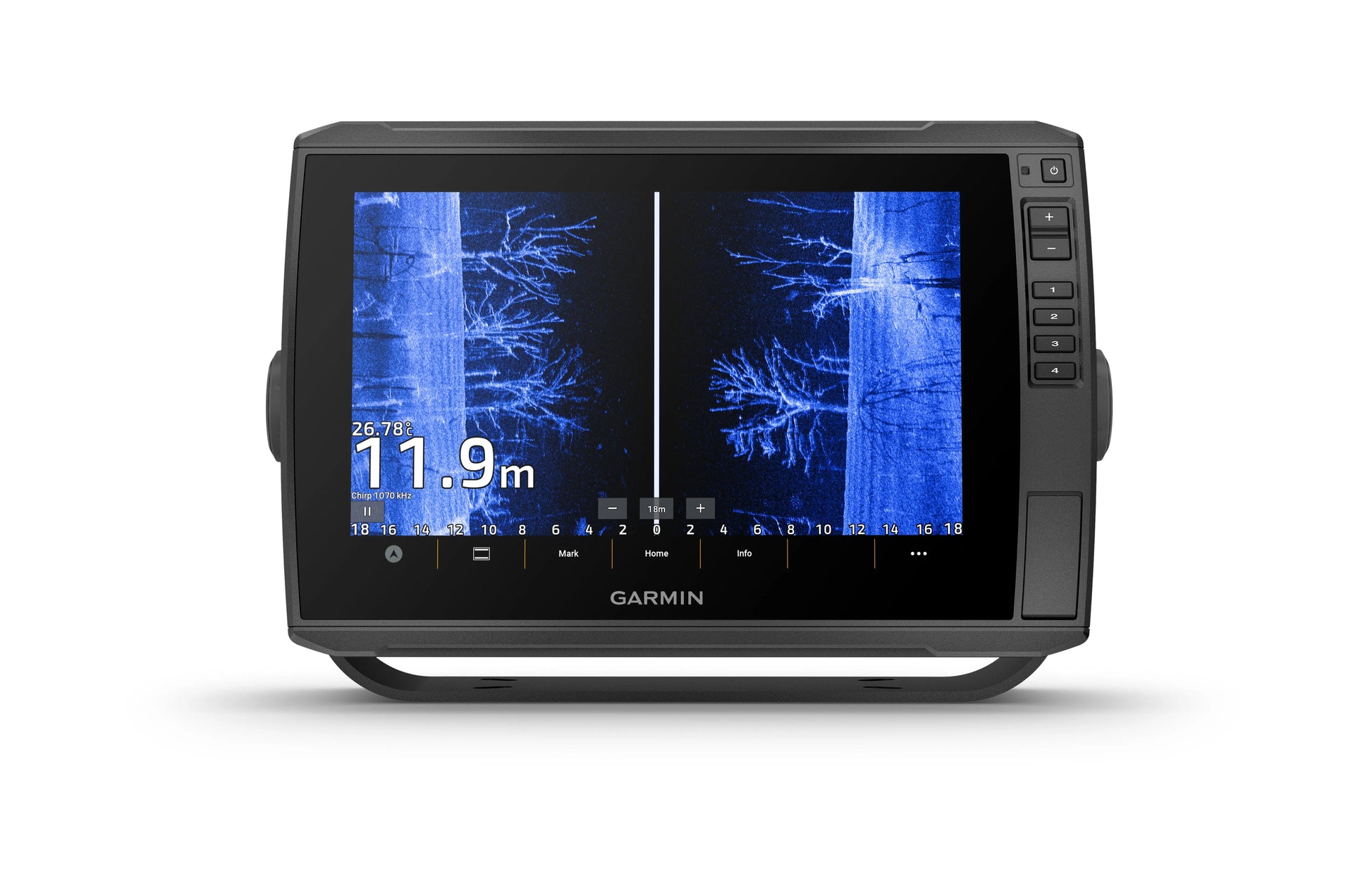

Garmin ECHOMAP Ultra 2 102sv Worldwide Basemap No Transducer

Explore the Garmin ECHOMAP Ultra 2 102sv: Advanced Marine Navigation

Garmin ECHOMAP Ultra 2 102sv Worldwide Basemap No Transducer

Garmin ECHOMAP Ultra 2 102sv 10" Chartplotters without Transducer

Model: 010-02879-00

• SUPPORTS LIVESCOPE SONAR1 AND MORE
• WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES²

• CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
• MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.

If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them.

LiveScope System sonar transducer sold separately Via one-to-one unit wireless connection only LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

Specifications

General

DIMENSION
11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)

WEIGHT
4.0 lbs (1.8 kg)

WATERPROOF
IPX7

TOUCHSCREEN
Yes

DISPLAY TYPE
WXGA, IPS

DISPLAY SIZE
8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)

DISPLAY RESOLUTION
1280 x 800 pixels

MOUNTING OPTIONS
Bail or flush

INPUT
Touchscreen with Keyed Assist

Maps & Memory

ACCEPTS DATA CARDS
2 microSD cards

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Sensors

GPS
Yes

GLONASS
Yes

GALILEO
Yes

BEIDOU
Yes

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

NMEA 0183 COMPATIBLE
Yes

SUPPORTS WAAS
Yes

SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes

Built-in Maps

BUILT-IN AUTO GUIDANCE+
Yes

GARMIN NAVIONICS+ INLAND & COASTAL
No

TIDE TABLES
No

Optional Map Support

BLUECHART G3
Yes

BLUECHART G3 VISION
Yes

LAKEVü G3
Yes

LAKEVü G3 ULTRA
Yes

GARMIN NAVIONICS+
Yes

GARMIN NAVIONICS VISION+
Yes

TOPO 100K
Yes

STANDARD MAPPING
Yes

GARMIN QUICKDRAW CONTOURS
Yes

Electrical Features

POWER INPUT
9 to 18 Vdc

TYPICAL CURRENT DRAW AT 12 VDC
2.3 A

MAXIMUM CURRENT DRAW AT 12 VDC
5.0 A

MAXIMUM POWER USAGE AT 10 VDC
34 W

Connections

NMEA 2000® PORTS
1

GARMIN MARINE NETWORK PORTS
2 (large connector)

12-PIN TRANSDUCER PORTS
12-pin scanning sonar

ANT+ (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Sonar Features

DISPLAYS SONAR
Yes

POWER OUTPUT
600 watt

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

CLEARVü
built-in 260/455/800/1000/1200 kHz

SIDEVü
built-in 260/455/800/1000/1200 kHz

PANOPTIX SONAR
Yes

LIVESCOPE
Yes

What's in the Box:

• ECHOMAP Ultra 102sv
• Power/data cable
• Bail mount with quick release cradle
• Protective sun cover
• 8-pin transducer to 12-pin sounder adapter cable
• Hardware
• Documentation

Cutting-Edge Navigation with Garmin Excellence

The Garmin ECHOMAP Ultra 2 102sv is engineered to deliver superior marine navigation using Garmin’s trusted technology. Featuring a high-resolution 10-inch display, it offers clear visibility in any lighting condition. The worldwide basemap ensures instant access to comprehensive mapping, ideal for exploring unfamiliar waters with confidence. This device suits both casual boaters and serious anglers, providing precise positioning, mapping, and navigation capabilities. Without an included transducer, users have the flexibility to select compatible options that fit their specific fishing or boating needs.

High-Definition Sonar and Mapping Capabilities

Equipped with the latest Garmin CHIRP sonar, ClearVü, and SideVü scanning technology, the ECHOMAP Ultra 2 102sv delivers detailed underwater views. This allows anglers to identify fish structures, underwater terrain, and distinct fish targets clearly. The worldwide basemap covers extensive coastal and inland waterways globally, making it a reliable tool for international trips. Users benefit from seamless map updates and access to additional mapping features, increasing accuracy and efficiency on the water.

Easy Integration and Customization Options

Garmin designed the ECHOMAP Ultra 2 102sv for easy integration with other marine devices and accessories. Its user-friendly interface supports touchscreen and keypad controls, enabling quick menu navigation even in tough conditions. Compatibility with features like smart notifications, NMEA 2000 connectivity, and wireless networking adds layers of convenience for users who want to connect multiple systems aboard. Without a transducer included, it offers customizable sonar setup options tailored to your marine environment and personal preferences.
