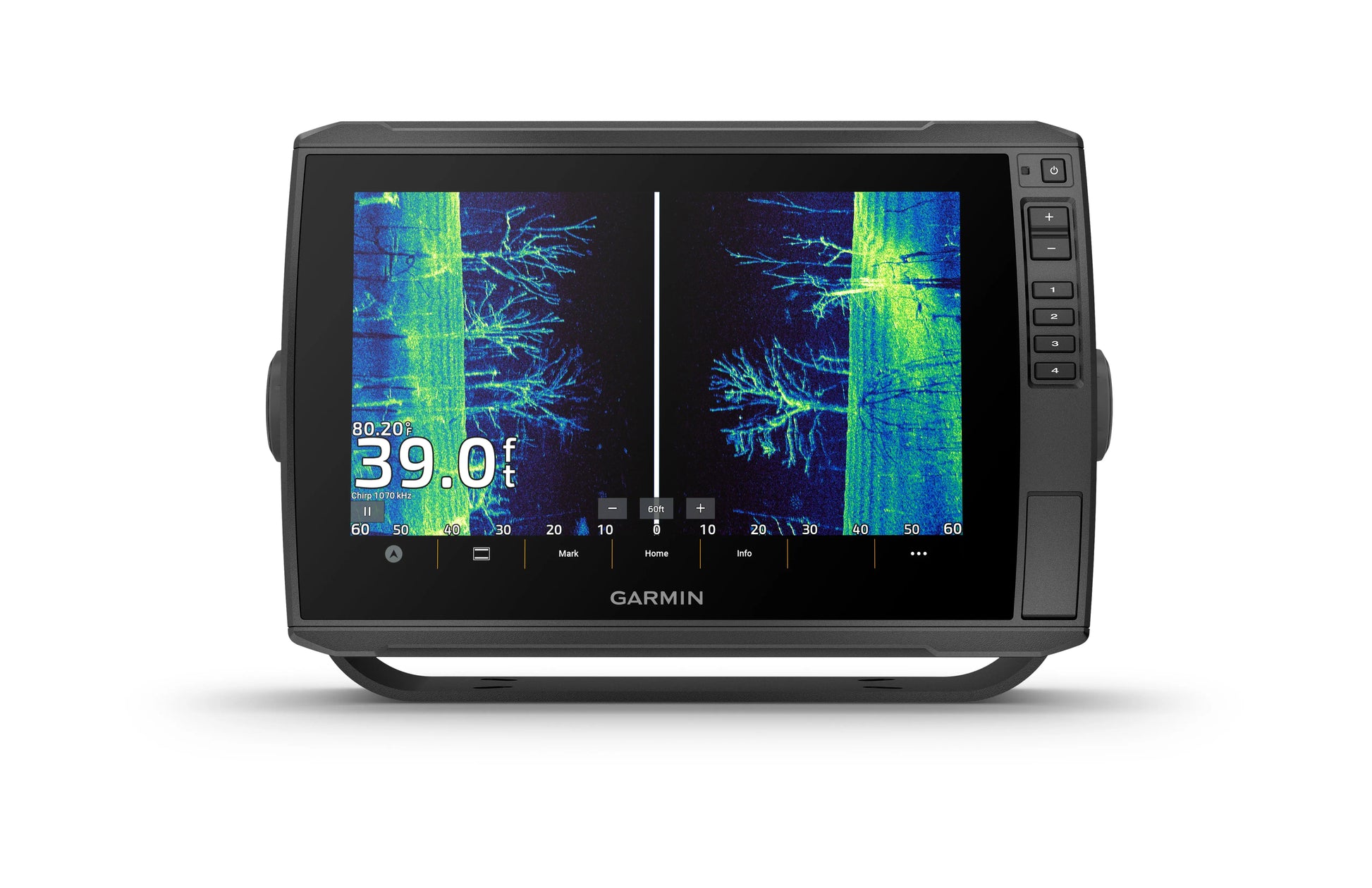

Garmin ECHOMAP Ultra 2 106sv US and Coastal Canada GN+ No Transducer

Explore the Advanced Garmin ECHOMAP Ultra 2 106sv for Marine Navigation

Garmin ECHOMAP Ultra 2 106sv US and Coastal Canada GN+ No Transducer

Garmin ECHOMAP Ultra 2 106sv 10" Chartplotters without Transducer; Includes Garmin Navionics+ U.S. Inland & Coastal Mapping

Model: 010-02880-00

• SUPPORTS LIVESCOPE SONAR1 AND MORE
• WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES²

• CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
• MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.

If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them.

LiveScope System sonar transducer sold separately Via one-to-one unit wireless connection only LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

Specifications

General

DIMENSION
11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)

WEIGHT
4.0 lbs (1.8 kg)

WATERPROOF
IPX7

TOUCHSCREEN
Yes

DISPLAY TYPE
WXGA, IPS

DISPLAY SIZE
8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)

DISPLAY RESOLUTION
1280 x 800 pixels

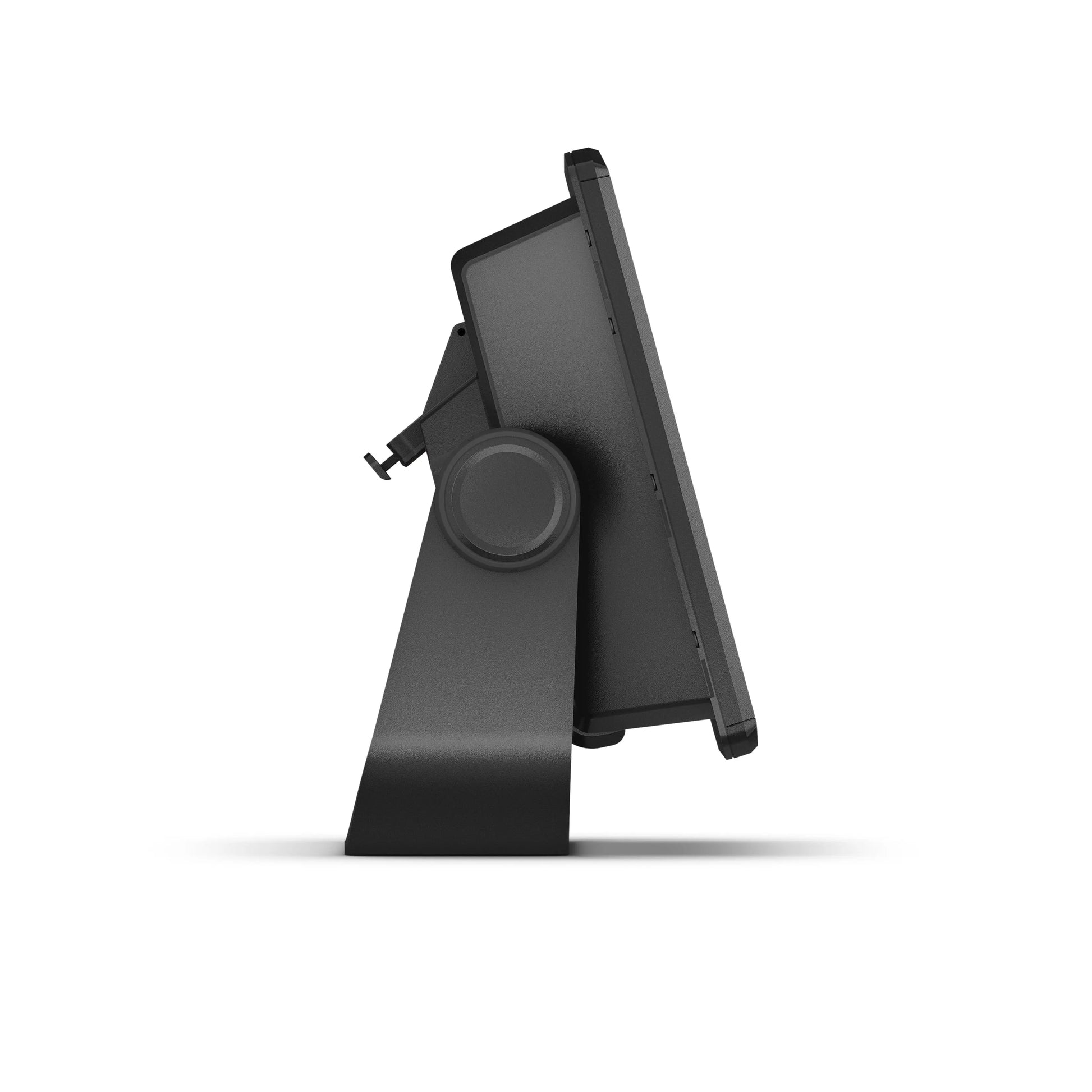

MOUNTING OPTIONS
Bail or flush

INPUT
Touchscreen with Keyed Assist

Maps & Memory

ACCEPTS DATA CARDS
2 microSD cards

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Sensors

GPS
Yes

GLONASS
Yes

GALILEO
Yes

BEIDOU
Yes

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

NMEA 0183 COMPATIBLE
Yes

SUPPORTS WAAS
Yes

SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes

Built-in Maps

BUILT-IN AUTO GUIDANCE+
Yes

GARMIN NAVIONICS+ INLAND & COASTAL
Garmin Navionics+ U.S. Inland & Coastal Mapping

TIDE TABLES
yes

Optional Map Support

BLUECHART G3
Yes

BLUECHART G3 VISION
Yes

LAKEVü G3
Yes

LAKEVü G3 ULTRA
Yes

GARMIN NAVIONICS+
Yes

GARMIN NAVIONICS VISION+
Yes

TOPO 100K
Yes

STANDARD MAPPING
Yes

GARMIN QUICKDRAW CONTOURS
Yes

Electrical Features

POWER INPUT
9 to 18 Vdc

TYPICAL CURRENT DRAW AT 12 VDC
2.3 A

MAXIMUM CURRENT DRAW AT 12 VDC
5.0 A

MAXIMUM POWER USAGE AT 10 VDC
34 W

Connections

NMEA 2000® PORTS
1

GARMIN MARINE NETWORK PORTS
2 (large connector)

12-PIN TRANSDUCER PORTS
12-pin scanning sonar

ANT+ (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Sonar Features

DISPLAYS SONAR
Yes

POWER OUTPUT
600 watt

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

CLEARVü
built-in 260/455/800/1000/1200 kHz

SIDEVü
built-in 260/455/800/1000/1200 kHz

PANOPTIX SONAR
Yes

LIVESCOPE
Yes

What's in the Box:

• ECHOMAP Ultra 106sv; Includes Garmin Navionics+ U.S. Inland & Coastal Mapping
• Power/data cable
• Bail mount with quick release cradle
• Protective sun cover
• 8-pin transducer to 12-pin sounder adapter cable
• Hardware
• Documentation

High-Resolution Display and Usability

The Garmin ECHOMAP Ultra 2 106sv features a bright 10-inch high-resolution touchscreen that offers crystal-clear images even in bright daylight. Its dual-orientation design ensures easy viewing whether planted flat or mounted, making it highly user-friendly on any vessel. This device allows anglers and boaters to interact seamlessly with detailed maps and sonar imagery. With its intuitive interface, users can quickly switch between navigation and sonar views, enhancing safety and convenience during extended trips on US waters and coastal Canada.

Comprehensive US and Coastal Canada GN+ Chart Coverage

Equipped with preloaded US and Coastal Canada GN+ maps, the Garmin ECHOMAP Ultra 2 106sv provides detailed marine charting, including depths, buoys, and landmarks. These accurate nautical charts ensure reliable navigation, making it ideal for both recreational and professional users. The GN+ charts offer enhanced contour detail and important information about coastal regions and inland waters, supporting confident route planning and safe travel in diverse waterways without the need for additional chart purchases.

Versatile Sonar Technology and Connectivity

This Garmin model supports multiple sonar technologies, such as CHIRP traditional sonar, ClearVü, and SideVü scanning sonars, providing crisp and detailed underwater views to locate fish and understand the underwater environment. Although sold without a transducer, this unit’s compatibility with various Garmin transducers allows customization based on fishing needs. Additionally, built-in Wi-Fi and Bluetooth connectivity enable software updates, map downloads, and smartphone integration, ensuring the device remains current and connected.
