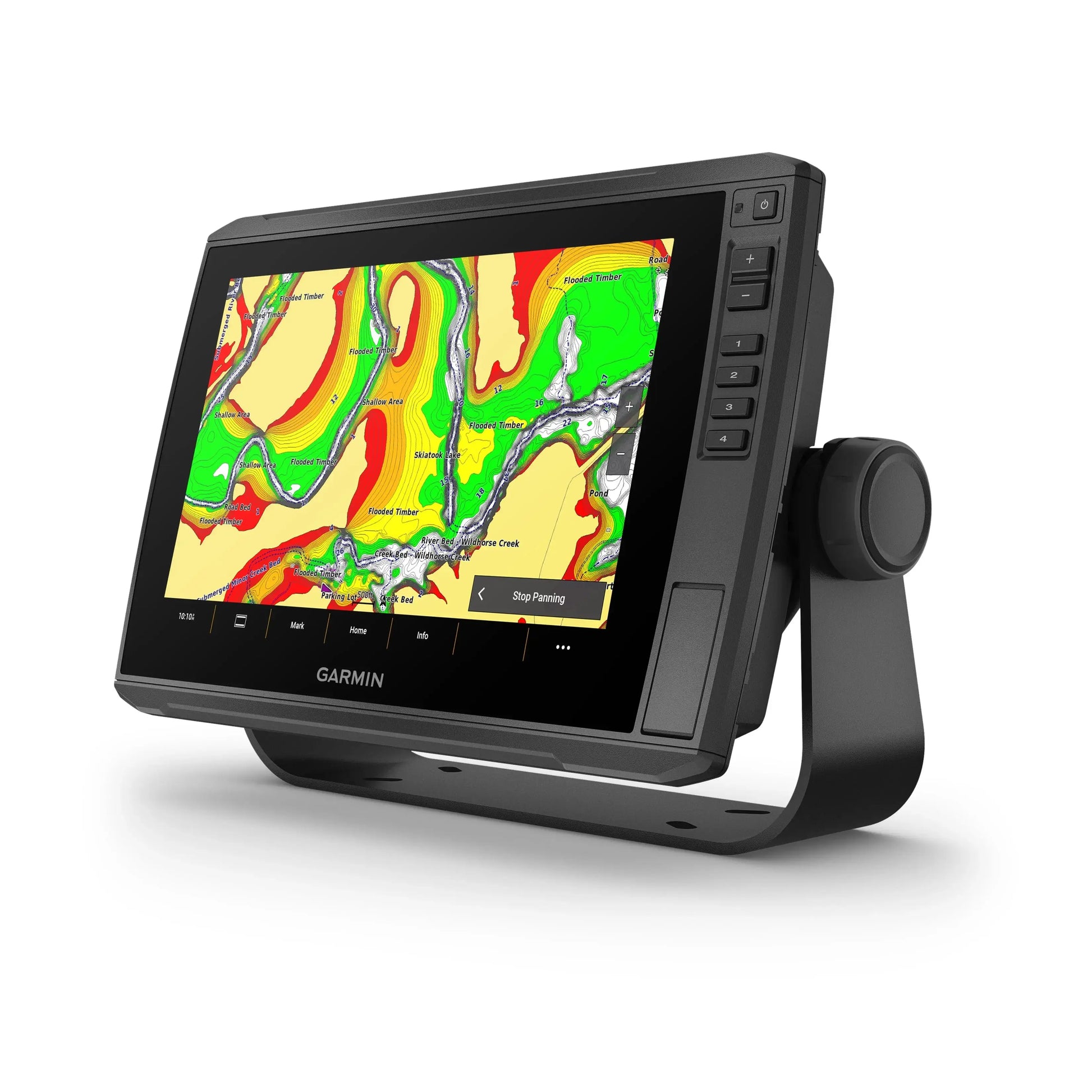

Garmin ECHOMAP Ultra 2 106sv US and Coastal Canada GN+ with GT56UHD-TM Transducer

Garmin ECHOMAP Ultra 2 106sv: Precision Marine Navigation and Fishfinding

Garmin ECHOMAP Ultra 2 106sv US and Coastal Canada GN+ with GT56UHD-TM Transducer

Garmin ECHOMAP Ultra 2 106sv 10" Chartplotters with GT56UHD-TM Transducer; Includes Garmin Navionics+ U.S. Inland & Coastal Mapping

Model: 010-02880-01

• SUPPORTS LIVESCOPE SONAR1 AND MORE
• WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES²

• CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES
• MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY

With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.

The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

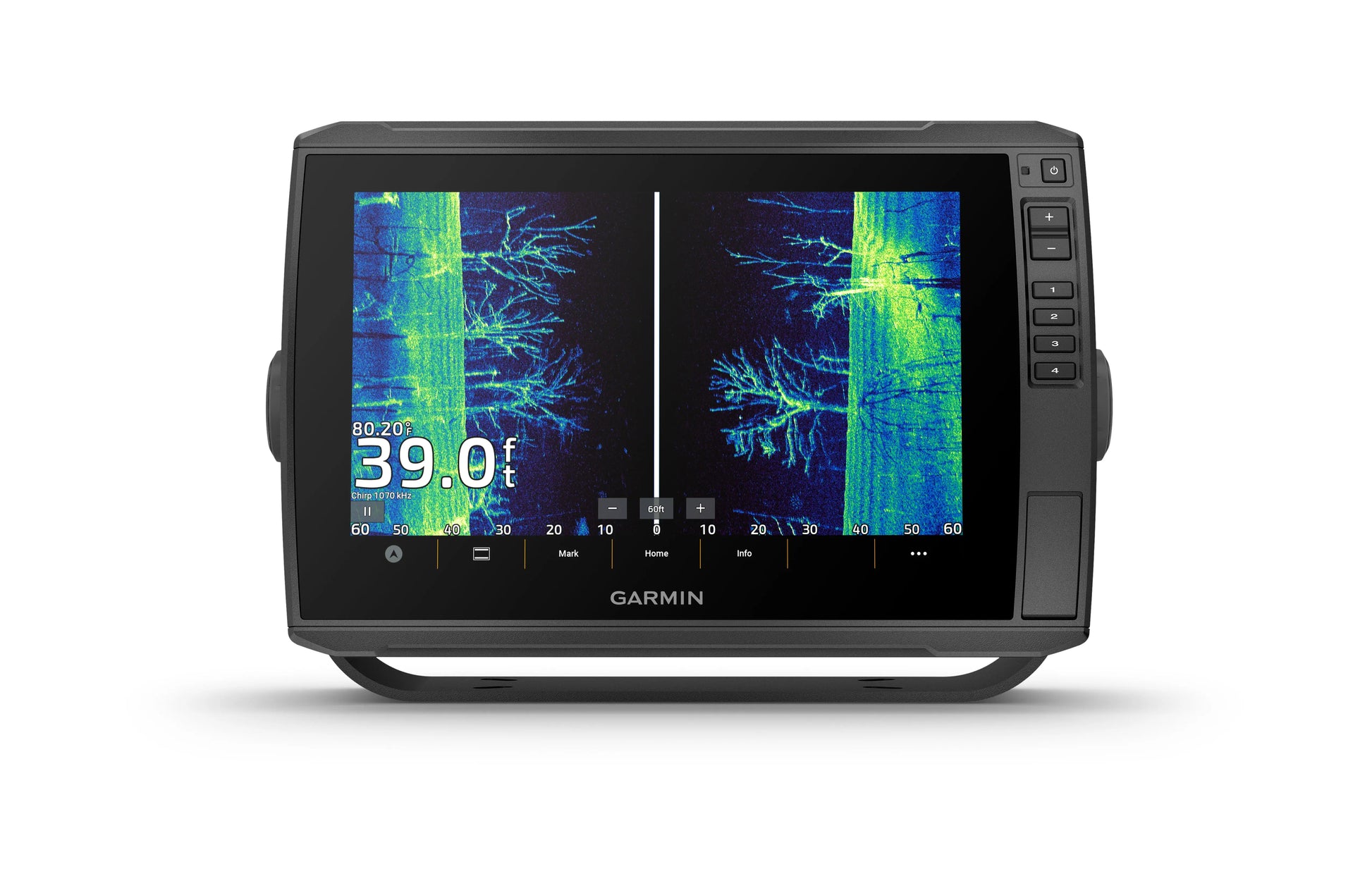

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.

If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar, waypoints and routes — with them.

LiveScope System sonar transducer sold separately Via one-to-one unit wireless connection only LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotter

Specifications

General

DIMENSION
11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)

WEIGHT
4.0 lbs (1.8 kg)

WATERPROOF
IPX7

TOUCHSCREEN
Yes

DISPLAY TYPE
WXGA, IPS

DISPLAY SIZE
8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)

DISPLAY RESOLUTION
1280 x 800 pixels

MOUNTING OPTIONS
Bail or flush

INPUT
Touchscreen with Keyed Assist

Maps & Memory

ACCEPTS DATA CARDS
2 microSD cards

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Sensors

GPS
Yes

GLONASS
Yes

GALILEO
Yes

BEIDOU
Yes

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

NMEA 0183 COMPATIBLE
Yes

SUPPORTS WAAS
Yes

SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS
Yes

Built-in Maps

BUILT-IN AUTO GUIDANCE+
Yes

GARMIN NAVIONICS+ INLAND & COASTAL
Garmin Navionics+ U.S. Inland & Coastal Mapping

TIDE TABLES
yes

Optional Map Support

BLUECHART G3
Yes

BLUECHART G3 VISION
Yes

LAKEVü G3
Yes

LAKEVü G3 ULTRA
Yes

GARMIN NAVIONICS+
Yes

GARMIN NAVIONICS VISION+
Yes

TOPO 100K
Yes

STANDARD MAPPING
Yes

GARMIN QUICKDRAW CONTOURS
Yes

Electrical Features

POWER INPUT
9 to 18 Vdc

TYPICAL CURRENT DRAW AT 12 VDC
2.3 A

MAXIMUM CURRENT DRAW AT 12 VDC
5.0 A

MAXIMUM POWER USAGE AT 10 VDC
34 W

Connections

NMEA 2000® PORTS
1

GARMIN MARINE NETWORK PORTS
2 (large connector)

12-PIN TRANSDUCER PORTS
12-pin scanning sonar

ANT+ (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Sonar Features

DISPLAYS SONAR
Yes

POWER OUTPUT
600 watt

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

CLEARVü
built-in 260/455/800/1000/1200 kHz

SIDEVü
built-in 260/455/800/1000/1200 kHz

PANOPTIX SONAR
Yes

LIVESCOPE
Yes

What's in the Box:

• ECHOMAP Ultra 106sv; Includes Garmin Navionics+ U.S. Inland & Coastal Mapping
• Power/data cable
• Bail mount with quick release cradle
• Protective sun cover
• GT56UHD-TM transducer
• Hardware
• Documentation

Advanced Fishfinding and Mapping Capabilities

The Garmin ECHOMAP Ultra 2 106sv stands out by integrating high-resolution sonar technologies with detailed mapping, optimized for both US and Coastal Canada waters. Featuring the GT56UHD-TM transducer, this device delivers clear Ultra High-Definition scanning, combining CHIRP traditional sonar, CHIRP SideVu, and CHIRP DownVu imaging. This allows anglers to identify fish, underwater structures, and bottom contours with exceptional clarity. Ideal for freshwater and saltwater environments, the Garmin ECHOMAP Ultra equips users with unparalleled data to enhance fishing efficiency and navigation safety.

Large Touchscreen Display and User-Friendly Interface

Garmin designed the ECHOMAP Ultra 2 106sv with an expansive 10-inch touchscreen, providing a bright, anti-glare display that is readable even under direct sunlight. The intuitive interface ensures easy control and quick access to maps, sonar views, and chart data. This touchscreen complements keypad controls for versatile operation, making it suitable for all conditions. Enhanced with USB connectivity and wireless networking, the device supports software updates, smartphone integration, and the ability to download additional maps for customized marine exploration.

Comprehensive Coastal and Inland Mapping

Equipped with preloaded US and Coastal Canada BlueChart g3 coastal maps paired with built-in Garmin Quickdraw Contours software, the ECHOMAP Ultra 2 106sv allows users to create personalized 1-foot contour maps in real time. This feature helps boaters and anglers track underwater terrain and plan routes more effectively. The device supports Auto Guidance for route suggestions, providing safe navigation with detailed views of marinas, harbors, and other critical points. Powered by Garmin’s trusted GPS, this model guarantees reliable positioning and performance on every voyage.
