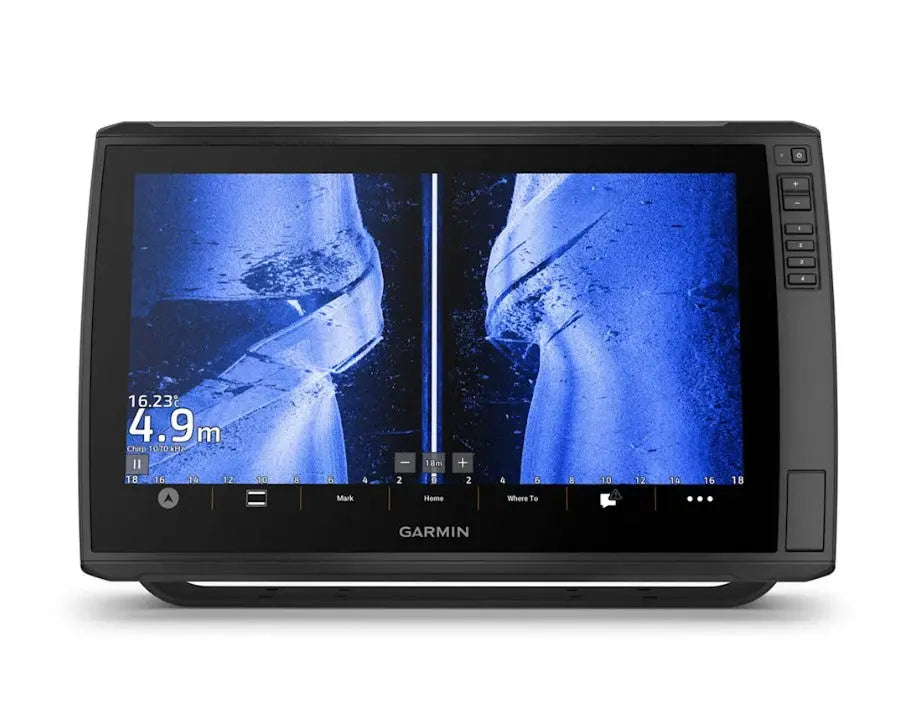

Garmin ECHOMAP Ultra 2 162sv Worldwide Basemap No Transducer

Explore the Garmin ECHOMAP Ultra 2 162sv - Precision Marine Navigation

Garmin ECHOMAP Ultra 2 162sv Worldwide Basemap No Transducer

Model: 010-03385-00

• 16-INCH TOUCHSCREEN WITH KEYED ASSIST
• HDMI OUTPUT CONNECTORS FOR SCREEN SHARING
• BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES
• SUPPORTS LIVESCOPE SONAR AND MORE
• WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES
• MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY

Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+ mapping. Plus, there’s support for the full line of LiveScope sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.

LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface.

HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.

VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.

VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Specifications

General

Dimension
16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)

Weight
9.5 lbs (4.31 kg)

Water rating
IPX7

Touchscreen
Yes

Display Type
FHD, IPS

Display Size
13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)

Display resolution
1920 x 1080 pixels

Mounting Options
Bail or flush

Input
Touchscreen with Keyed Assist

Maps & Memory

Accepts Data Cards
2 microSD cards

Waypoints
5000

Track points
50,000

Tracks
50 saved tracks

Navigation Routes
100

Sensors

GPS
Yes

GLONASS
Yes

Galileo
Yes

BeiDou
Yes

Has built-in receiver
Yes

Receiver
10 Hz

NMEA 2000 Compatible
Yes

NMEA 0183 Compatible
Yes

Supports WAAS
Yes

Supports multi-band, multi-constellation GPS
Yes

Optional Map Support

BlueChart g3
Yes

BlueChart g3 Vision
Yes

LakeVü g3
Yes

LakeVü g3 Ultra
Yes

Garmin Navionics+
Yes

Garmin Navionics Vision+
Yes

TOPO 100K
Yes

Standard Mapping
Yes

Garmin Quickdraw Contours
Yes

Chartplotter Features

AIS
Yes

DSC
Yes

Supports Fusion-Link compatible radios
Yes

ActiveCaptain® compatible
Yes

Supports voice commands
Yes

Sailing Features
Yes

Electrical Features

Power Input
9 to 18 Vdc

Typical current draw at 12 Vdc
3.9 A

Maximum current draw at 12 Vdc
6.6 A

Maximum power usage at 10 Vdc
48 W

Sonar Features

Displays sonar
Yes

Power output
600 W

Traditional sonar (dual frequency/beam)
built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

ClearVü
Built-in 260/455/800/1000/1200 kHz

SideVü
Built-in 260/455/800/1000/1200 kHz

Panoptix sonar
Yes

LiveScope
Yes

Connections

NMEA 2000® ports
1

Video output ports
1 HDMI

Garmin Marine Network Ports
2 (large connector)

12-pin transducer ports
12-pin scanning sonar

What's in the Box:

• ECHOMAP Ultra 162sv
• Power cable
• Bail mount with knobs
• Protective sun cover
• Trim caps
• 8-pin transducer to 12-pin sounder adapter cable
• Hardware
• Documentation

Advanced Garmin Technology for Accurate Navigation

The Garmin ECHOMAP Ultra 2 162sv combines cutting-edge Garmin technology with a user-friendly interface, designed to enhance your marine navigation experience. Featuring a worldwide basemap, this device ensures you have detailed and accurate mapping data wherever you take your vessel. Unlike many other fishfinders on the market, this model offers a large, vibrant 16-inch display that makes interpreting sonar data and maps straightforward, no matter the weather conditions or lighting.

Comprehensive Sonar Capabilities Without a Transducer

Although the Garmin ECHOMAP Ultra 2 162sv comes without a transducer, it supports multiple sonar technologies including CHIRP traditional, CHIRP ClearVü, and SideVü scanning sonars when paired with compatible transducers. This flexibility allows anglers to customize their sonar setup to suit specific fishing environments, making it ideal for both freshwater and saltwater excursions. The device’s high-resolution sonar imaging helps identify fish and underwater structures clearly to optimize your fishing strategy.

Durability and Connectivity for Confident Use

Built to withstand harsh marine environments, the Garmin ECHOMAP Ultra 2 162sv features a rugged design that resists water, dust, and vibration. Its multi-touch screen is responsive even when wet or gloved, providing reliable control on deck. Connectivity options include Wi-Fi and Bluetooth, enabling seamless syncing with Garmin’s mobile apps and compatible devices. This connectivity allows for easy map updates, sharing waypoints, and receiving smart notifications, making the Garmin ECHOMAP Ultra 2 162sv a powerful tool for any serious angler or boat operator.
