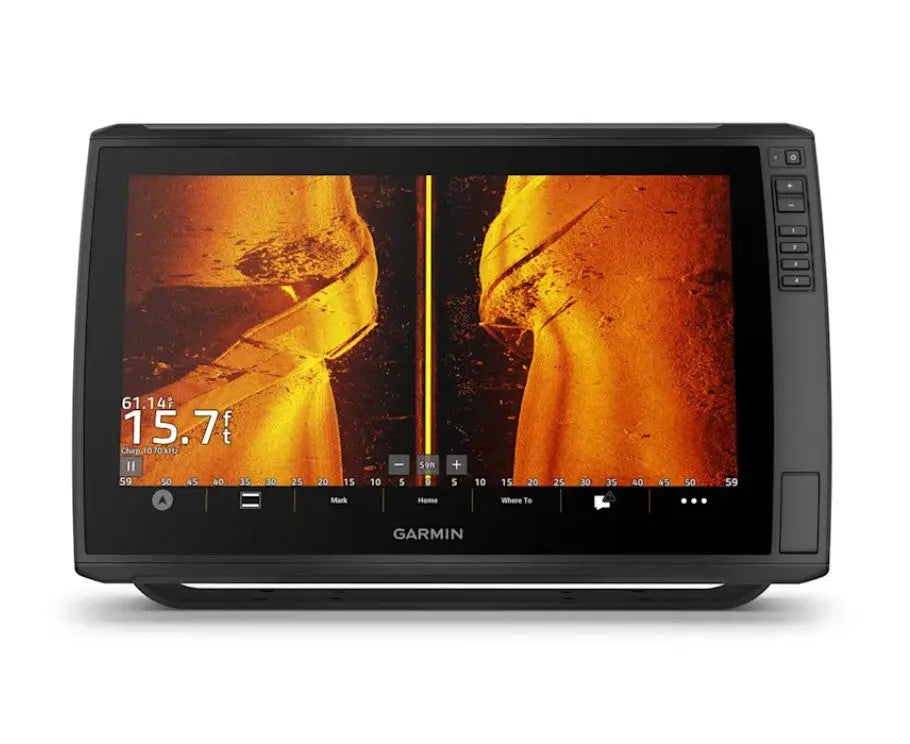

Garmin ECHOMAP Ultra 2 166sv US and Coastal Canada GN+ with GT56UHD-TM Transducer

Explore Advanced Navigation with Garmin ECHOMAP Ultra 2 166sv

Garmin ECHOMAP Ultra 2 166sv US and Coastal Canada GN+ with GT56UHD-TM Transducer

Model: 010-03386-01

• 16-INCH TOUCHSCREEN WITH KEYED ASSIST
• HDMI OUTPUT CONNECTORS FOR SCREEN SHARING
• BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES
• SUPPORTS LIVESCOPE SONAR AND MORE
• WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES
• MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY

Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+ mapping. Plus, there’s support for the full line of LiveScope sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.

LIVESCOPE SONAR SUPPORT: The ECHOMAP Ultra 2 chartplotter series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).

BUILT-IN UHD SONAR: Select models are bundled with a GT56 transducer that provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars for photo-like images of what’s beneath the surface.

PRELOADED CHARTS: Select units come with built-in Garmin Navionics+ mapping, which includes a 1-year subscription for daily updates, depth range shading and more. For added features, Garmin Navionics Vision+ premium mapping is optionally available (sold separately).

HDMI OUTPUT: Use the chartplotter’s HDMI output connector to share your sonar screen with a TV or other external display.

VOICE CONTROL FEATURES: Built-in BLUETOOTH technology enables you to give voice commands to your chartplotter for hands-free control of such features as Force® trolling motor modes, favorite keys and sonar inputs.

VIVID COLOR PALETTES: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

Specifications

General

Dimension
16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm)

Weight
9.5 lbs (4.31 kg)

Water rating
IPX7

Touchscreen
Yes

Display Type
FHD, IPS

Display Size
13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal)

Display resolution
1920 x 1080 pixels

Mounting Options
Bail or flush

Input
Touchscreen with Keyed Assist

Maps & Memory

Accepts Data Cards
2 microSD cards

Waypoints
5000

Track points
50,000

Tracks
50 saved tracks

Navigation Routes
100

Sensors

GPS
Yes

GLONASS
Yes

Galileo
Yes

BeiDou
Yes

Has built-in receiver
Yes

Receiver
10 Hz

NMEA 2000 Compatible
Yes

NMEA 0183 Compatible
Yes

Supports WAAS
Yes

Supports multi-band, multi-constellation GPS
Yes

Optional Map Support

BlueChart g3
Yes

BlueChart g3 Vision
Yes

LakeVü g3
Yes

LakeVü g3 Ultra
Yes

Garmin Navionics Vision+
Yes

TOPO 100K
Yes

Standard Mapping
Yes

Garmin Quickdraw Contours
Yes

Chartplotter Features

AIS
Yes

DSC
Yes

Supports Fusion-Link compatible radios
Yes

ActiveCaptain® compatible
Yes

Supports voice commands
Yes

Sailing Features
Yes

Electrical Features

Power Input
9 to 18 Vdc

Typical current draw at 12 Vdc
3.9 A

Maximum current draw at 12 Vdc
6.6 A

Maximum power usage at 10 Vdc
48 W

Sonar Features

Displays sonar
Yes

Power output
600 W

Traditional sonar (dual frequency/beam)
Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

ClearVü
Built-in 260/455/800/1000/1200 kHz

SideVü
Built-in 260/455/800/1000/1200 kHz

Panoptix sonar
Yes

Panoptix sonar
Yes

Connections

NMEA 2000® ports
1

Video output ports
1 HDMI

Garmin Marine Network Ports
2 (large connector)

12-pin transducer ports
12-pin scanning sonar

BLUETOOTH® pairing
Yes

What's in the Box:

• ECHOMAP Ultra 166sv with Garmin Navionics+
• GT56UHD-TM transducer
• Power cable
• Bail mount with knobs
• Protective sun cover
• Trim caps
• Hardware
• Documentation

Cutting-Edge Fishfinding and Mapping Technology

The Garmin ECHOMAP Ultra 2 166sv is designed to elevate your fishing and boating experience by combining powerful GNSS navigation with advanced sonar capabilities. Equipped with the GT56UHD-TM transducer, this device provides ultra-high-definition scanning sonar, enabling precise underwater imaging of fish and structures. Its detailed US and Coastal Canada maps allow anglers to navigate confidently while accessing live mapping updates. With Garmin’s industry-leading technology, this fishfinder ensures users get a clear, accurate view beneath the water’s surface for smarter, more successful fishing trips.

Intuitive Design and User-Friendly Interface

Garmin prioritizes user experience in the ECHOMAP Ultra 2 166sv with an easy-to-use touchscreen interface that performs reliably even in bright sunlight or wet conditions. The display presents crisp, high-resolution charts and sonar images with quick response times, ensuring smooth operation even in challenging environments. Users can easily customize screen layouts and access multiple data pages at once, improving situational awareness. The combination of vibrant visuals and responsive controls makes navigation accessible for both novice and experienced boaters, helping you focus more on your adventure and less on device operation.

Robust Connectivity and Integration Features

This Garmin model excels in connectivity by supporting wireless networking which allows users to share waypoints, routes, and sonar logs with compatible devices. Bluetooth and Wi-Fi capabilities enable seamless integration with smartphones and other marine electronics for smart notifications, software updates, and data syncing. The Garmin ECHOMAP Ultra 2 supports autopilot control and can interface with NMEA 2000 networks for enhanced vessel system monitoring. These connectivity options provide a comprehensive, integrated maritime experience, ensuring you stay connected while maximizing efficiency on the water.
