Garmin Force Kraken Trolling Motor White 48in Shaft No Tranducer

Garmin Force Kraken Trolling Motor White 48in Shaft No Tranducer

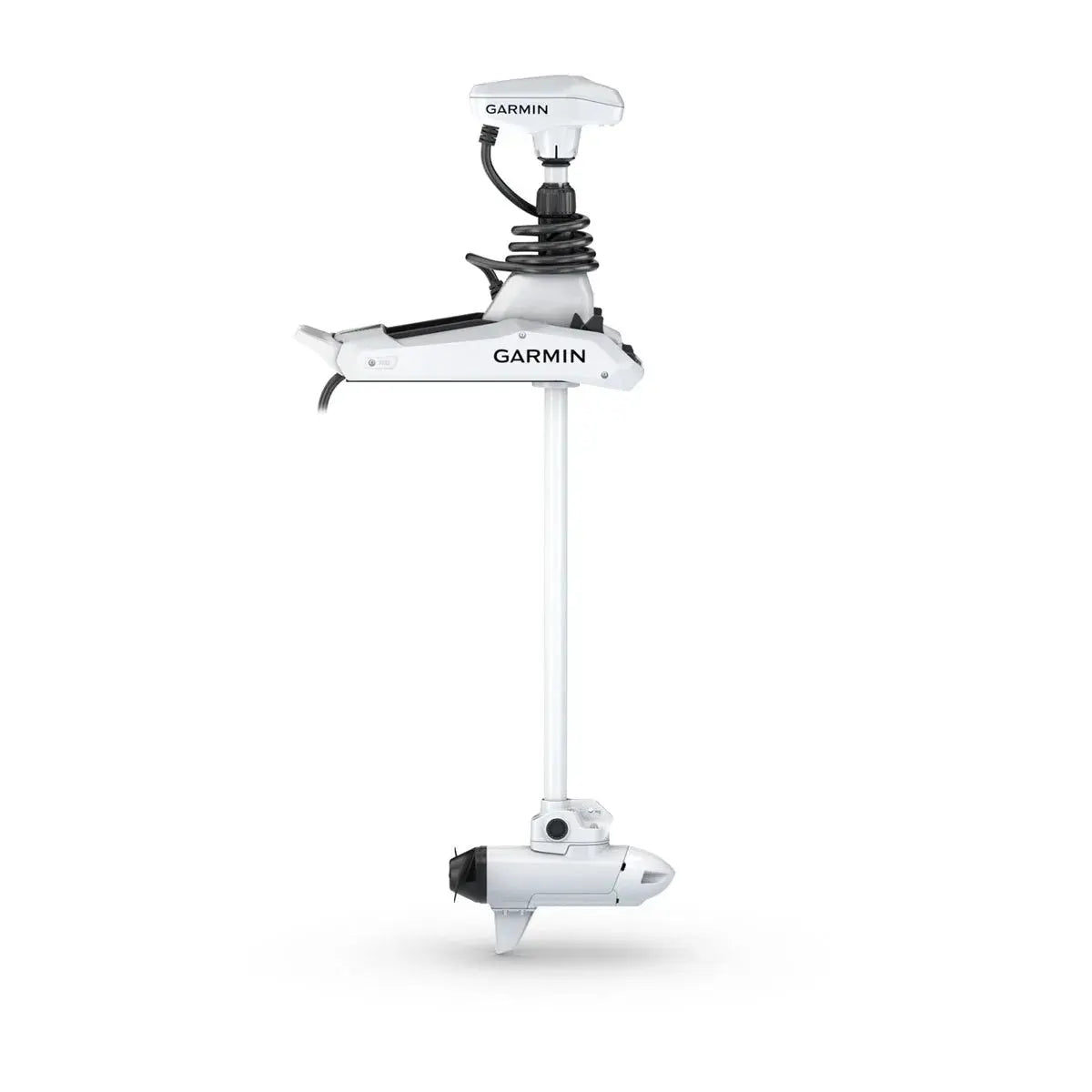

Garmin Force Kraken 48" Shaft White Trolling Motor No Transducer

Model: 010-02574-30

• Most powerful trolling motor on the market with 100 lbs of thrust (in compliance with ISO standard 13342)


• Anchor lock provides our most precise boat positioning, thanks to multi-band GPS and integrated AHRS for heading hold


• Wireless integration with Garmin chartplotters allows you to create routes, patterns and tracks for the trolling motor to follow


• Easy installation where space is limited, thanks to the pivot-style mount


• Included remote allows you to use point and go (using AHRS) and gesture steering to help you steer the boat without setting the rod down


• Sturdy composite shaft is built to endure harsh marine environments


• LiveScope live sonar (sold separately) is easy to add; keeps the deck free of clutter and the cable protected by running the transducer cable through the trolling motor shaft


• Brushless motor is optimized to operate in rough open-water conditions at either 24 or 36 volts, thanks to the powerful and efficient design


• Clear sonar returns with extremely low levels of unwanted noise


• Efficient brushless motor design has longer run times than brushed motors and allows you to focus on fishing and not running out of battery


• Don’t spook the fish; motor is extremely quiet above and below the water


• Designed for saltwater with advanced corrosion protection

There’s a new legend to behold. Harness the power of the Force® Kraken trolling motor, the most powerful trolling motor on the market (in compliance with ISO standard 13342). It’s designed for deep V hulls and saltwater boats where bow space is limited. Once you’ve found the fish, keep the boat where it belongs with our most precise anchor lock technology. LiveScope live sonar (sold separately) is easy to add, thanks to the ability to run the cable through the trolling motor shaft. The sturdy pivot-style mount frees up space on the deck. Draw a route with wireless chartplotter integration, and let the trolling motor automatically navigate the route while you fish. The included remote makes speed and heading adjustments easy from anywhere on the boat. And with advanced corrosion protection, it’s built for oceans and brackish water.

Specifications

General

COLOR
white

FOR USE IN
freshwater, brackish water and saltwater

MOUNT STYLE
pivot-style mount

MAX THRUST
100 lbs per ISO 13342 using high efficiency propeller at 36 V
80 lbs per ISO 13342 using high efficiency propeller at 24 Vdc

VOLTAGE
24V_36V

ELECTRIC STEERING
Yes

BUILT-IN HEADING SENSOR
Yes

BUILT-IN GPS
yes (dual frequency GPS)

WARRANTY
3-year, limited lifetime on shaft

WATER RATING
IPX7

MOUNTING LOCATION
bow

WIRELESS REMOTE
yes (included)

FOOT PEDAL COMPATIBLE
yes

BATTERY INDICATOR
Yes

VARIABLE SPEED CONTROL
yes (20 steps)

LIGHTED DIRECTION INDICATOR
Yes

DECK STABILIZER
No

QUATIX REMOTE CONTROL SUPPORTED
Yes

Sonar Features

LIVESCOPE CABLE INTEGRATION
yes (LiveScope transducer and Kraken Mounting Bracket purchases required)

Autopilot Features

ROUTE FOLLOWING
Yes

ANCHOR LOCK
Yes

ANCHOR LOCK JOG
Yes

HEADING HOLD
Yes

CRUISE CONTROL
Yes

GESTURE FEATURES
yes (manual+, heading hold+, jog+)

Foot Pedal Features

DIMENSIONS
12" L x 9" W x 4 1/2" H

WIRELESS COMMUNICATION
Yes

POWER INSTALLATION
12V/24V/36V wired or battery powered (2 AA)

AA BATTERY LIFE
1 full season

WATER RATING
IPX7

ADJUSTABLE PEDAL RESISTANCE
Yes

Remote Features

DISPLAY SIZE
1.2" (30.4 mm) diameter

DISPLAY RESOLUTION
240 x 240 pixels

DISPLAY TYPE
color, sunlight-visible, transflective memory-in-pixel (MIP)

CHARTPLOTTER USER-PROGRAMMABLE KEYS
Yes

AUTOPILOT FEATURE CONTROL
Yes

WATER RATING
IPX7

BATTERY LIFE
typical use with backlight at low, 43 weeks

FLOATS
Yes

What's in the Box:

• 48" White Shaft Force Kraken Motor


• Remote Control


• High-efficiency Propeller


• Assembly and Mounting Hardware


• Documentation
