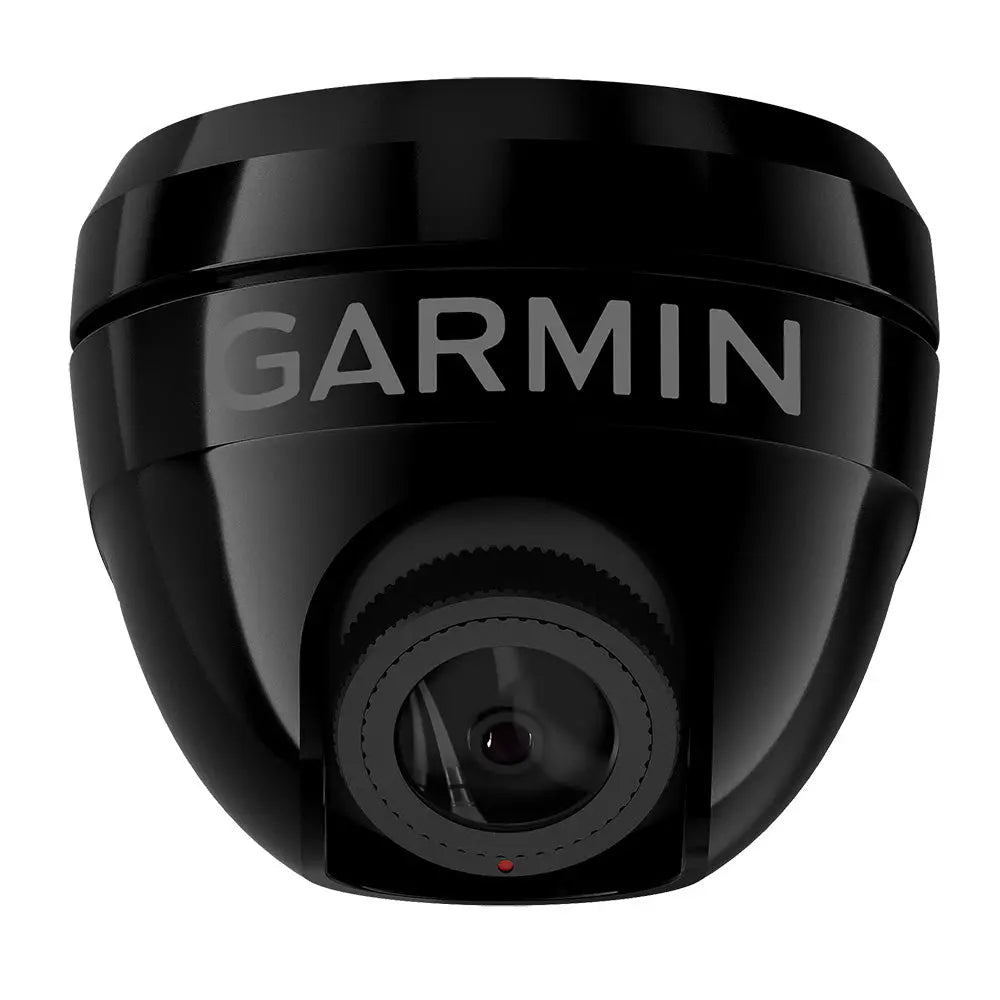

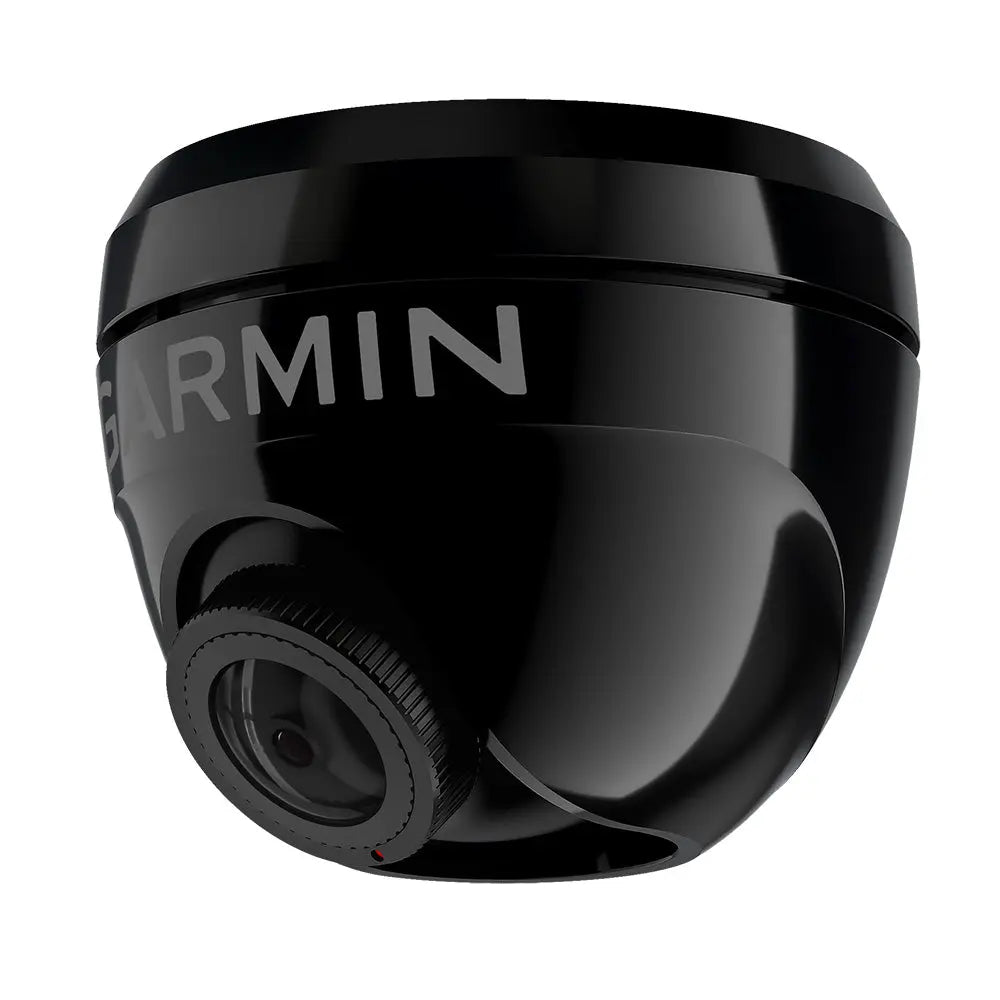

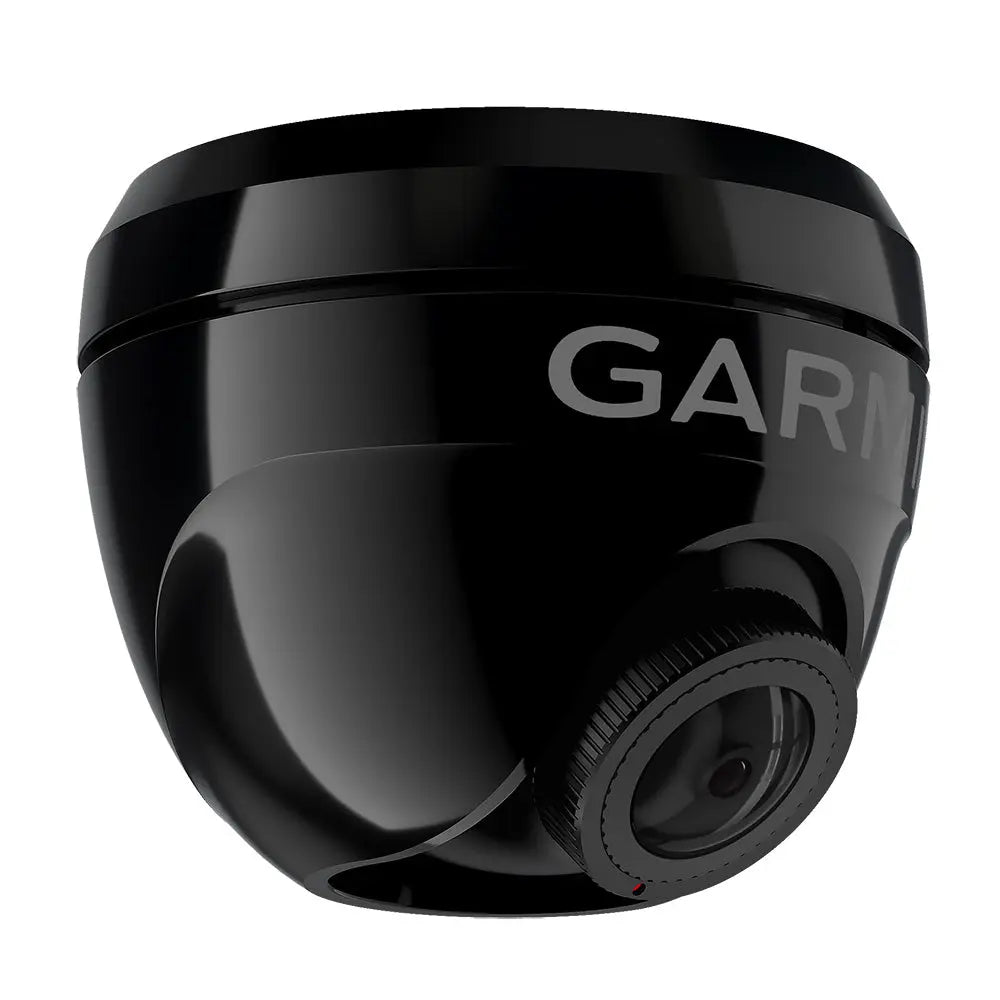

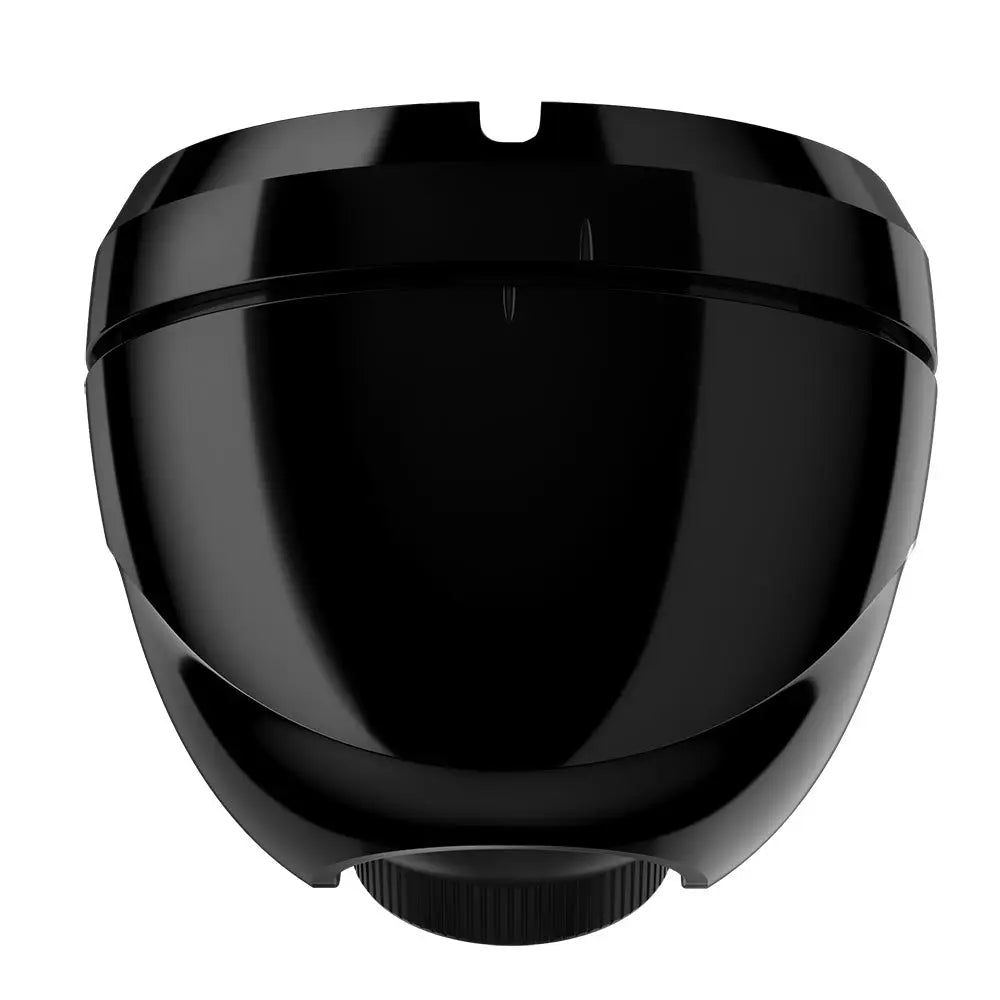

Garmin GC 245 Surface Mount Camera - Black for Marine Docking and Navigation

GC 245 Surface Mount Camera - Black

BRING VISION TO YOUR HELM

Now theres a high-resolution marine camera that takes the stress out of docking your boat. Enhance proximity awareness and confidence in close quarters with the GC 245 surface-mount camera.

• Distance markers specific to your boat¹ and user defined guidance lines
• 1080p high-resolution output²
• See camera feeds in fisheye or standard view; birdseye view also available1
• Full integration on the Garmin marine network or Garmin Bluenet network

Guidance Lines

Set up your own guidance lines for more confidence avoiding obstacles in the marina.

Distance Markers

Use distance markers calibrated to your vessel by the boatbuilder so you know how far away you are from objects

Two Mounting Options

Installation is simple, and the camera can be mounted with the dome up or down.

Three Camera Views

Get the right perspective with FishEye and standard views with impressive low-light performance; GC 255 is also available with BirdsEye camera view¹.

Multiple Camera Feeds

See up to four camera feeds simultaneously on your compatible MFD; watch the video on networked chartplotters, or set it up on a custom combo page.

See What You Want

Take a closer look with digital zoom, or get a different perspective with digital pan.

In The Box:

• GC 245 surface mount camera
• GVA 10 with integrated power and network cables
• Network adapter cable (500 mm)
• Video coaxial cable (8 m)
• Mounting hardware
• Documentation

Specifications:

• Unit dimensions: 2.4 x 2.4 x 2.2 (6.1 x 6.1 x 5.1 cm)
• Weight: 3.25 oz (92 g)
• Hardwire power: 12V/24V
• Operating current: 300 mA at 12VDC; 200 mA at 24VDC
• Power consumption: 4.5 W
• Connection to chartplotter: IP
• Versatile mounting options: yes (ball-up or ball-down)
• Rugged housing: yes
• Setup: plug-and-play
• Water rating: IPX7
• Video resolution: 1920 x 1080 pixels²
• Video output: H.264 over GMN and BlueNet
• Images: Standard and reverse
• Selectable views: FishEye, standard, BirdsEye (OEM calibrated)
• Augmented reality features: Distance markers (OEM calibrated) and guidance lines (user setup)
• Viewing angle (H/V): 160H/90V
• Operating temperature: -20C to +60C
• Scanning system: progressive scan
• Day/night operation: RGB mode full-time

¹Professional calibration required

²1080p resolution available on select chartplotters only

Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.

The Garmin GC 245 Surface Mount Camera in black is designed to enhance your marine navigation and docking confidence with high-resolution visuals and versatile features. This camera provides a clear 1080p video feed, allowing you to see detailed views of your surroundings in real-time. Its full integration with Garmin marine networks ensures seamless connectivity, enabling multiple camera feeds to be displayed simultaneously on compatible multifunction displays (MFDs). Whether you're maneuvering in tight marinas or approaching a dock, the GC 245 offers a reliable view that helps prevent collisions and obstacles. Its rugged IPX7-rated housing withstands harsh marine environments, making it suitable for day and night operation in temperatures ranging from -20°C to +60°C. The camera supports various viewing modes, including fisheye, standard, and Birdseye perspectives, with digital zoom and pan features for closer inspection or different angles. Installation is straightforward with versatile mounting options, allowing the camera to be mounted dome-up or dome-down depending on your preference. The device also offers customizable guidance lines and distance markers calibrated specifically to your vessel, aiding in precise docking and obstacle avoidance. This setup includes necessary mounting hardware, cables, and documentation to ensure a plug-and-play experience. With a compact design and low weight, the Garmin GC 245 is an essential addition to any serious boater seeking enhanced visibility and safety at sea.

Features:

• High-resolution 1080p video output provides clear, detailed visuals

• Multiple viewing modes including FishEye, standard, and BirdsEye for optimal perspectives

• Full integration with Garmin marine and BlueNet networks allows up to four camera feeds simultaneously

• Customizable guidance lines and OEM-calibrated distance markers improve docking accuracy

• Versatile mounting options with dome-up or dome-down installation for flexible setup

• Rugged IPX7-rated waterproof housing withstands harsh marine conditions

• Digital zoom and pan functions enable closer inspection and different viewing angles

• Day/night RGB operation ensures visibility in varying light conditions

• Compact, lightweight design with easy plug-and-play installation

• Operates on 12V or 24V power sources, suitable for diverse marine setups
